Square D QDL22110 - 110A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU QDL22110
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D QDL22110 - 110A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU QDL22110
Select Item Condition
Earn 721 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D QDL22110 - 110A 2 Pole Molded Case Circuit Breaker

New

$721.03 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

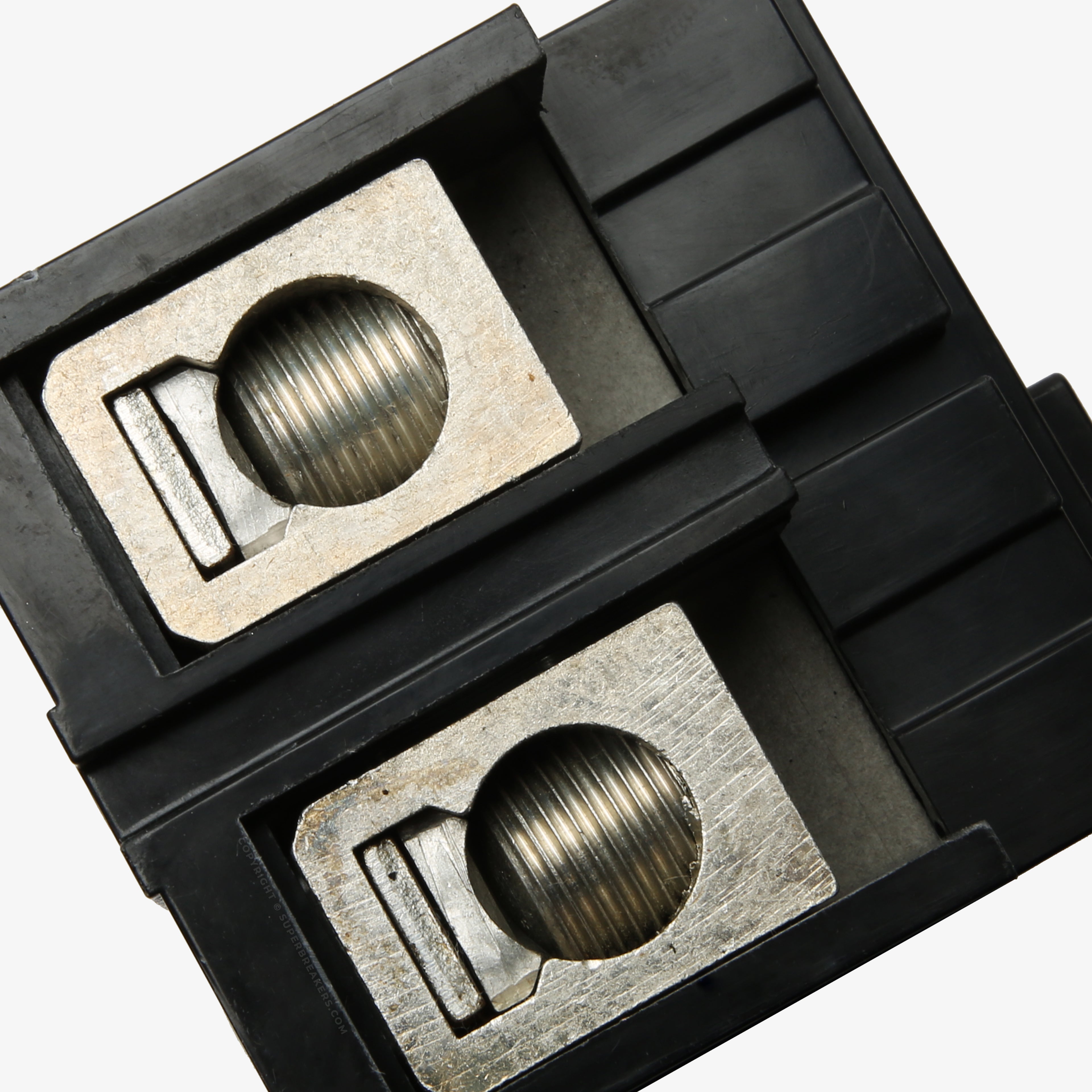

Engineered for commercial use, the Square D QDL22110 is a 2-pole, 110A MCCB from the PowerPacT Q-Frame family. It provides thermal-magnetic protection with LI trip functions. This unit mount breaker features line and load lugs. It installs into Square D NQ panelboards and switchboards, serving as a replacement for legacy Q2L2110 breakers. Rated at 25kAIC at 240VAC, it ensures robust fault clearing. The unit is HACR rated and includes a push-to-trip mechanism.

Specifications

Brand Square D
Series QDL
Part Number QDL22110
Amperage 110A
Voltage 208Y/120VAC, 240VAC
Poles 2
Phase 1
AIC Rating 25kA @ 208Y/120VAC, 25kA @ 240VAC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 4 AWG - 300 kcmil (Al/Cu)
Max Wire 300 kcmil
Min Wire 4 AWG
Available Options Padlock Attachment
Accessories Line and Load Lugs Included
Standards CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489
Approval CSA, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, 80% Rated, Non-Interchangeable Trip, Reverse Feed, Mercury Free, PVC Free
