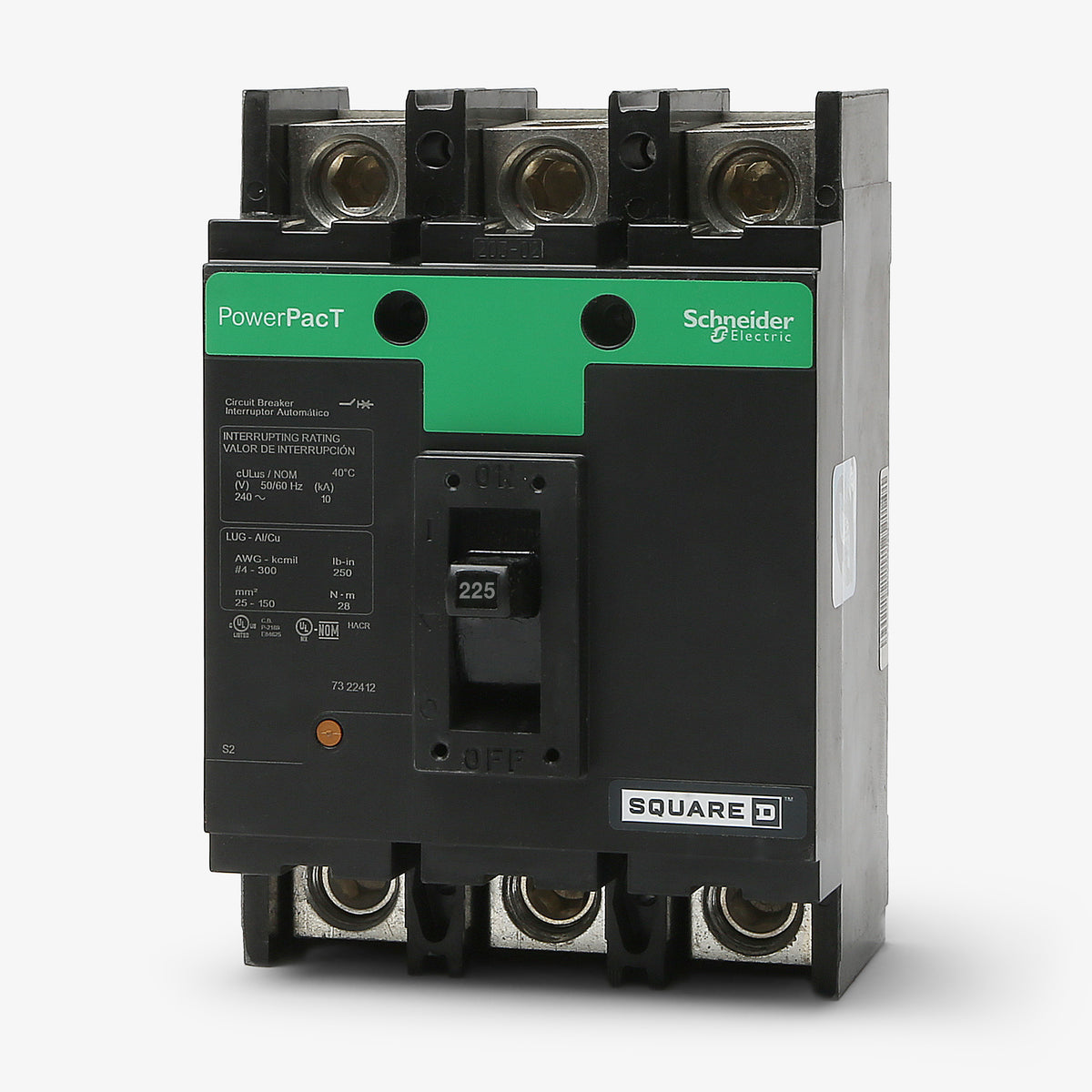

Square D QDL32225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
QDL32225
Molded Case Circuit Breaker
Brand
Square D
SKU
QDL32225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

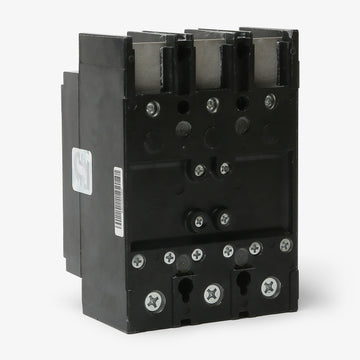

Square D QDL32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDL32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDL32225 |
| Series | QDL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Push-To-Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, Halogen Free, Visual Trip Indicator |
Quantity
Square D QDL32225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDL32225-R |
| Series | QDL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Push-To-Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, Halogen Free, Visual Trip Indicator |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, this 225A molded case circuit breaker belongs to the Square D PowerPacT Q-Frame lineup. The unit mount configuration allows for straightforward installation into Square D NQ panelboards, switchboards, and individual enclosures. It also functions as a direct cross-reference for replacing older Q2L3225 breakers. Delivering a 25kAIC interrupt rating at 240V, it utilizes fixed thermal-magnetic trip technology (LI) for consistent performance.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDL32225 |
| Series | QDL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Push-To-Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, Halogen Free, Visual Trip Indicator |
Product FAQs
8 answersWhat panels and enclosures are compatible with the QDL32225?
This unit-mount breaker is designed for installation in Square D NQ panelboards, switchboards, and individual enclosures.
Can the QDL32225 replace older Square D breakers?
Yes, the PowerPacT Q-frame QDL32225 serves as a direct cross-reference replacement for the obsolete Q2L3225 circuit breaker.
What is the difference between Square D QDL, QGL, and QJL breakers?
These are all PowerPacT Q-frame breakers that share the same physical dimensions but have different interrupting ratings. The QDL is rated at 25kAIC at 240V, while the QGL is rated at 65kAIC, and the QJL is rated at 100kAIC.
Does the QDL32225 plug onto the panel bus?
No, this is a unit-mount, feed-thru circuit breaker. It does not plug onto a bus bar. It requires a cabled connection using the included line and load lugs.

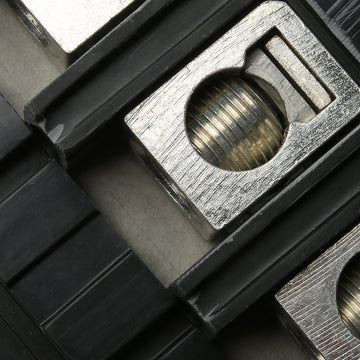

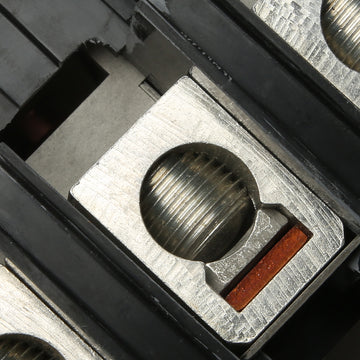

What wire sizes are accepted by the factory lugs on the QDL32225?
The included line and load lugs accept aluminum or copper wire ranging from 4 AWG to 300 kcmil.
Is the QDL32225 rated for use on 480V systems?
No, this breaker has a maximum voltage rating of 240VAC. It cannot be used on 480V or 600V electrical systems.
Is this breaker 100% rated for continuous current?
No, the QDL32225 is a standard 80% rated circuit breaker. Continuous loads should not exceed 80% of its 225A rating, which is 180 amps.
Can the QDL32225 be used as a main breaker?
Yes, this breaker is frequently used as a main breaker in Square D NQ panelboards when paired with the appropriate main breaker mounting kit.
