Square D QDP22225TM Molded Case Circuit Breaker
- 225A
- 2 Pole
- Bolt-On
Square D
QDP22225TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QDP22225TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

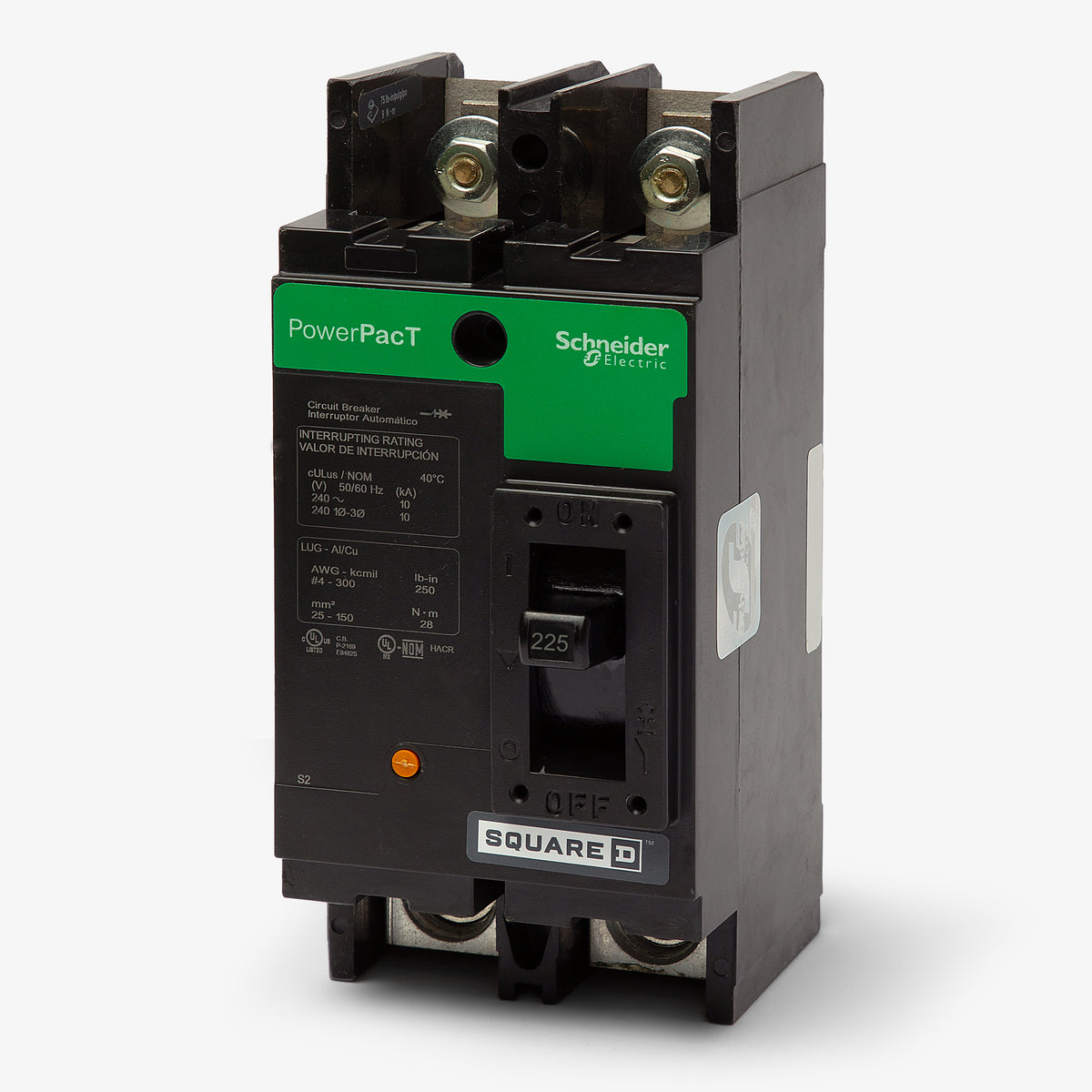

Square D QDP22225TM - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, this 225A PowerPacT Q-Frame breaker ensures reliable thermal-magnetic trip performance. The two-pole device mounts into EZ Meter-Pak centers, panelboards, and switchboards, serving as a functional replacement for the older Q22225 model. With a 25kA short-circuit current rating at 240VAC, it features a trip-free mechanism, quick-make/quick-break operation, and the signature Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDP22225TM |
| Series | QDP |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhat older Square D circuit breaker does the QDP22225TM replace?
The QDP22225TM serves as a direct functional replacement for the legacy Q22225 molded case circuit breaker.
What equipment is the QDP22225TM designed to be installed in?
This unit-mount PowerPacT Q-Frame breaker is frequently used as a tenant main breaker in Square D EZ Meter-Pak meter centers. It is also compatible with select Square D panelboards and switchboards.
What does the TM suffix indicate on the QDP22225TM breaker?
The TM suffix specifies the terminal configuration. It features factory-installed studs with nuts and washers on the ON end (line side) and standard box lugs on the OFF end (load side). The load lugs accept 4 AWG to 300 kcmil aluminum or copper wire.
Is the QDP22225TM rated for 100 percent continuous current?
No, this is a standard 80 percent rated circuit breaker. Continuous loads must not exceed 180 amps, which is 80 percent of its 225A rating.
Does this breaker include a tripped circuit indicator?
Yes, it features the Square D Visi-Trip indicator. This provides a highly visible red flag when the breaker has tripped, allowing for faster and safer troubleshooting.
