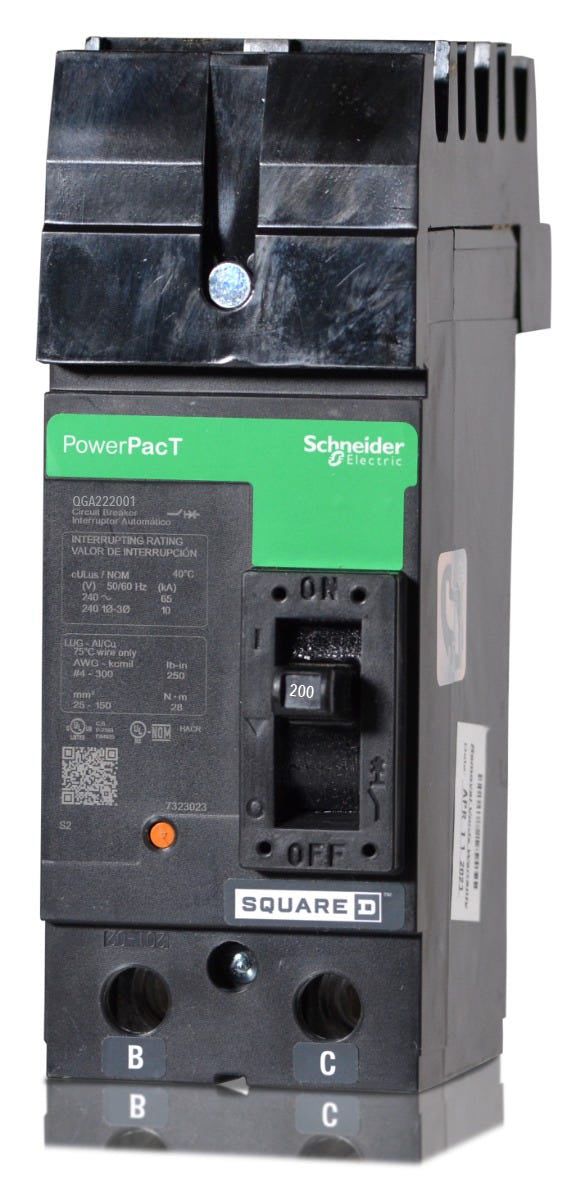

Square D QGA222001 Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
QGA222001
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA222001
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA222001 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGA222001 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA222001 |
| Series | QGA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AB, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Square D QGA222001 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QGA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AB, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
200A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Operating as a core component in industrial power distribution, this 200A breaker offers fixed thermal and magnetic trip functions. Installation into Square D I-Line panelboards is streamlined by the integrated AB phase connection. Electrical contractors frequently utilize this model as a substitute for the obsolete Q22200AB. Capable of interrupting 65kA at 240V, the unit provides substantial short-circuit protection and incorporates Square D's signature Visi-Trip mechanism.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA222001 |
| Series | QGA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AB, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat type of panelboards is the QGA222001 compatible with?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It utilizes a specific plug-in mounting bracket and will not fit in standard NQ, NF, or QO load centers.
What does the 1 suffix in the QGA222001 catalog number indicate?
The 1 at the end of the catalog number specifies that this 2-pole breaker is configured for an AB phase connection on the I-Line bus stack.
Can the QGA222001 replace older Square D circuit breakers?
Yes, electrical contractors frequently use the QGA222001 as a direct, modern replacement for the obsolete Q22200AB I-Line circuit breaker.
What does the G in the QGA222001 catalog number signify?
In the Square D PowerPacT Q-Frame series, the G designates the interrupting capacity tier. It indicates that the breaker has a high interrupting rating of 65kAIC at 240V AC.
How are connections made on the QGA222001?
The line side features an I-Line plug-in jaw that snaps directly onto the panelboard bus stack, eliminating the need for line-side wiring. The load side utilizes mechanical lugs that accept 4 AWG to 300 kcmil aluminum or copper conductors.
Are the trip settings on the QGA222001 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit protection settings are factory fixed and cannot be adjusted in the field.
