Square D QGA222002 Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
QGA222002
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA222002
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

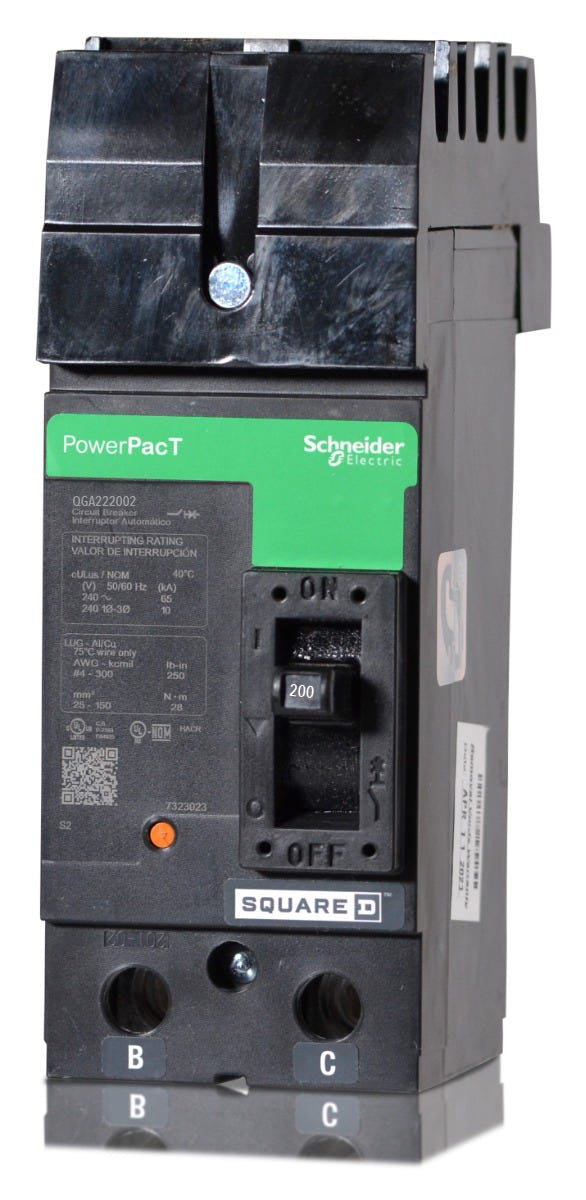

Square D QGA222002 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the QGA222002 is a 200A, 240VAC molded case circuit breaker from the PowerPacT Q-Frame family. It features an AC phase connection and delivers a 65kAIC interrupting rating. This breaker mounts into Square D I-Line panelboards and switchboards, utilizing a plug-on line connection. It is fully compatible as an exact substitute for older Q22200AC models. The unit features fixed thermal-magnetic trip technology for reliable LI protection and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA222002 |
| Series | QGA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AC, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the QGA222002 circuit breaker?
This PowerPacT Q-frame breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-on connection that mounts directly to the bus stack.
Can the QGA222002 replace older Square D circuit breakers?
Yes, the PowerPacT Q-frame circuit breaker serves as a direct replacement for legacy Square D Q2 Series devices. It is an exact substitute for the older Q22200AC model.
How is the QGA222002 installed into an I-Line panelboard?
The breaker plugs directly onto the I-Line bus stack. Align the mounting bracket with the slots in the mounting pan, use a flat-blade screwdriver on the racking mechanism to fully seat the breaker against the bus bars, and tighten the retaining screw to secure it in place.
What wire sizes are accepted by the load lugs on the QGA222002?
The load side box-type lugs accept aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
What type of trip unit is equipped on the QGA222002?
It features a fixed thermal-magnetic trip unit providing long-time and instantaneous (LI) overcurrent protection. Both the thermal and magnetic trip elements are fixed and non-adjustable.
Is the QGA222002 suitable for HVAC equipment?
Yes, this PowerPacT Q-frame breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment protection.
