Square D QGA222004 Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
QGA222004
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA222004
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

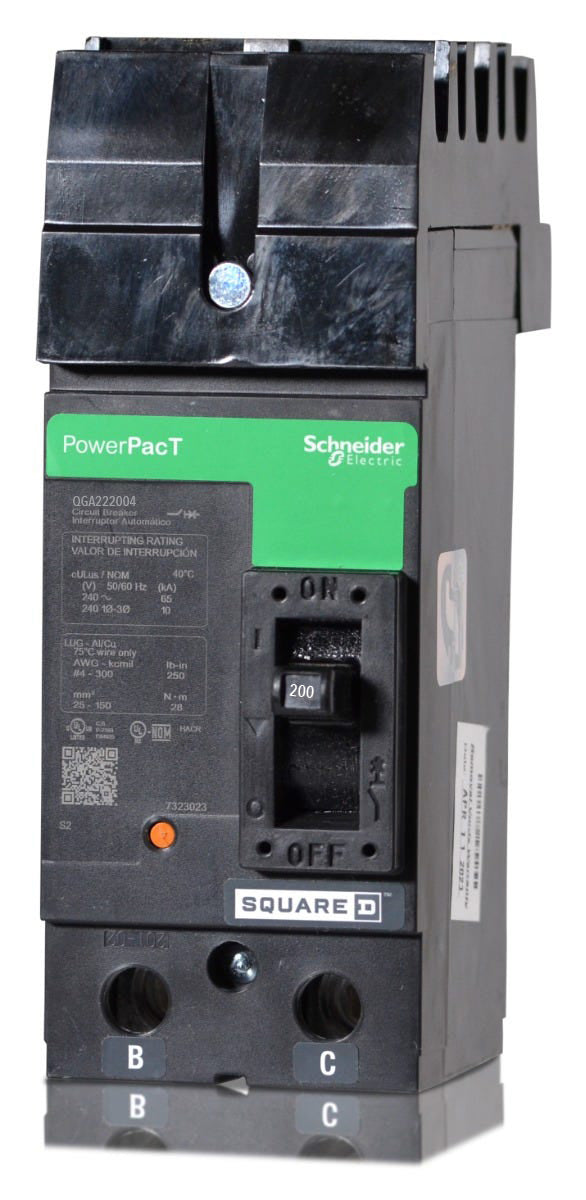

Square D QGA222004 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Designed for robust power distribution, the QGA222004 is a 200A, 2-pole molded case circuit breaker from the Square D PowerPacT Q-Frame series. It operates at 240VAC with a BC phase connection and provides a 65kAIC rating. This unit installs into Square D I-Line panelboards, including HCN, HCM, and HCW series, as well as switchboards. It serves as an exact replacement for the discontinued Q22200 model. Utilizing fixed thermal-magnetic trip technology, it ensures precise LI protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA222004 |
| Series | QGA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards (HCN, HCM, HCW, HCWM), Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment, Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Phase Connection BC, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards accept the QGA222004 circuit breaker?
It installs directly into Square D I-Line panelboards, specifically HCN, HCM, HCW, and HCWM types, as well as I-Line switchboards.
How does the QGA222004 mount into the panel?
It utilizes an I-Line plug-in mounting system. The breaker jaws engage directly onto the panelboard bus stack, and it is secured by an integrated mounting bracket.
What wire sizes are accepted by the lugs on this breaker?
The factory-installed lugs accept wire gauges from 4 AWG up to 300 kcmil.
Is the QGA222004 suitable for use on 480V systems?
No. This Q-Frame breaker is rated for a maximum of 240VAC and cannot be used in 480V or 277/480V applications.
What is the difference between the QGA222004, QDA222004, and QJA222004?
The difference is the interrupting rating. The QGA222004 is rated at 65kA at 240VAC. The QDA222004 is rated at 25kA, and the QJA222004 is rated at 100kA. All three share the same physical dimensions and I-Line mounting.
Can the trip settings be adjusted on the QGA222004?
No. This breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip functions are factory-set and cannot be adjusted in the field.
