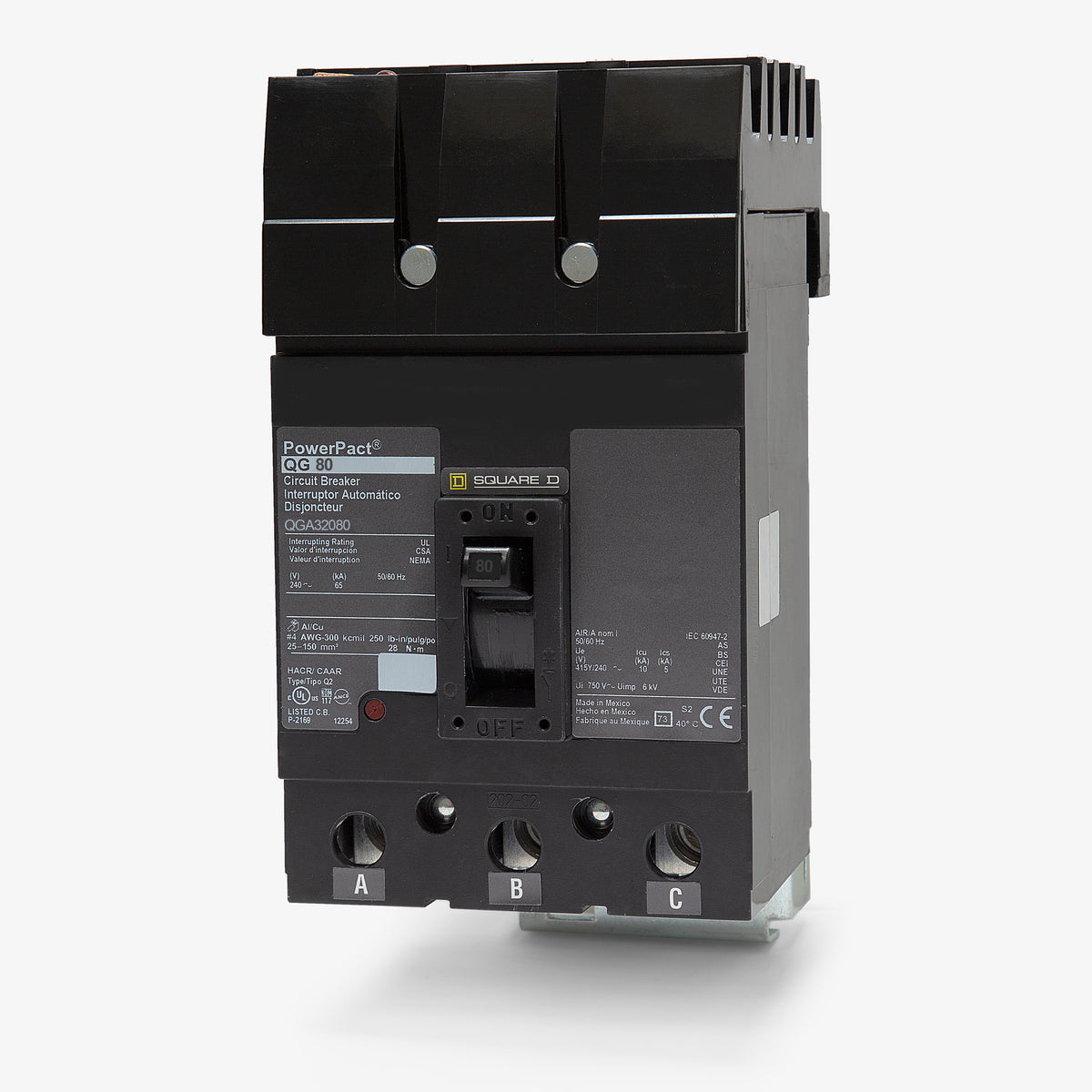

Square D QGA32080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- I-Line
Square D
QGA32080
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA32080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA32080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGA32080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QGA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards (HCN, HCM, HCW, HCWM), Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | ANCE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection ABC, 80% Rated |
Quantity
Square D QGA32080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QGA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards (HCN, HCM, HCW, HCWM), Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | ANCE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection ABC, 80% Rated |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty applications, the Square D QGA32080 is an 80A, 3-pole molded case circuit breaker from the PowerPacT Q series. It delivers consistent performance for commercial and industrial power distribution networks. Designed for seamless integration, it installs into Square D I-Line panelboards (HCN, HCM, HCW, HCWM) and switchboards. It is also a direct substitute for the older Q23080 model. This 80% rated breaker offers a 65kAIC rating at 240VAC and fixed thermal-magnetic trip.Specifications
| Brand | Square D |
|---|---|
| Series | QGA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards (HCN, HCM, HCW, HCWM), Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | ANCE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection ABC, 80% Rated |
Product FAQs
7 answersWhat panelboards are compatible with the QGA32080 circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards, including the HCN, HCM, HCW, and HCWM series, as well as I-Line switchboards.
How does the QGA32080 connect to the electrical panel?

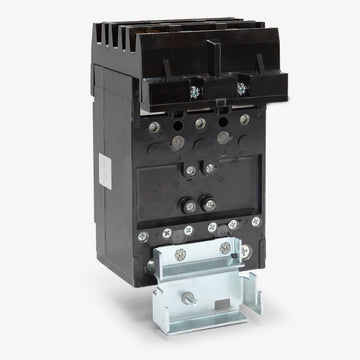

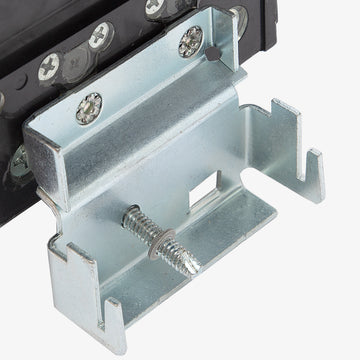

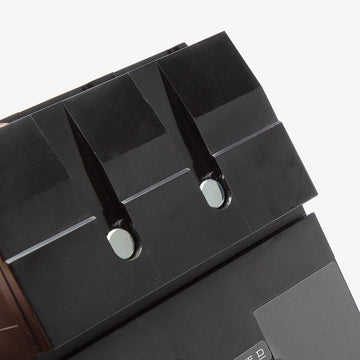

It utilizes an I-Line plug-on connection for the line side, which snaps directly onto the panel bus, and features mechanical lugs on the load side for wire terminations.
What is the recommended lug torque for the load side terminals?
The load side mechanical lugs should be torqued to 248 lb-in (28 N.m) when using 4 AWG to 300 kcmil aluminum or copper conductors.
Can this PowerPacT Q-Frame breaker replace older legacy models?
Yes, the PowerPacT Q-Frame line is a direct replacement for legacy Square D Q2 Series circuit breakers.
What does the G in the QGA part number signify?
In the Square D PowerPacT Q-Frame nomenclature, the G indicates the interrupting capacity. A QG breaker provides a 65kAIC rating at 240VAC, whereas other letters like B, D, or J indicate different short circuit ratings.
What phase configuration does the I-Line connection use?
By default, this 3-pole breaker features a standard ABC phase jaw configuration for mounting onto the I-Line bus.
Can the operating handle be locked out for maintenance?
Yes, a field-installable handle padlock attachment is available for locking the breaker in the ON or OFF position to support safety procedures.
