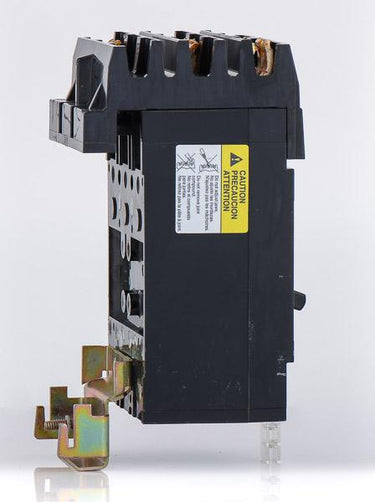

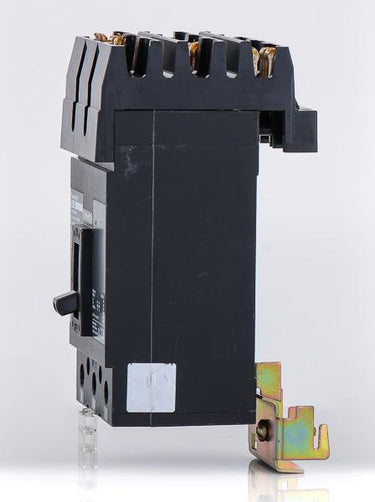

Square D QGA32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
QGA32100
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGA32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA32100 |
| Series | QGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Quantity
Square D QGA32100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA32100 |
| Series | QGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Similar Items
3 Pole Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description

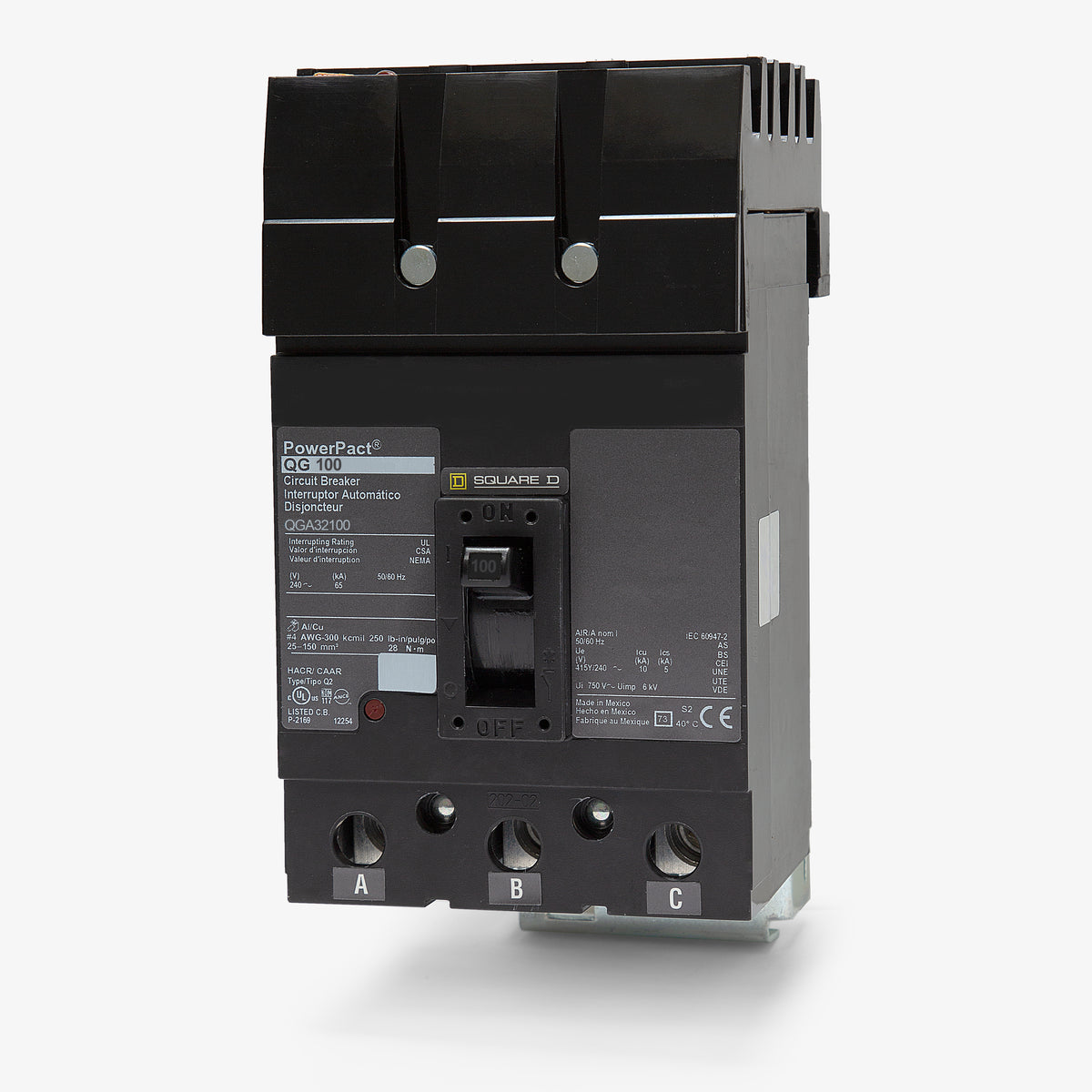

Designed for heavy-duty industrial applications, the QGA32100 is a 100A, 3-pole molded case circuit breaker from the PowerPacT Q-Frame series. It mounts into Square D I-Line panelboards and switchboards, and acts as an exact substitute for older Q23100 models. The breaker delivers fixed thermal-magnetic (LI) protection with a robust 65kAIC interrupting capacity at 240VAC. It also includes load side lugs and a Visi-Trip indicator for fast troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA32100 |
| Series | QGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
8 answersWhat panelboards are compatible with the QGA32100 circuit breaker?
This breaker is designed for use in Square D I-Line panelboards and switchboards. It features an I-Line plug-on connection on the line side and mechanical lugs on the load side.

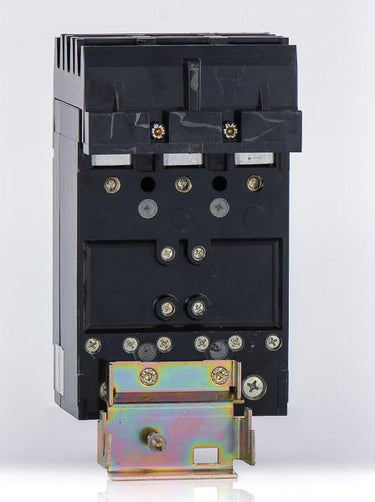

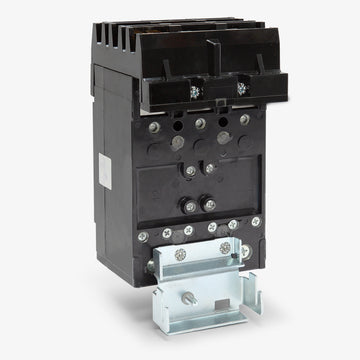

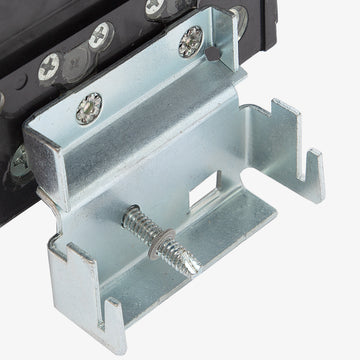

How does the QGA32100 mount into the panel?
It utilizes the Square D I-Line mounting system. The line side plugs directly onto the panelboard busbars, while the load side uses mechanical lugs for wire termination.
Can the QGA32100 replace older Square D circuit breakers?
Yes, the QGA32100 serves as a direct replacement for older Q23100 model circuit breakers in I-Line panelboards.
What wire sizes do the load lugs on the QGA32100 accept?
The factory-installed mechanical lugs accept wire gauges from 4 AWG to 300 kcmil.
What does the G in the QGA32100 catalog number signify?
In the Square D PowerPacT Q-Frame series, the G designates the interrupting rating. The QGA32100 has a 65kA interrupting capacity at 240V AC.
Are the trip settings on the QGA32100 adjustable?
No, this breaker features a fixed thermal and fixed magnetic (LI) trip unit. The trip settings cannot be adjusted in the field.
Does the QGA32100 feature a push-to-trip button?
Yes, this PowerPacT Q-Frame breaker includes an integral push-to-trip button on the cover, allowing you to manually trip the breaker to verify the mechanism is working correctly.
How can I identify if the QGA32100 has tripped?
The breaker features a Visi-Trip indicator. When the breaker trips, the handle moves to a center position and a highly visible red indicator appears, allowing for fast troubleshooting in the panel.
