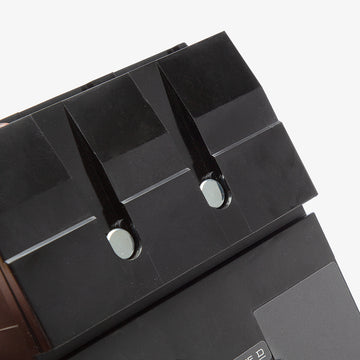

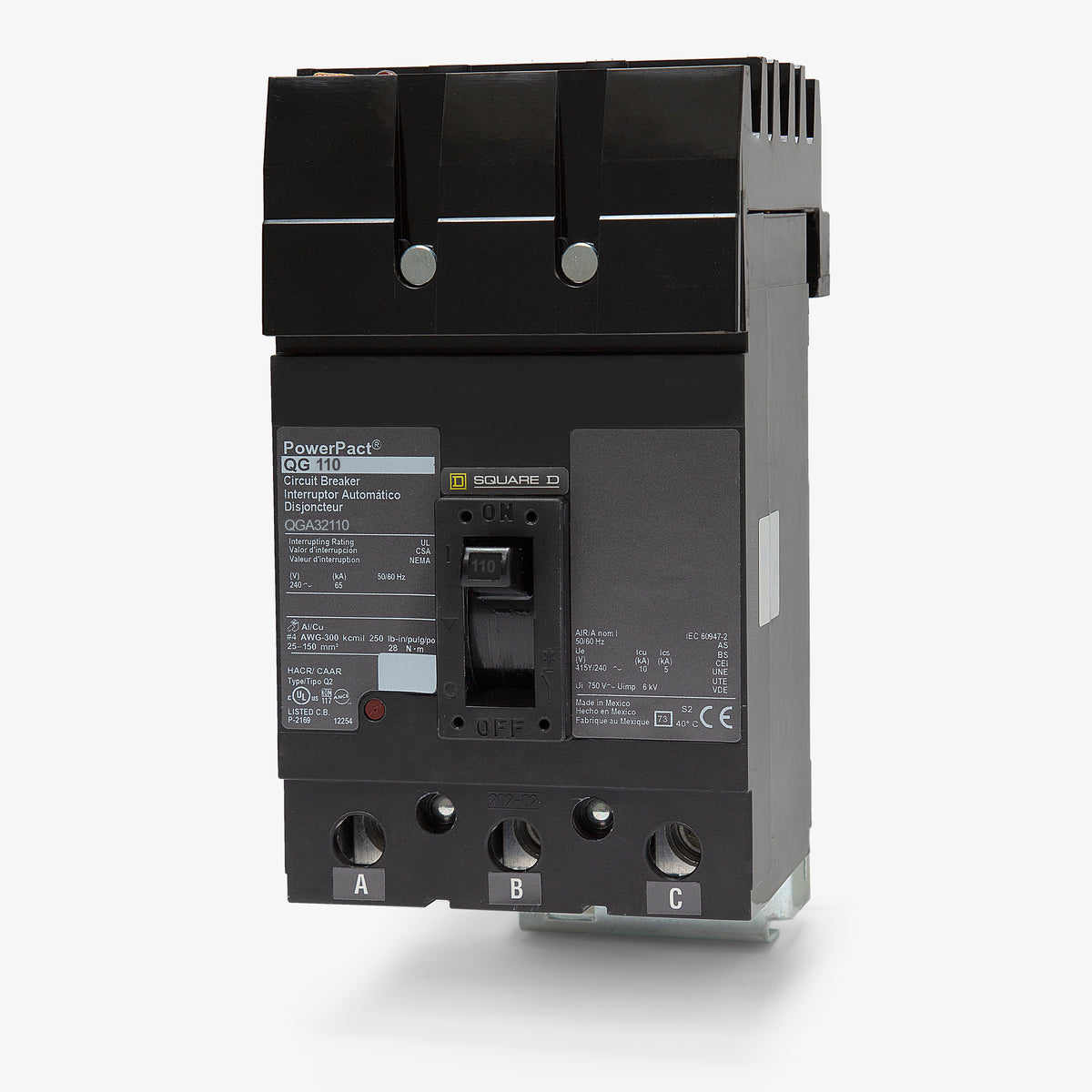

Square D QGA32110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- I-Line
Square D
QGA32110
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA32110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA32110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT Q-Frame series, this 110-amp molded case circuit breaker delivers robust long-time and instantaneous (LI) trip functions for commercial and industrial facilities. The QG catalog prefix indicates a high 65kA interrupting capacity at 240V, making it suitable for demanding electrical environments. It mounts into standard Square D I-Line switchboards and panelboards using an ABC phase connection.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA32110 |
| Series | QGA |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, RoHS Compliant, Mercury Free, PVC Free |
Product FAQs
5 answersWhat type of panelboards are compatible with the QGA32110?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on line side connection specific to the I-Line bus architecture.
What does the G in the QGA32110 catalog number indicate?
In the Square D PowerPacT Q-Frame series, the G designates the interrupting rating tier. It indicates that the breaker has a 65kAIC rating at 240VAC.
Does the QGA32110 require a separate lug kit for the load side?
No, this breaker comes with factory-installed load side lugs that accept 4 AWG to 300 kcmil aluminum or copper conductors. Because it is an I-Line breaker, the line side connects directly to the panel bus and does not require wire lugs.
Can the QGA32110 replace older legacy Square D breakers?
Yes, PowerPacT Q-Frame circuit breakers are direct replacements for legacy Square D Q2 series breakers. They share the same physical footprint and mount into the same I-Line panelboards and switchboards.

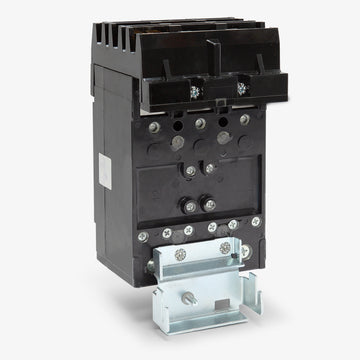

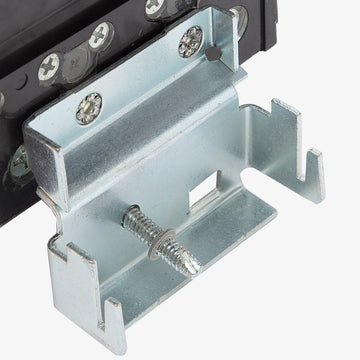

How does the I-Line connection on the QGA32110 work?
The breaker features specialized jaws on the line side that push directly onto the panelboard bus stack. This plug-on design allows for faster installation and phase balancing compared to traditional bolt-on breakers.
