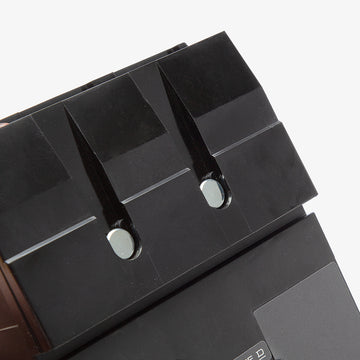

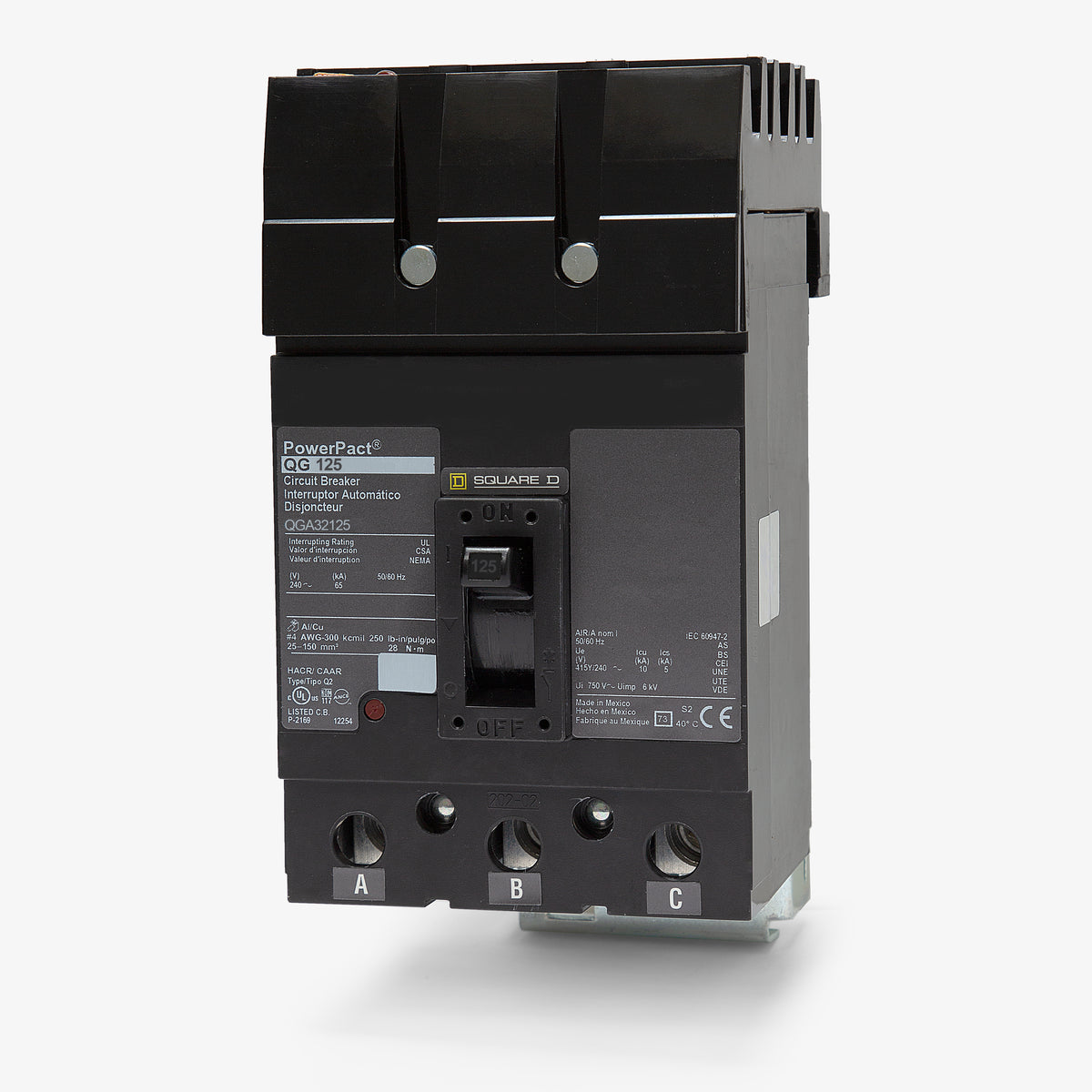

Square D QGA32125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- I-Line
Square D
QGA32125
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA32125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGA32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA32125 |
| Series | QGA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Quantity
Square D QGA32125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA32125 |
| Series | QGA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Built for heavy-duty industrial applications, this 125A molded case circuit breaker provides fixed thermal and magnetic (LI) protection. The QG designation signifies a 65kAIC rating at 240VAC, ensuring reliable fault clearing in high-capacity networks. Designed with an ABC phase connection, it integrates smoothly into Square D I-Line panelboards and switchboards. Facility managers can utilize this PowerPacT Q-Frame model to upgrade aging infrastructure or replace legacy Q23125 components.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA32125 |
| Series | QGA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
5 answersWhat panelboards are compatible with the QGA32125 circuit breaker?
This breaker features an I-Line plug-on connection and is exclusively designed for Square D I-Line panelboards and switchboards. It will not fit in standard QO residential load centers or NQ and NF series panelboards.
Can I use the QGA32125 to replace an older Square D breaker?
Yes, Schneider Electric PowerPacT Q-frame circuit breakers like the QGA32125 serve as direct replacements for legacy Square D Q2 Series I-Line circuit breakers.
Are the lugs on this breaker compatible with aluminum wiring?
Yes, the factory-installed load lugs accept both copper and aluminum (AL/CU) conductors. The supported wire size ranges from 4 AWG to 300 kcmil.
Does this I-Line breaker require wire connections on both the line and load sides?

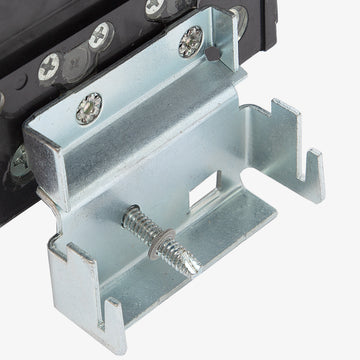

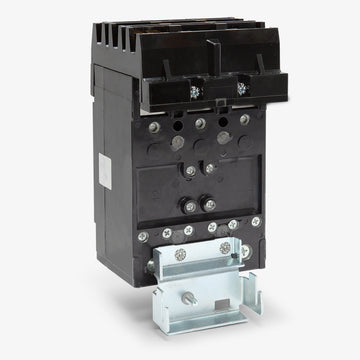

No. As an I-Line breaker, the QGA32125 features a plug-on line connection that seats directly onto the panelboard bus stack. Mechanical lugs are only provided on the load side for your outgoing wire connections.
Can the QGA32125 be used in 480V or 600V electrical systems?
No, this specific Q-frame breaker is rated for a maximum of 240V AC. For 480V or 600V I-Line applications, you must specify a different frame class, such as an H-frame or J-frame circuit breaker.
