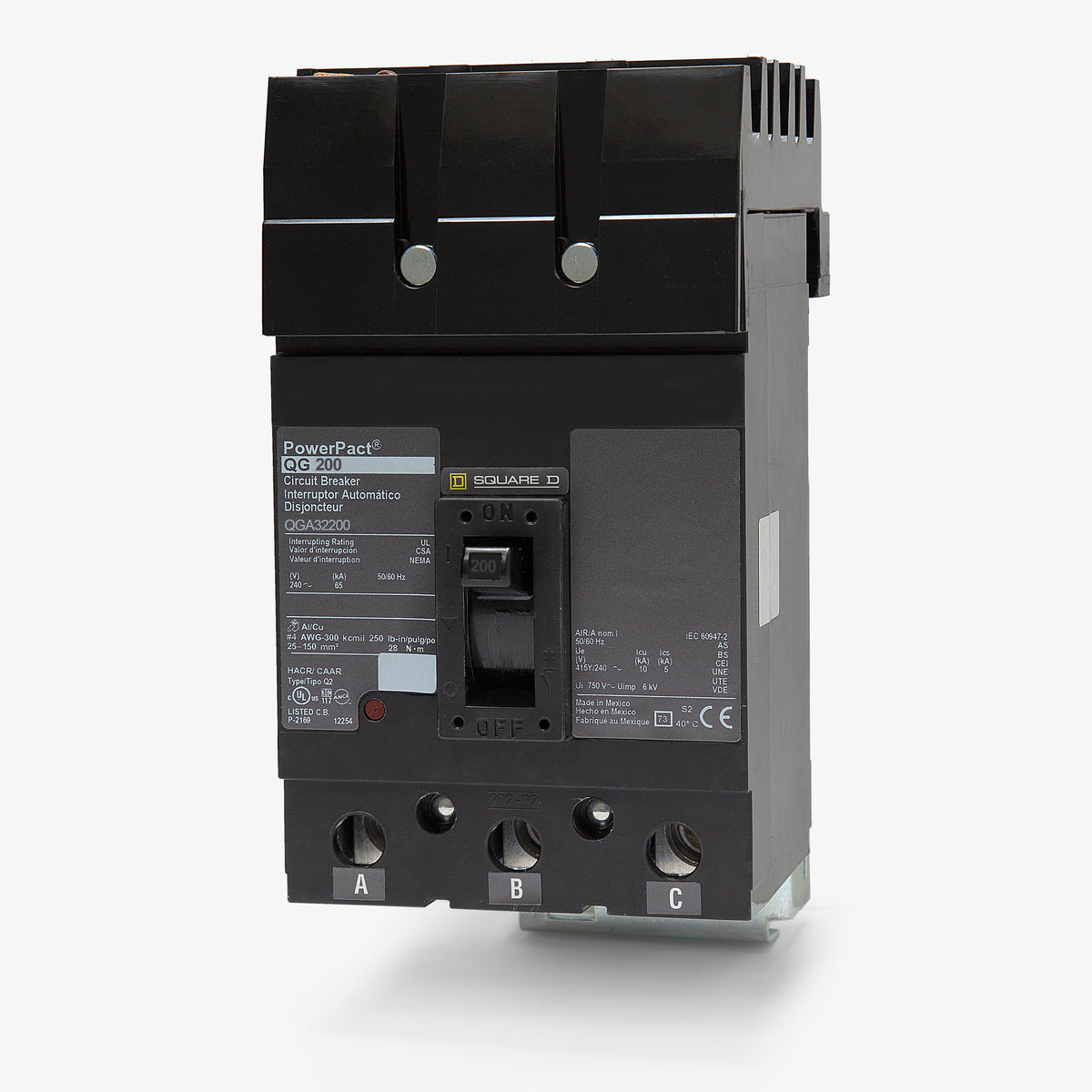

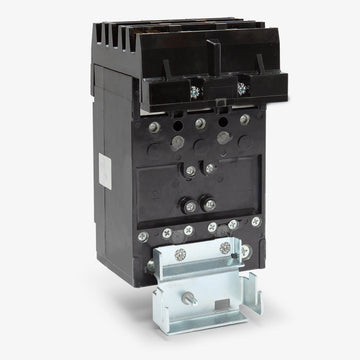

Square D QGA32200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
QGA32200
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA32200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGA32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA32200 |
| Series | QGA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated |
Quantity
Square D QGA32200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA32200 |
| Series | QGA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Designed for demanding commercial environments, this 200A PowerPacT Q-Frame breaker offers reliable thermal-magnetic trip functions to safeguard critical infrastructure. It mounts securely into Square D I-Line switchboards and panelboards. Facility managers can utilize this model to replace older Q23200 breakers with identical ABC phase connections. With an impressive 65kAIC rating at 240VAC, the device incorporates a Visi-Trip indicator to minimize downtime during fault events.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA32200 |
| Series | QGA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated |
Product FAQs
8 answersWhat panelboards are compatible with the QGA32200?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features a plug-on line side connection that fastens directly to the internal I-Line bus assembly.

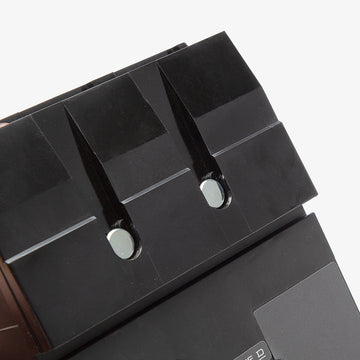

What are the wire size and torque specifications for the load lugs?
The load side mechanical lugs accept copper or aluminum wire ranging from 4 AWG to 300 kcmil. The factory recommended tightening torque for these load lugs is 247.8 lb-in (28 N.m).
Can the QGA32200 replace older Square D Q2 series breakers?
Yes. The PowerPacT Q-frame series is the modern direct replacement for the legacy Square D Q2 series. Specifically, the QGA32200 directly replaces the obsolete Q232200 I-Line circuit breaker.
What does the letter G in the QGA part number represent?
In the PowerPacT Q-frame family, the middle letter indicates the interrupting capacity. The G in QGA signifies a 65kAIC rating at 240VAC. For comparison, a QDA breaker has a 25kAIC rating, while a QJA breaker offers a 100kAIC rating.

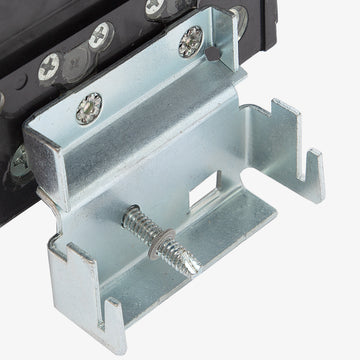

How is the line side connection made on this breaker?
The QGA32200 utilizes an I-Line plug-on connection for the line side, which mounts directly to the bus structure of an I-Line panel. The load side features standard mechanical lugs for hardwiring directly to your branch circuit or feeder.
Does the QGA32200 feature adjustable trip settings?
No. This breaker is equipped with a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous protection but does not include adjustable dials for customizing the trip curve.
Can the QGA32200 be installed on a 480V system?
No. The maximum voltage rating for the QGA32200 and all PowerPacT Q-frame breakers is 240VAC. They are strictly designed for 240V, 208V, or 120V systems and cannot be safely used on 480V or 600V distribution systems.
Does this breaker include a push-to-trip feature?
Yes. Like all Square D PowerPacT circuit breakers, the QGA32200 includes an integral push-to-trip button on the front cover. This allows electricians to manually trip the breaker mechanism to verify mechanical operation prior to maintenance or testing.
