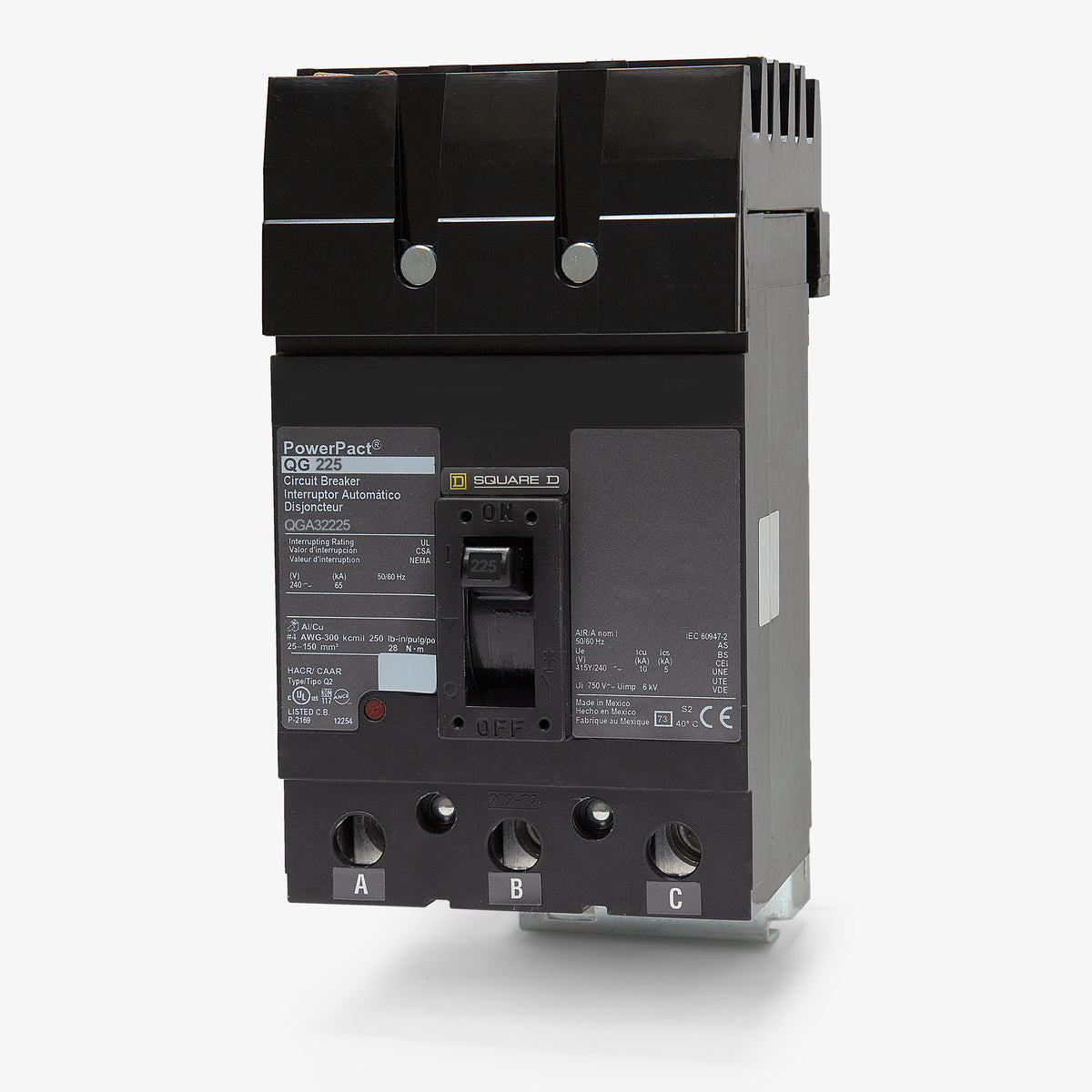

Square D QGA32225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- I-Line
Square D
QGA32225
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA32225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGA32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA32225 |
| Series | QGA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, RoHS Compliant, Mercury Free, PVC Free |
Quantity
Square D QGA32225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA32225-R |
| Series | QGA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, RoHS Compliant, Mercury Free, PVC Free |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
The QGA32225 is part of Square D's PowerPacT Q-Frame lineup, offering 225A of continuous current capacity for commercial and industrial applications. It mounts into I-Line panelboards and switchboards, featuring a plug-on line connection and load-side lugs for efficient installation. Delivering a 65 kAIC interrupting rating at 240V, this 3-pole MCCB utilizes fixed thermal-magnetic trip technology for dependable long-time and instantaneous (LI) protection. It replaces legacy Q232225 breakers.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA32225 |
| Series | QGA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, RoHS Compliant, Mercury Free, PVC Free |
Product FAQs
7 answersWhich panelboards are compatible with the QGA32225?

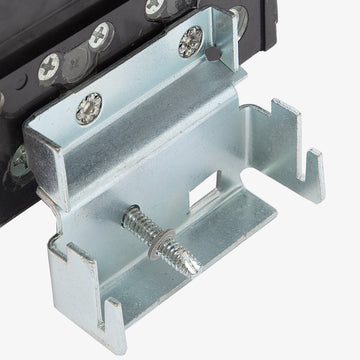

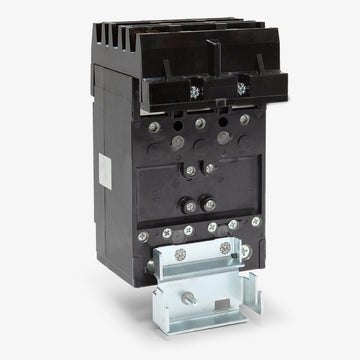

This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It uses an I-Line style plug-on connection for the line side and mechanical lugs for the load side.
What is the difference between Square D QBA, QDA, QGA, and QJA breakers?
The third letter indicates the maximum interrupting rating at 240V for PowerPacT Q-Frame breakers. The QBA is rated 10kAIC, QDA is 25kAIC, QGA is 65kAIC, and QJA is 100kAIC. They share the same physical footprint and mounting configuration.
Will the QGA32225 replace legacy Q2 series breakers?
Yes, the PowerPacT Q-Frame lineup is the direct factory replacement for obsolete Square D Q2 series circuit breakers, including the Q232225.
What conductor materials do the load lugs accept?
The factory-installed load-side lugs are rated for both copper (CU) and aluminum (AL) wire. They accommodate conductor sizes ranging from 4 AWG to 300 kcmil.
What are the magnetic trip levels for this 225A breaker?
The fixed thermal-magnetic trip unit is factory set with a magnetic hold current of 1200A and a magnetic trip current of 2400A.
How can I manually test the mechanical operation of this breaker?
All PowerPacT Q-Frame breakers feature an integral push-to-trip button on the front cover. This allows you to manually open the contacts and verify the mechanical tripping mechanism is functioning correctly without requiring an overcurrent event.
What phase connection does the standard QGA32225 use?
This 3-pole breaker uses a standard ABC phase connection. The line-side plug-on jaws sequence directly to the A, B, and C phases on the I-Line busbar.
