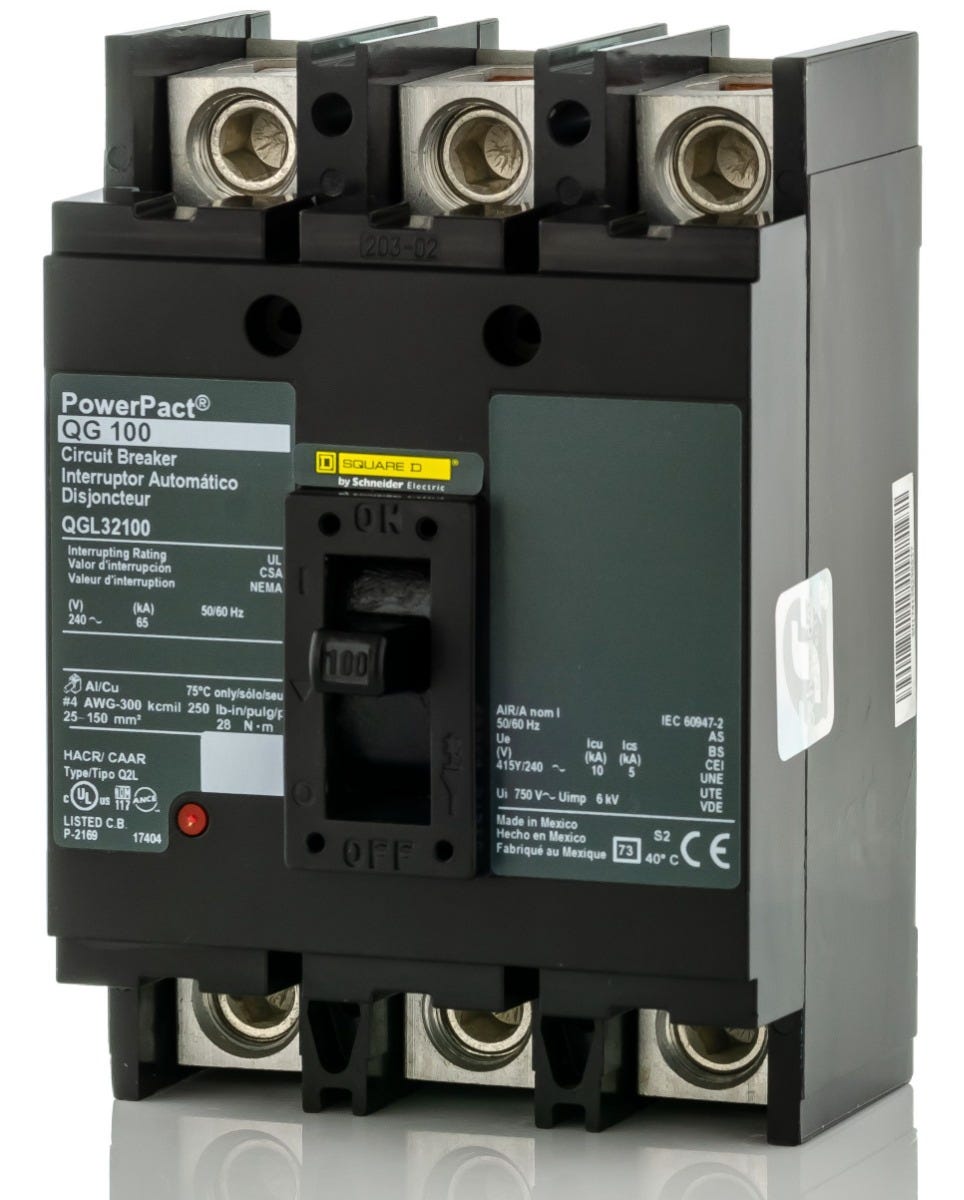

Square D QGL32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
QGL32100
Molded Case Circuit Breaker
Brand
Square D
SKU
QGL32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGL32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Designed for demanding commercial environments, the Square D QGL32100 is a 3-pole, 100A MCCB. Utilizing thermal magnetic trip technology, it provides essential long-time and instantaneous (LI) protection against overloads and short circuits. This unit mount Q-Frame breaker integrates into Square D NQOD panelboards, NQ panelboards, and switchboards. It is an ideal upgrade for the legacy Q2L3100. With a 65 kAIC capacity at 240VAC, this HACR-rated breaker meets UL 489 and CSA standards.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGL32100 |
| Series | QGL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQOD Panelboards, NQ Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhich panelboards are compatible with the QGL32100 circuit breaker?
This unit-mount Q-frame breaker is designed for use in Square D NQ and NQOD panelboards, as well as compatible switchboards and individual enclosures.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed box lugs accept 4 AWG to 300 kcmil aluminum or copper (Al/Cu) conductors.
Can the QGL32100 be reverse fed?
Yes, this thermal-magnetic PowerPacT Q-frame circuit breaker can be forward or reverse fed, allowing flexibility in your wiring configuration.
What is the difference between the QGL32100 and the QDL32100 or QJL32100?
The difference is the interrupting rating. The QGL32100 has a 65kA rating at 240VAC. The QDL32100 is rated for 25kA, and the QJL32100 is rated for 100kA. All three share the same physical footprint and 100A trip rating.
How is this breaker mounted in a panel?
The QGL32100 is a unit-mount, feed-thru circuit breaker. It features lugs on both the line and load ends for cabled connections rather than plugging or bolting directly onto a busbar.
Does this breaker provide ground fault or arc fault protection?
No, the QGL32100 provides standard thermal-magnetic overcurrent and short-circuit protection. It does not include integrated GFCI or AFCI functions.
What type of trip unit is installed in the QGL32100?
It features a fixed thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) functions. The thermal and magnetic trip points are factory set and cannot be adjusted in the field.
