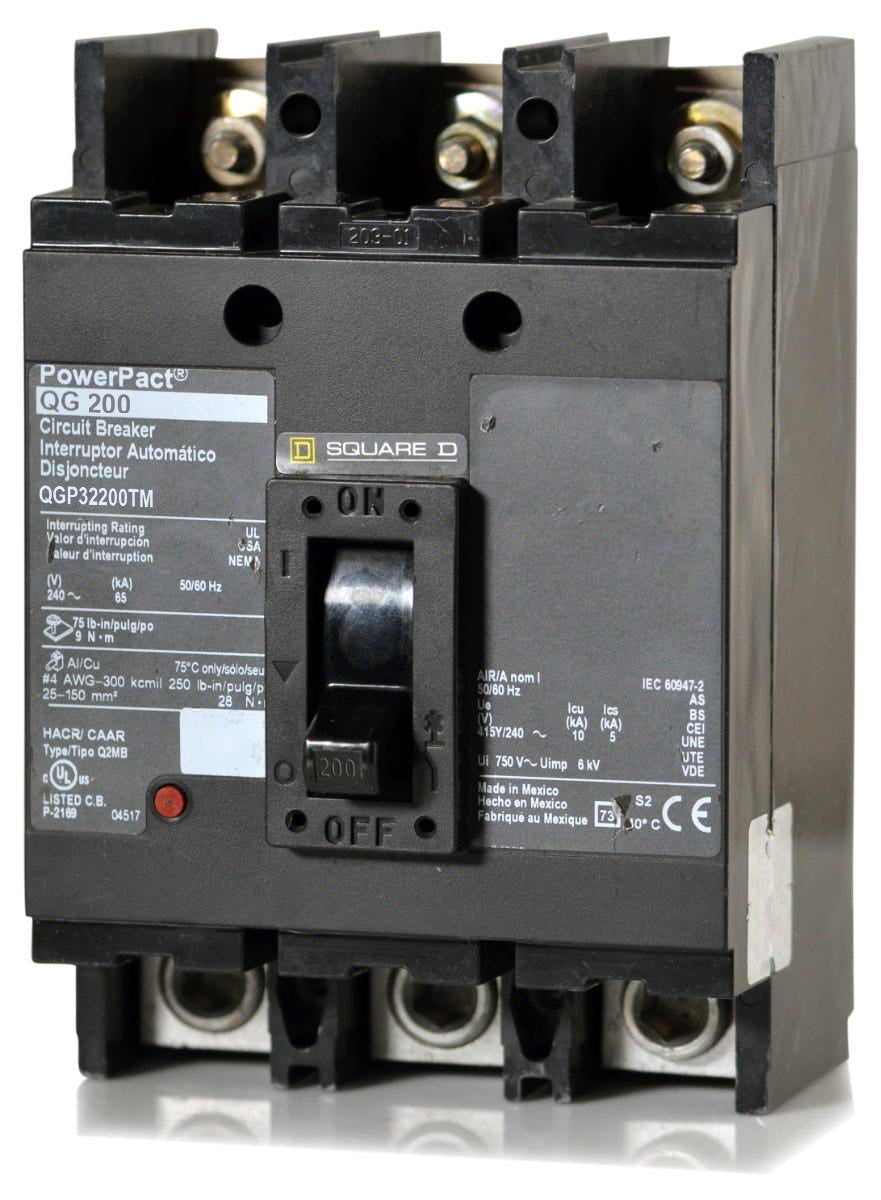

Square D QGP32200TM Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
QGP32200TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QGP32200TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGP32200TM - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGP32200TM - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGP32200TM-R |
| Series | QGP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Mercury Free, PVC Free, RoHS Compliant |
Sold out
Quantity
Square D QGP32200TM - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGP32200TM-R |
| Series | QGP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Mercury Free, PVC Free, RoHS Compliant |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Providing 200 amps of continuous current capacity, this three-pole MCCB operates within the Square D PowerPacT Q-Frame lineup. It safeguards commercial electrical networks against overloads and short circuits. This model features a unit mount design and installs into Square D Meter-Pak metering centers. It comes equipped with stud/tapped pad line connections and load side lugs. Delivering a 65 kAIC rating at 240V, the breaker relies on fixed thermal-magnetic trip functions for system safety.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGP32200TM-R |
| Series | QGP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
7 answersWhat equipment is the QGP32200TM circuit breaker designed for?
This 3-pole breaker is specifically designed for use in Square D Meter-Pak and EZ Meter-Pak metering centers.
What does the G in the QGP32200TM part number signify?
The G indicates the interrupting rating tier within the PowerPacT Q-Frame family, which provides a 65kA short-circuit interrupting rating at 240V AC.
What type of terminal connections does this breaker feature?
The QGP32200TM features a unit-mount, bolt-on design with stud or tapped pad line connections and load-side lugs.
What is the acceptable wire size and material for the load lugs on the QGP32200TM?
The load lugs accept both aluminum and copper conductors ranging from 4 AWG to 300 kcmil.
Can the QGP32200TM be installed on a 480V system?
No, this breaker has a maximum voltage rating of 240V AC and is not suitable for 480V applications.
What type of trip unit is installed in the QGP32200TM?
It is equipped with a fixed thermal-magnetic trip unit that provides long-time and instantaneous (LI) overcurrent protection functions.
Is the QGP32200TM part of the PowerPacT series?
Yes, it is a Q-Frame molded case circuit breaker within the Square D PowerPacT family.
