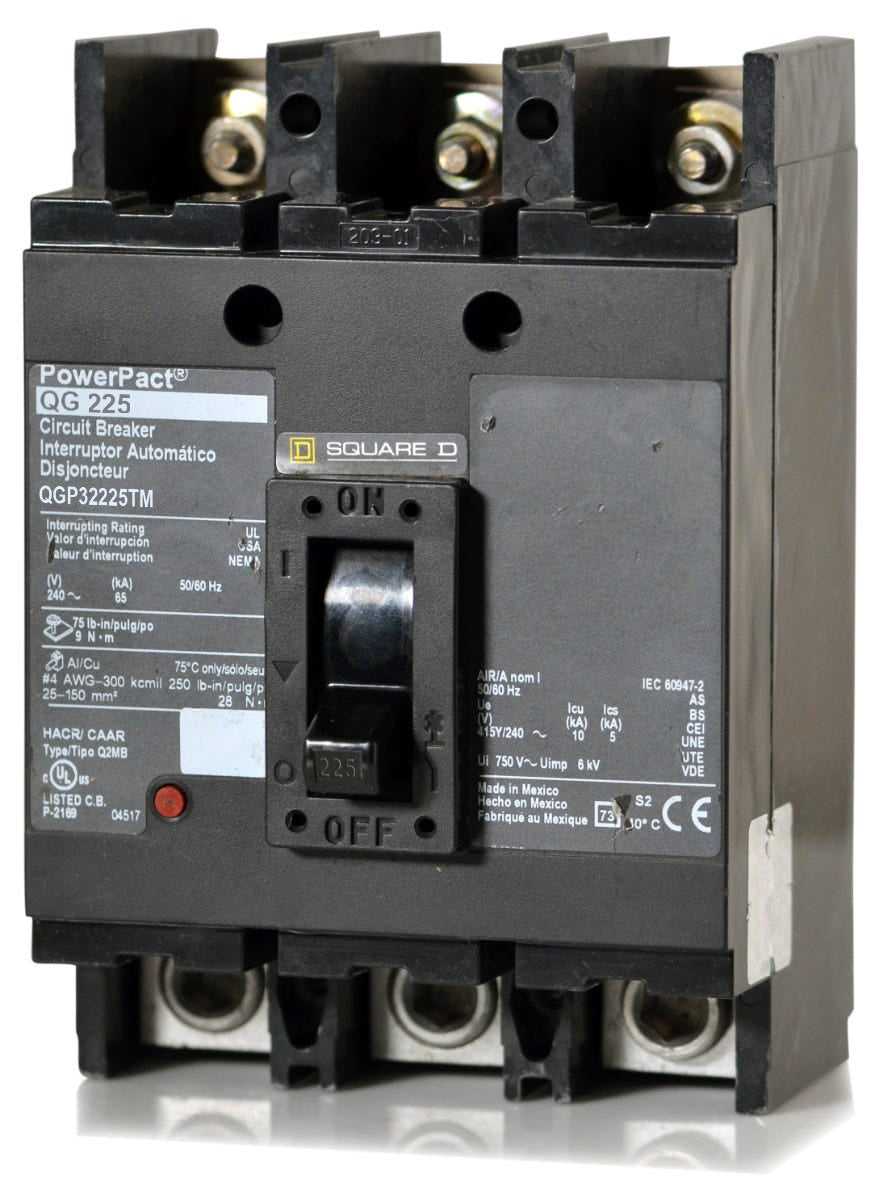

Square D QGP32225TM Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
QGP32225TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QGP32225TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGP32225TM - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGP32225TM - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGP32225TM |
| Series | QGP |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Mercury Free, PVC Free, RoHS Compliant |
Quantity
Square D QGP32225TM - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QGP |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Mercury Free, PVC Free, RoHS Compliant |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding distribution, the Square D QGP32225TM is a 225A, 3-pole MCCB. As part of the PowerPacT Q-Frame lineup, it utilizes a fixed thermal-magnetic trip unit to deliver precise long-time and instantaneous (LI) protection. This unit-mount breaker installs into Square D Meter-Pak metering centers, accommodating 4 AWG to 300 kcmil wiring with included load-side lugs. With a robust 65 kAIC rating at 240VAC, it handles short-circuit events safely and features a Visi-Trip window.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGP32225TM |
| Series | QGP |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
5 answersWhat enclosures or metering centers are compatible with the QGP32225TM?
This unit-mount breaker is specifically designed for installation in Square D Meter-Pak Metering Centers. It is not intended for standard I-Line panelboards or QO load centers.
What does the "G" in the QGP part number signify?
In the PowerPacT Q-Frame series, the "G" designates the interrupting capacity tier. This model provides a 65kAIC rating at 240VAC, making it suitable for systems with higher available fault currents.
How is the QGP32225TM mounted and terminated?
It features a unit-mount, bolt-on design. The breaker uses stud or tapped pad terminals and includes load-side lugs that accept 4 AWG to 300 kcmil aluminum or copper conductors.
What does the "TM" suffix indicate on this breaker?
The "TM" suffix stands for Thermal Magnetic. It indicates the breaker uses a fixed thermal and fixed magnetic trip unit to provide long-time and instantaneous (LI) protection.
Can this breaker be installed in a 480V panel?
No. The QGP32225TM is strictly rated for a maximum of 240VAC. It cannot be safely used in 277V or 480V distribution systems.
