Square D QO2100CP Miniature Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Square D
QO2100CP
Miniature Circuit Breaker
Brand
Square D
SKU
QO2100CP
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

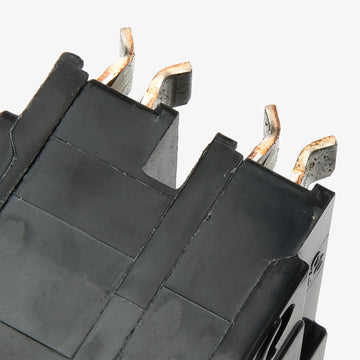

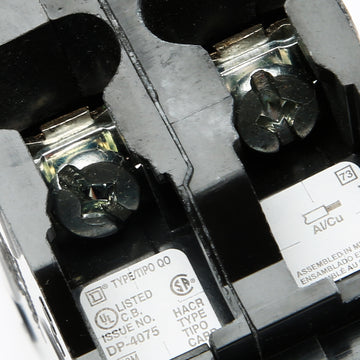

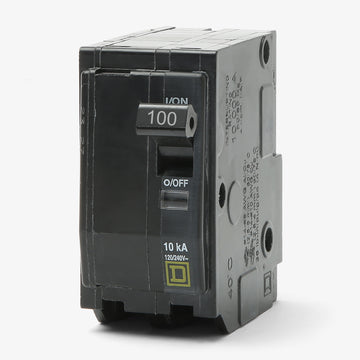

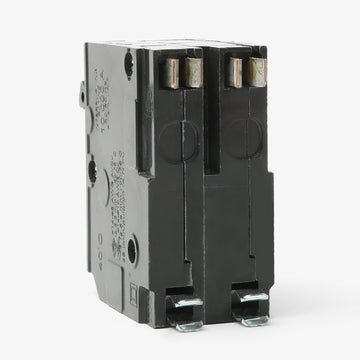

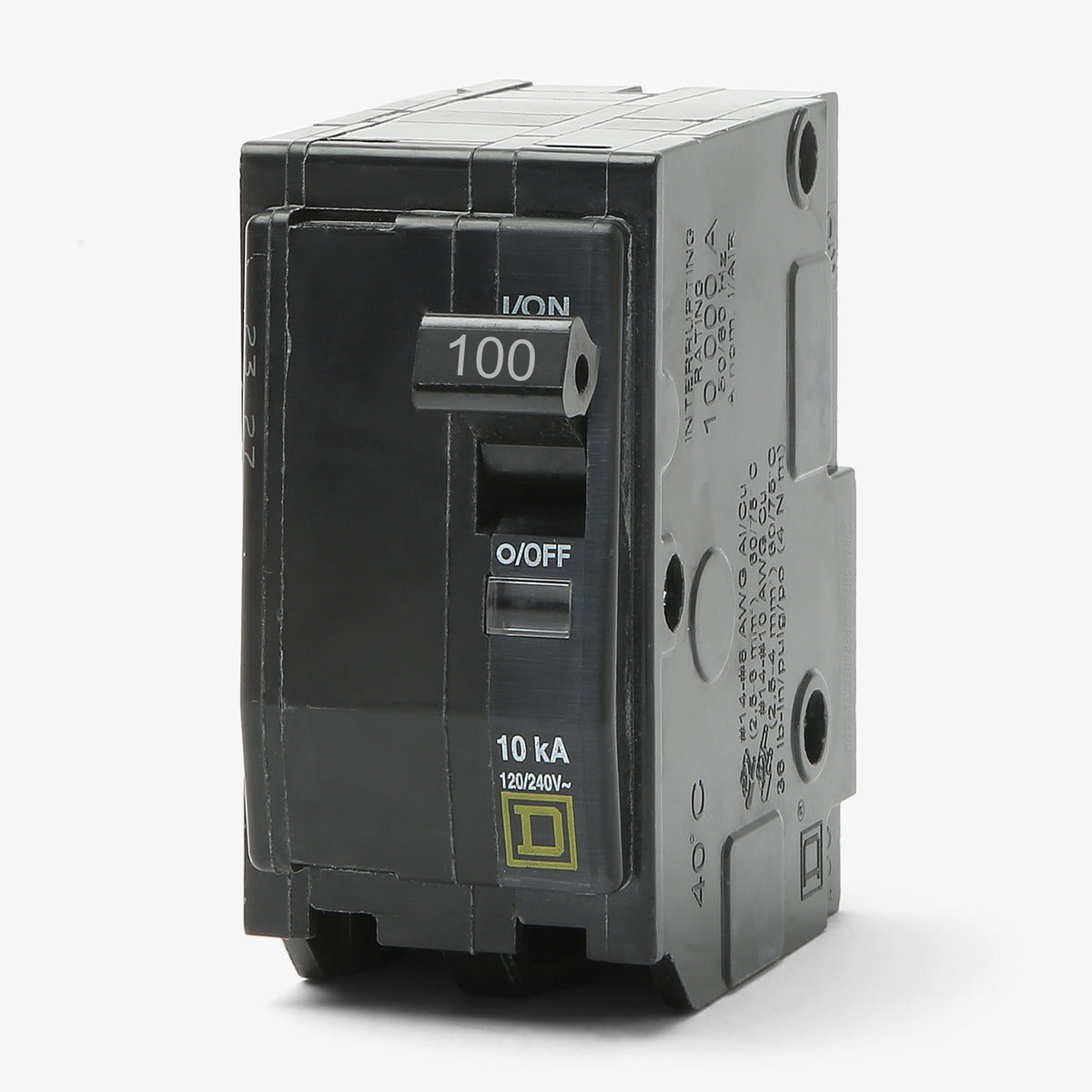

Square D QO2100CP - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
110A 2 Pole Miniature Circuit Breaker
Description
Supplied in convenient retail packaging, the QO2100CP delivers 100 amps of protection for residential and commercial systems. It provides 10kA short-circuit capacity, suitable for feeding subpanels or large appliances. This unit snaps into Square D QO load centers, NQ, and legacy NQOD panelboards. It serves as a direct substitute for the standard bulk-packaged QO2100. A built-in Visi-Trip indicator reveals a bright red flag when the breaker trips, simplifying troubleshooting in dark rooms.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO2100 |
| Series | QO |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Consumer Pack |
Product FAQs
6 answersIs there a difference between the QO2100 and QO2100CP?
Both part numbers represent the exact same circuit breaker [1.1.1]. The "CP" suffix simply indicates consumer or commercial blister packaging, while the standard QO2100 ships unboxed in bulk trays.
Will the QO2100CP fit into a Square D Homeline panel?
No. QO series breakers are built on a 3/4-inch format and will not fit Homeline load centers, which are designed exclusively for 1-inch format breakers.
Can I use this plug-on breaker in a bolt-on NQ panelboard?
No. If your specific panel interior requires a bolt-on connection to the busbar, you must source the QOB2100 instead. The QO2100CP is strictly a plug-on device.
How much space does the QO2100CP require in a load center?
This 2-pole breaker requires two adjacent 3/4-inch panel spaces, occupying 1.5 inches of total width on the busbar.
Is this 100A breaker suitable for HVAC equipment?
Yes. The QO2100CP is HACR rated, meaning it is certified for use with compatible heating, air conditioning, and refrigeration motor loads.
Does the QO2100CP feature a tripped circuit indicator?
Yes. It includes the Square D Visi-Trip red indicator flag, which appears in the window when the breaker trips to help you easily identify the interrupted circuit.
