Square D QO21001021 Miniature Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Square D
QO21001021
Miniature Circuit Breaker
Brand
Square D
SKU
QO21001021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO21001021 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items

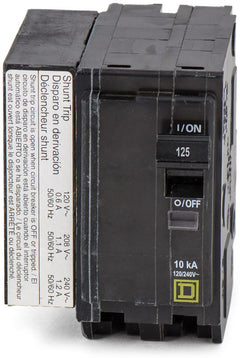

QO21251021 - 125A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
QO2301021 - 30A 2 Pole Miniature Circuit Breaker
Description
Engineered for remote tripping, the QO21001021 includes a factory-installed 120/208/240VAC shunt trip mechanism. This allows automated systems to open the 100-amp circuit from a remote location, ideal for emergency stops. The plug-on design fits seamlessly into standard Square D QO load centers and NQ panelboards. It requires three pole spaces total due to the attached shunt trip module. Along with standard protection, it features the Visi-Trip red flag for quick visual status confirmation.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO21001021 |
| Series | QO |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
5 answersWhat does the 1021 suffix indicate on the QO21001021 breaker?
The 1021 suffix means the breaker is equipped with a factory-installed 120/208/240VAC shunt trip accessory. This allows the breaker to be opened remotely via a control signal, which is commonly used for emergency stops or automated control systems.
How many panel spaces does the QO21001021 require?
It requires three standard 0.75-inch spaces. The 100A 2-pole breaker occupies two spaces, and the attached shunt trip module requires one additional space.
Can this breaker be installed in a Square D Homeline panel?
No. Square D QO circuit breakers have a specific plug-on mounting clip and are not interchangeable with Homeline panels. The QO21001021 must be installed in a compatible QO load center or NQ panelboard.
Does the QO21001021 include a visual trip indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent event or a remote shunt trip signal, a red flag appears in the indicator window for quick identification in the panel.
What control voltage is required to activate the shunt trip mechanism?
The factory-installed shunt trip coil is rated to operate on a 120VAC, 208VAC, or 240VAC control voltage signal.
