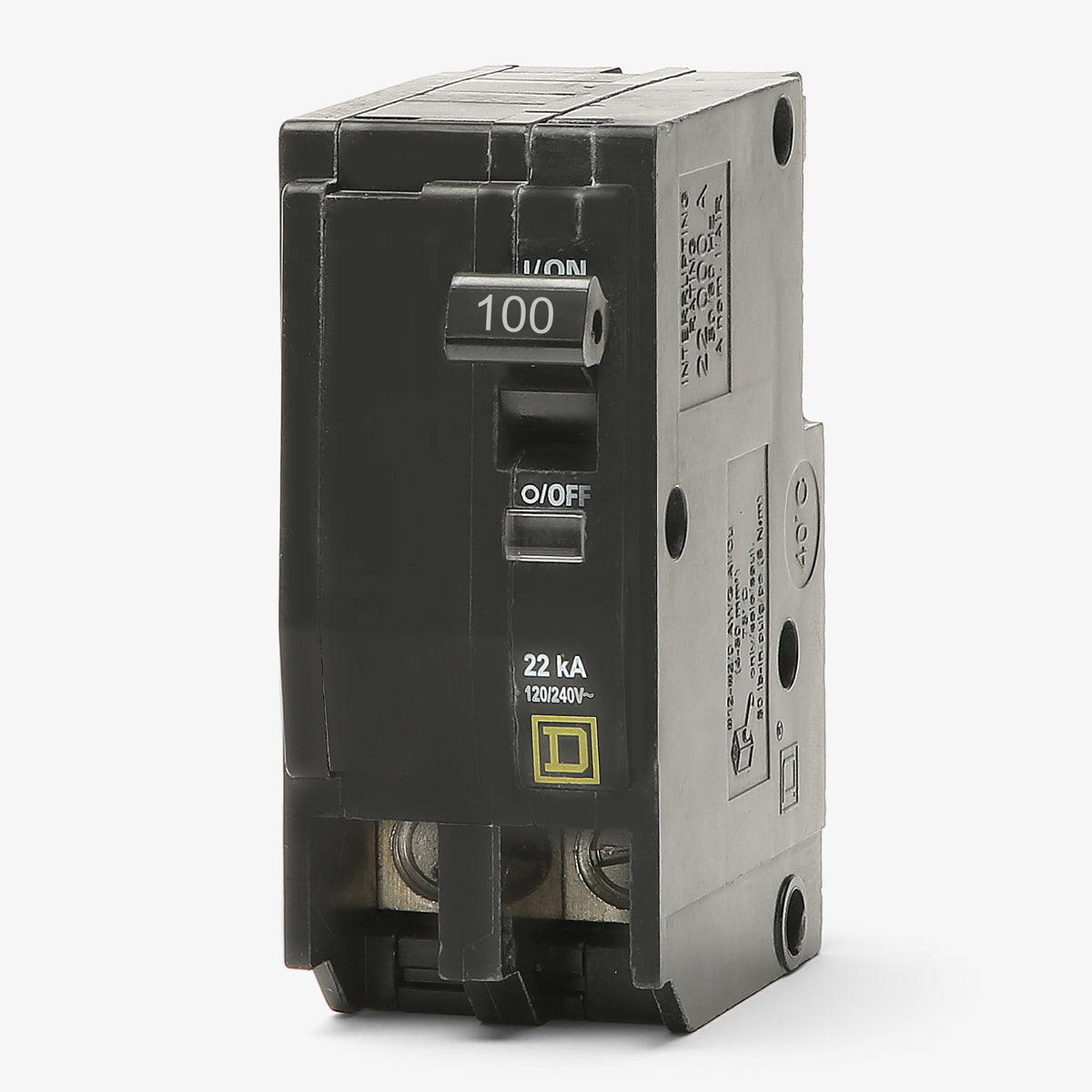

Square D QO2100VH Miniature Circuit Breaker
- 100A
- 2 Pole

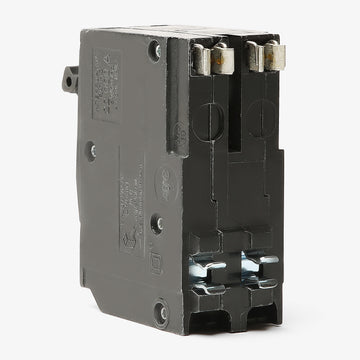

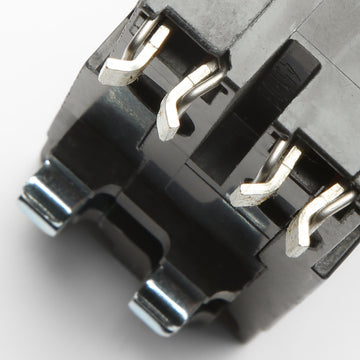

- Plug-On
Square D
QO2100VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO2100VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO2100VH - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Built for higher fault current protection, the Square D QO2100VH is a 100A, two-pole miniature circuit breaker. It delivers reliable thermal-magnetic protection for residential and commercial systems. It installs into Square D QO load centers, NQ panelboards, and NQOD panelboards. The plug-on design ensures an efficient panel setup. Rated at 22kAIC at 120/240V, this high-interrupting breaker features the exclusive Visi-Trip indicator for immediate visual confirmation of a tripped circuit.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO2100VH |
| Series | QO |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|

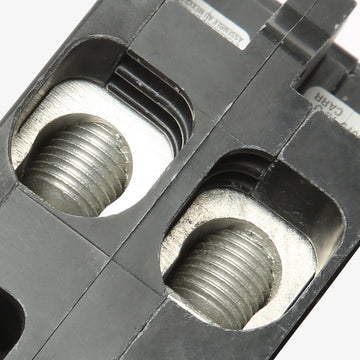

| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the QO2100VH?
This breaker is designed for use in Square D QO load centers, as well as NQ and NQOD panelboards. It utilizes a standard plug-on mounting configuration.
Can I install the QO2100VH in a Square D Homeline panel?
No. Square D QO and Homeline series breakers have different physical dimensions and mounting configurations. They are not interchangeable.
How many panel spaces does the QO2100VH require?
As a 2-pole QO series breaker, it requires two standard 3/4-inch spaces in a compatible load center or panelboard.
What is the difference between the QO2100 and the QO2100VH?
The VH suffix indicates a higher interrupting rating. The QO2100VH is rated for 22kAIC at 120/240VAC, whereas the standard QO2100 is rated for 10kAIC.
Is the QO2100VH HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires group motor protection.
Does this breaker feature Visi-Trip indication?
Yes, it includes the Square D Visi-Trip red indicator. When the breaker trips, the handle snaps to a midpoint position and a red flag appears, allowing for quick identification of the tripped circuit.
