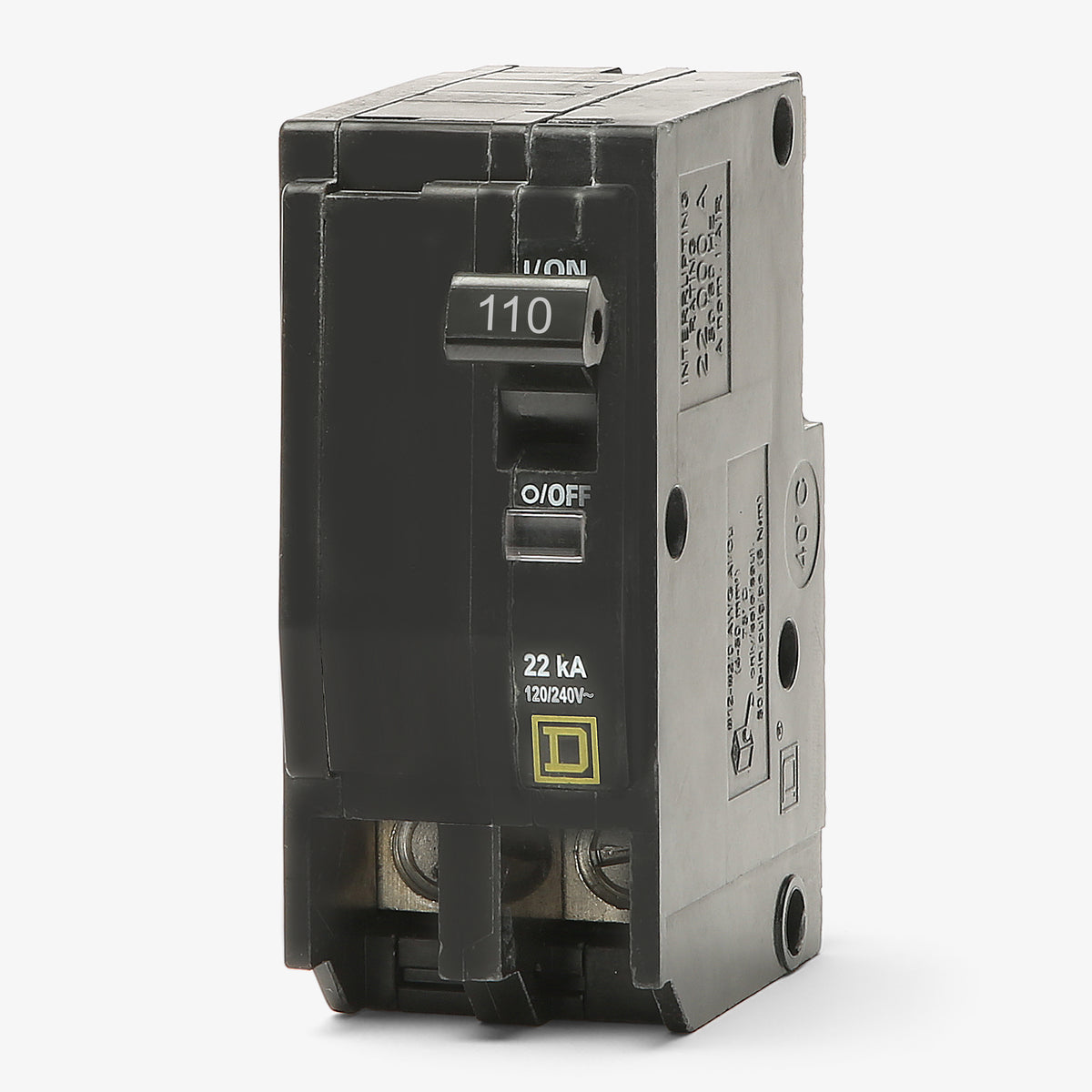

Square D QO2110VH Miniature Circuit Breaker
- 110A
- 2 Pole
- Plug-On
Square D
QO2110VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO2110VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO2110VH - 110A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
125A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Delivering robust overcurrent protection for demanding applications, this two-pole 110A breaker features a high 22kAIC interrupting capacity. It installs easily into Square D QO load centers and NQ panelboards without requiring additional mounting hardware. The integrated Visi-Trip indicator provides immediate visual confirmation of a tripped circuit, reducing troubleshooting time for facility managers and electricians handling critical residential or commercial power distribution systems.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO2110VH |
| Series | QO |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, High Interrupting Capacity, HACR Rated, Common Trip |
Product FAQs
6 answersCan I install the QO2110VH in a Square D Homeline panel?
No. Square D QO and Homeline circuit breakers are not interchangeable. The QO2110VH is designed exclusively for QO load centers and NQ panelboards.
What does the VH stand for in the QO2110VH catalog number?
The VH suffix indicates a high interrupting rating of 22kAIC. Standard QO breakers without this suffix are typically rated for 10kAIC.
Can I use the QO2110VH to replace a standard QO2110?
Yes. The QO2110VH has a higher interrupting rating (22kAIC) than the standard QO2110 (10kAIC). It is safe to use a breaker with a higher interrupting rating than required, provided the panel accepts plug-on QO breakers.
How many panel spaces does the QO2110VH require?
This 110-amp, 2-pole breaker requires two standard 3/4-inch spaces in a compatible QO load center or NQ panelboard.
Is this breaker compatible with bolt-on panelboards?
No. The QO2110VH features a plug-on mounting style. If your panel requires bolt-on connections, you must use a QOB series circuit breaker instead.
Does the QO2110VH include ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker with long-time and instantaneous (LI) trip functions. It does not provide GFCI or AFCI protection.
