Square D QO290VH Miniature Circuit Breaker
- 90A
- 2 Pole
- Plug-On
Square D
QO290VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO290VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

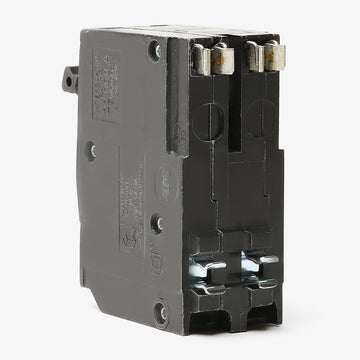

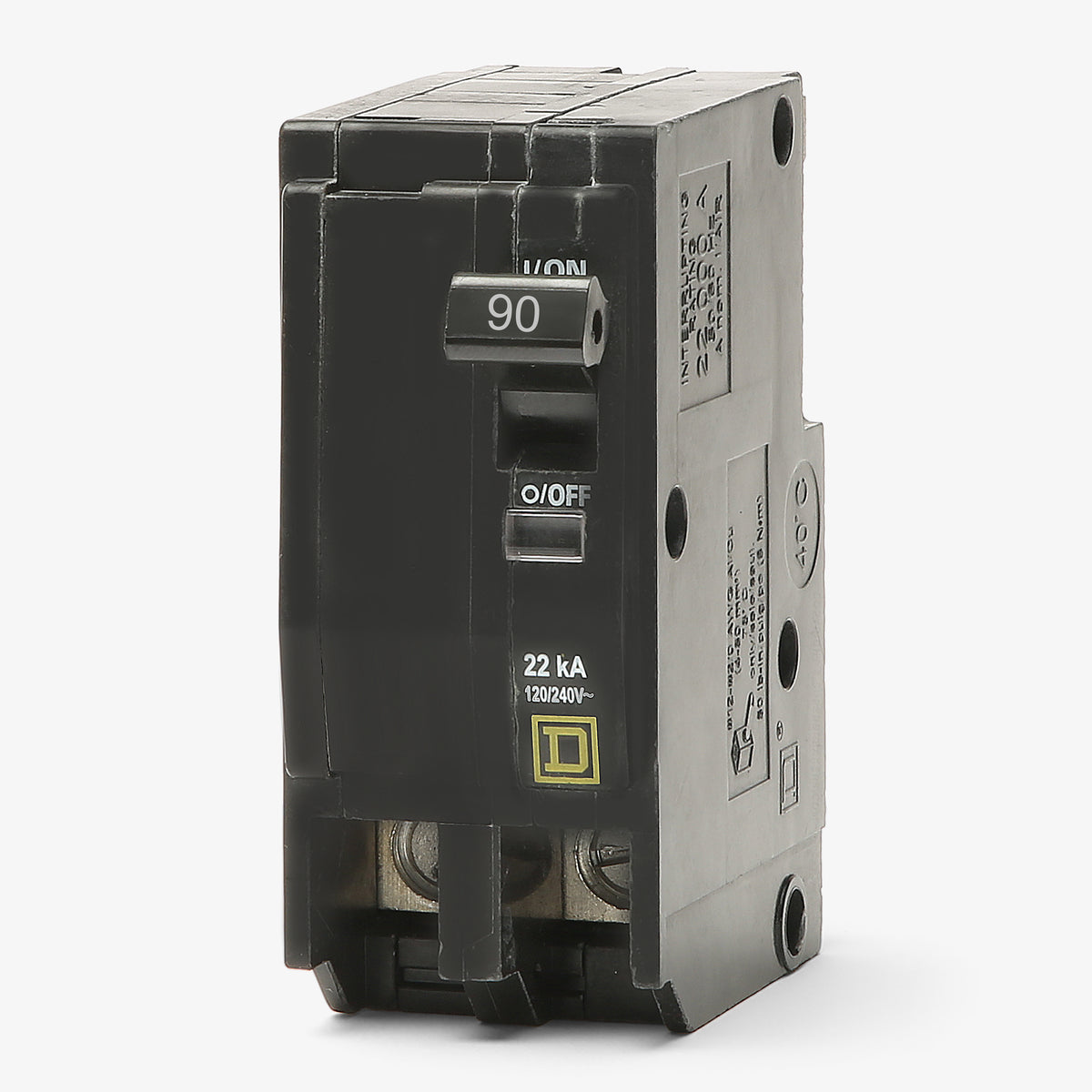

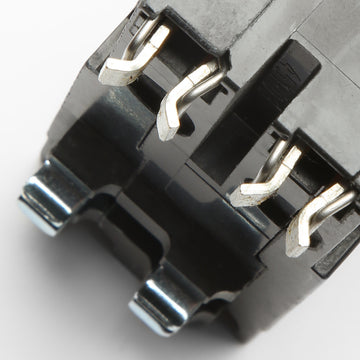

Square D QO290VH - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
110A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Built to handle higher fault currents, this 90-amp high-interrupting capacity breaker delivers enhanced safety for commercial and industrial environments. The device mounts into Square D QO load centers and NQ panelboards, requiring two standard pole spaces. Rated at 22kAIC at 120/240VAC, it includes the highly visible Visi-Trip indicator to help maintenance personnel quickly locate faults. Box lug terminals accept 4 AWG to 2/0 AWG conductors for flexible installation.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO290VH |
| Series | QO |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Mercury Free |
Product FAQs
6 answersWhat panelboards and load centers are compatible with the QO290VH?
This plug-on breaker is designed exclusively for Square D QO load centers and NQ panelboards. It cannot be installed in Square D Homeline panels or load centers from other manufacturers.
How many panel spaces does the QO290VH require for installation?
As a 2-pole QO series breaker, it requires two standard 3/4-inch spaces in a compatible panel.
What does the VH suffix indicate in the QO290VH catalog number?
The VH suffix indicates a high interrupting rating of 22kAIC at 120/240VAC. This is higher than the 10kAIC rating found on standard QO breakers, making it suitable for applications with higher available fault currents.
Is there a bolt-on equivalent available for the QO290VH?
Yes. If your application requires a bolt-on connection, such as in certain NQ or legacy NQOD panelboards, the equivalent catalog number is QOB290VH.

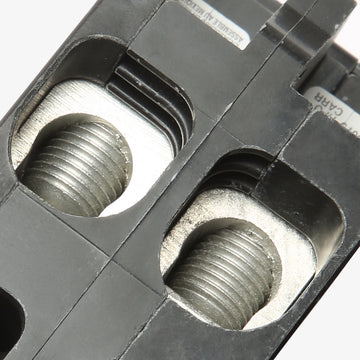

What wire sizes are accepted by the terminals on the QO290VH?
The box lugs accept 4 AWG to 2/0 AWG aluminum or copper conductors. Always verify that your selected wire gauge meets the 90-amp circuit requirements according to the National Electrical Code (NEC).
Does the QO290VH feature a tripped circuit indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, a red indicator flag appears in the window to help quickly identify the faulted circuit.
