Square D QO2175VH Miniature Circuit Breaker
- 175A
- 2 Pole
- Plug-On
Square D
QO2175VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO2175VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

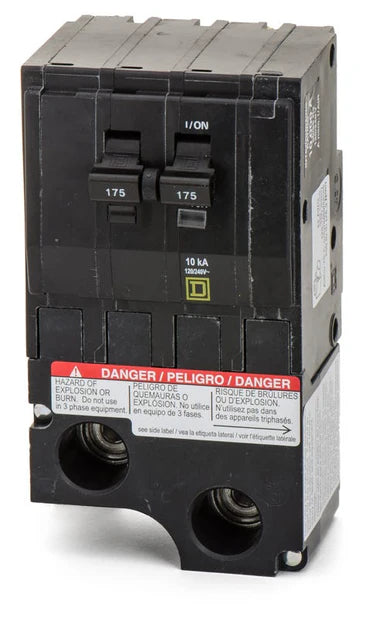

Square D QO2175VH - 175A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
110A 2 Pole Miniature Circuit Breaker
Description
Engineered for demanding electrical systems, the Square D QO2175VH is a 2-pole, 175A miniature circuit breaker rated at 22kAIC. It provides robust thermal-magnetic protection for commercial and industrial applications. This plug-on breaker requires four panel spaces and installs into Square D QO load centers, NQ panelboards, and NQOD panelboards. The box lugs support 1 AWG to 300 kcmil wire. A built-in Visi-Trip indicator allows users to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker, Visual Trip Indicator |
Product FAQs
6 answersHow many panel spaces does the QO2175VH require?
The QO2175VH requires four standard 3/4-inch panel spaces. Because of its large 175A capacity and wire lug requirements, it takes up more room than standard 2-pole QO breakers.
Can the QO2175VH be used as a main breaker?
Yes, this 175A breaker is frequently used as a main breaker in compatible Square D QO load centers, provided the panel bus is rated for 175A or higher.
What does the VH suffix mean in the QO2175VH part number?
The VH suffix indicates a high interrupting capacity. It signifies that the breaker is rated for 22kAIC at 120/240VAC, whereas standard QO breakers are typically rated at 10kAIC.
Is there a bolt-on version of the QO2175VH available?
Yes. If your NQ or NQOD panelboard requires bolt-on connections, you will need the QOB2175VH instead of this plug-on model.
Will the QO2175VH fit in a Square D Homeline load center?
No. QO series breakers are not interchangeable with Homeline series breakers. The QO2175VH is designed specifically for QO load centers, NQ panelboards, and NQOD panelboards.
Does the QO2175VH include a Visi-Trip indicator?
Yes, this breaker features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a highly visible red flag appears to help you quickly identify the faulted circuit.
