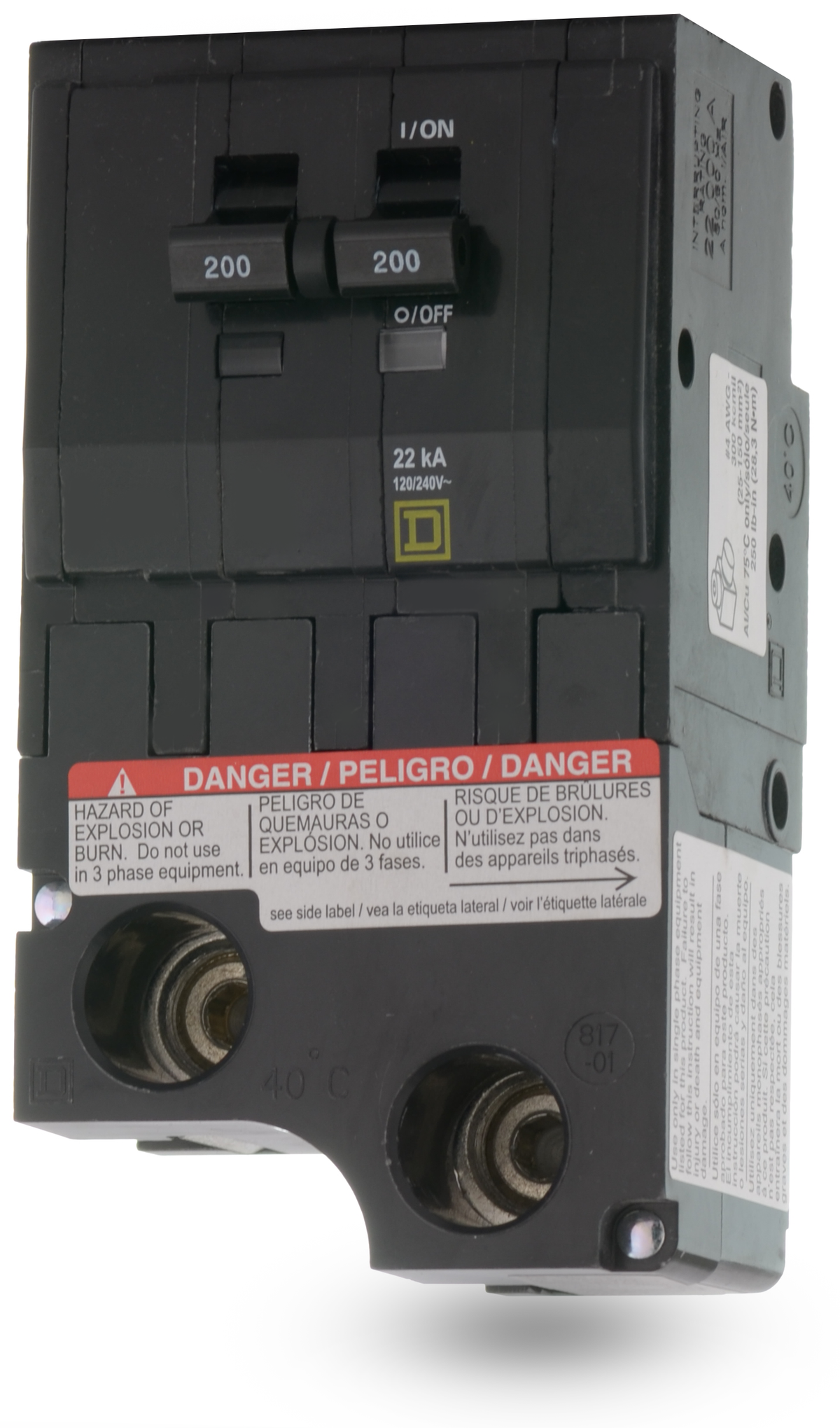

Square D QO2200VH Miniature Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Square D
QO2200VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO2200VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO2200VH - 200A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
110A 2 Pole Miniature Circuit Breaker
Description
Designed for environments requiring elevated fault protection, the QO2200VH is a 200A breaker with a high interrupting capacity. It utilizes thermal-magnetic technology to protect demanding electrical systems. This four-space plug-on breaker installs into Square D QO load centers and NQ panelboards. The box lug terminals accept 1 AWG through 300 kcmil conductors. With a 22 kAIC rating at 120/240V, it offers superior defense against short circuits and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, High Interrupting Capacity, HACR Rated |
Product FAQs
6 answersHow many panel spaces does the QO2200VH require?
Although the breaker body is two poles wide, it requires four panel spaces for installation due to the size of the 200A frame and the large box lugs needed for up to 300 kcmil wire.
What is the recommended tightening torque for the box lugs on the QO2200VH?
The terminal connections should be torqued to 250 lb-in (28.3 N-m) for proper installation of the conductors.
Which electrical panels are compatible with the QO2200VH circuit breaker?
This plug-on breaker is designed for use in Square D QO load centers, NQ panelboards, and Speed-D switchboard distribution panels. It is not compatible with Homeline or QOB bolt-on panels.
Is the QO2200VH suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires motor group combinations.
Does the QO2200VH feature a tripped state indicator?
Yes, it includes the Square D Visi-Trip indicator, which provides a highly visible red flag when the breaker has tripped, making troubleshooting easier.
What does the VH designate in the QO2200VH part number?
The VH indicates a high interrupting rating of 22,000 AIC (22kA) at 120/240V, compared to standard QO breakers which typically have a 10kAIC rating.
