Square D QO225GFI GFCI Miniature Circuit Breaker
- 25A
- 2 Pole
- Plug-On
Square D
QO225GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO225GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

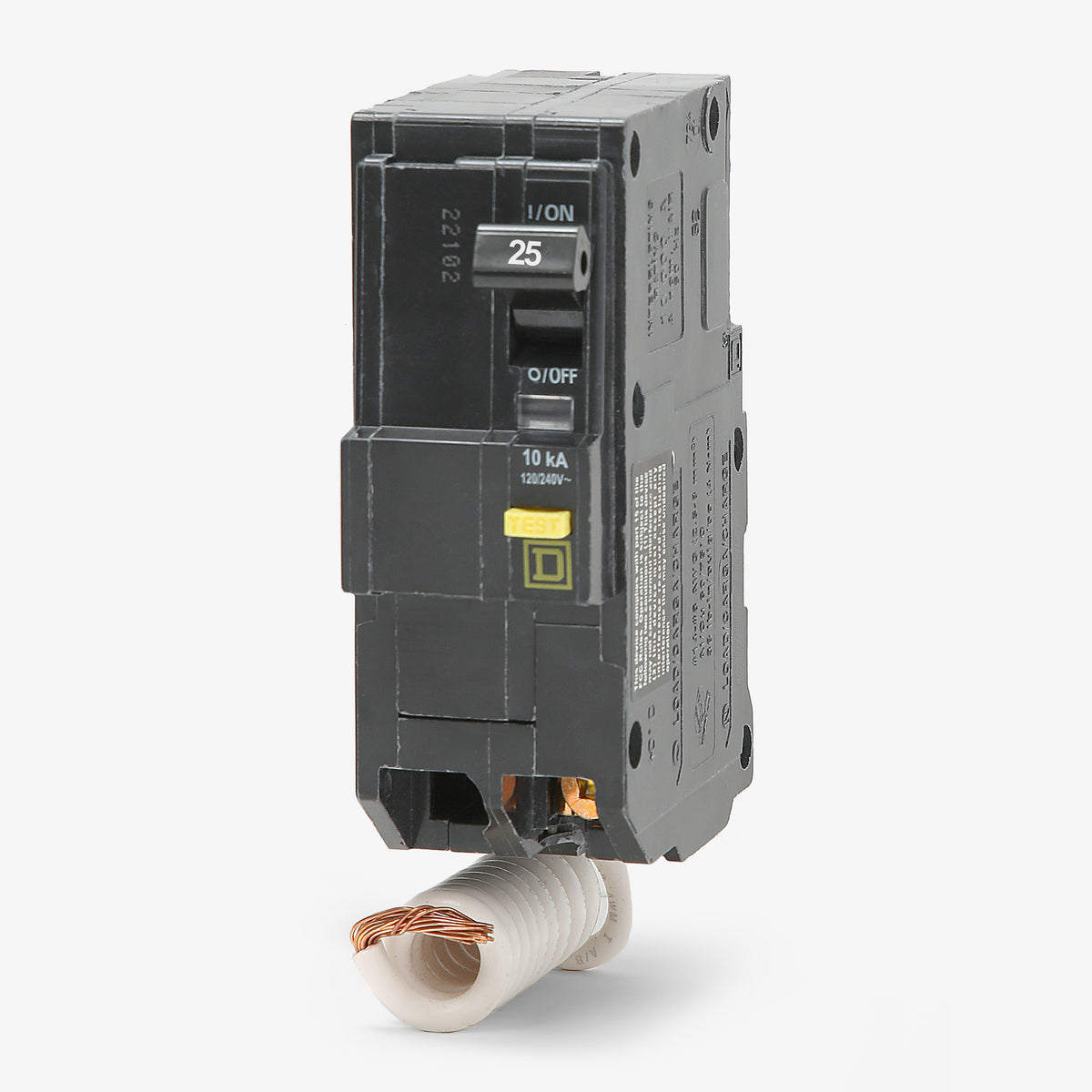

Square D QO225GFI - 25A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
35A GFCI Miniature Circuit Breaker
Description
Delivering Class A ground-fault protection, this 25-amp miniature circuit breaker meets NEC requirements for wet or damp locations. It provides reliable thermal-magnetic tripping for residential and commercial applications. Designed for seamless integration, the unit mounts into standard Square D QO load centers, NQ, and NQOD panelboards. It features a pigtail neutral connection and built-in self-test capabilities to ensure ongoing safety, alongside the signature Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO225GFI |
| Series | QO |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | RoHS, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Self-Test |
Product FAQs
5 answersWhich panelboards are compatible with the QO225GFI?
This breaker is designed for use in Square D QO load centers, NQ panelboards, and NQOD panelboards. It is not compatible with Homeline panels.
How is the neutral connected on this GFCI breaker?
The QO225GFI features a pigtail neutral connection. The coiled white wire must be connected directly to the neutral bus bar in your panel for the ground fault protection circuitry to function.
Can I use this 2-pole GFCI breaker for a straight 240V load that does not have a neutral wire?
Yes. For 240V-only loads, you can connect the two hot wires to the breaker and leave the load neutral terminal empty. However, the breaker's white pigtail must still be connected to the panel's neutral bus bar.
What level of ground fault protection does the QO225GFI provide?
It provides Class A ground fault protection, which trips when a ground fault of 5mA to 6mA is detected, protecting personnel from electrical shock.
Can I install this pigtail breaker in a Plug-On Neutral (PON) panel?
Yes. If your panel is a Plug-On Neutral (PON) QO load center, you can still use this pigtail version by wiring the white pigtail directly to the neutral bar.
