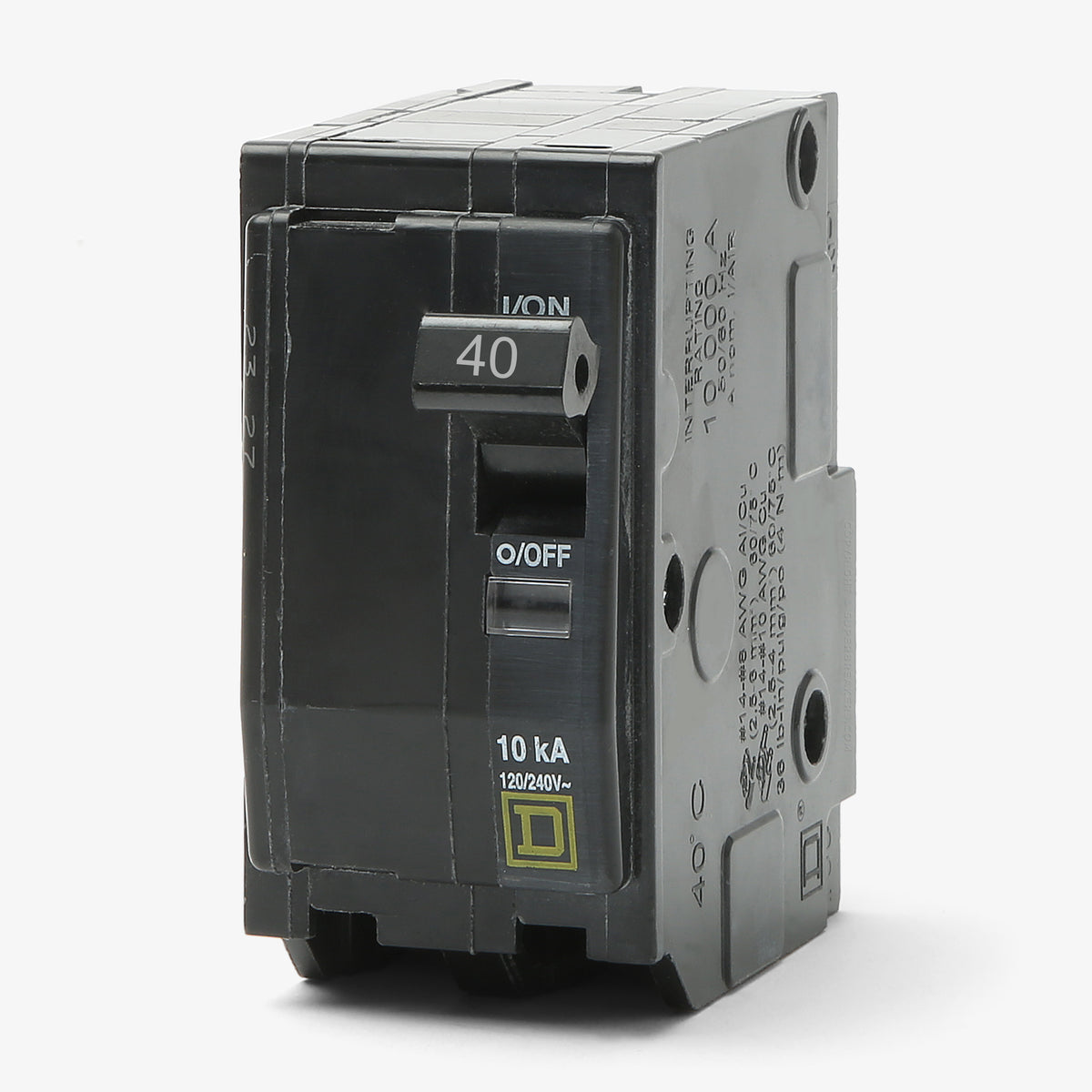

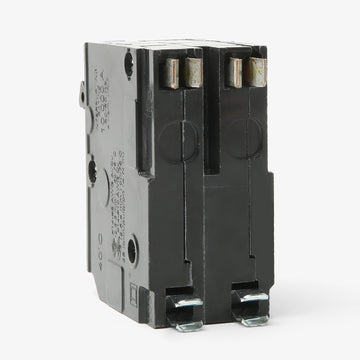

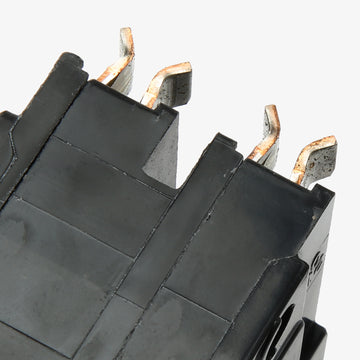

Square D QO240 Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Square D
QO240
Miniature Circuit Breaker
Brand
Square D
SKU
QO240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO240 |
| Series | QO |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards, Speed-D Switchboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, RoHS Compliant |
Sold out
Quantity
Square D QO240 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO240-R |
| Series | QO |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards, Speed-D Switchboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, RoHS Compliant |
Similar Items
40A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
Description
Engineered for residential and commercial applications, this 40A, two-pole miniature circuit breaker delivers reliable thermal-magnetic overcurrent protection. It mounts into Square D QO load centers, NQ panelboards, and Speed-D switchboards using a standard plug-on connection. Rated for 10kAIC at 120/240VAC, the unit features an exclusive Visi-Trip indicator that provides clear visual confirmation when a fault occurs, simplifying troubleshooting and reducing downtime.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO240 |
| Series | QO |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards, Speed-D Switchboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, RoHS Compliant |
Product FAQs
6 answersCan I install the QO240 circuit breaker in a Square D Homeline panel?
No. Although both lines are manufactured by Square D, QO and Homeline load centers use completely different busbar configurations. This plug-on breaker is engineered exclusively for QO load centers, NQ panelboards, NQOD panelboards, and Speed-D switchboards.
How much panel space is required for the QO240?
This 2-pole miniature circuit breaker requires two standard 3/4-inch spaces, taking up a total width of 1.5 inches on the distribution bus.

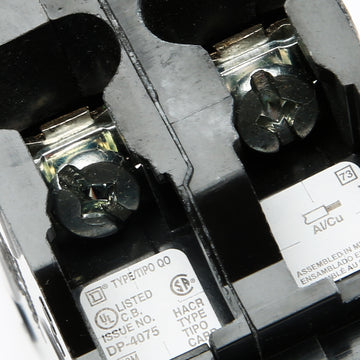

What is the recommended tightening torque for the box lugs?
The box lug terminals on the QO240 should be torqued to 44.3 inch-pounds (5 N.m). This specification applies to both copper and aluminum conductors ranging from 8 AWG to 2 AWG.
How does the Visi-Trip indicator work on this breaker?
The patented Visi-Trip feature is a highly visible red flag that snaps into the breaker window when it trips due to a fault. This provides instant visual confirmation of the tripped circuit without needing to manually test each handle in the panel.
Is this breaker HACR rated for HVAC applications?
Yes. The QO240 carries a HACR rating, which means it is certified to provide safe overcurrent protection for heating, air conditioning, and refrigeration equipment with motor loads.
Does the QO240 have a common trip mechanism?
Yes. It features an internal common trip mechanism. If a short circuit or overload occurs on one leg of a 240V circuit, both poles will open simultaneously. This design prevents single-phasing, which can severely damage connected 240V motors and compressors.
