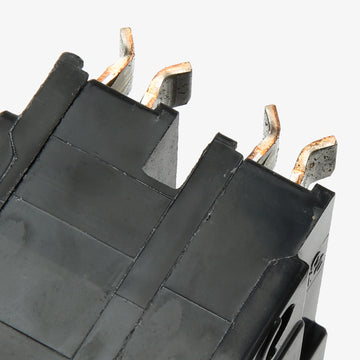

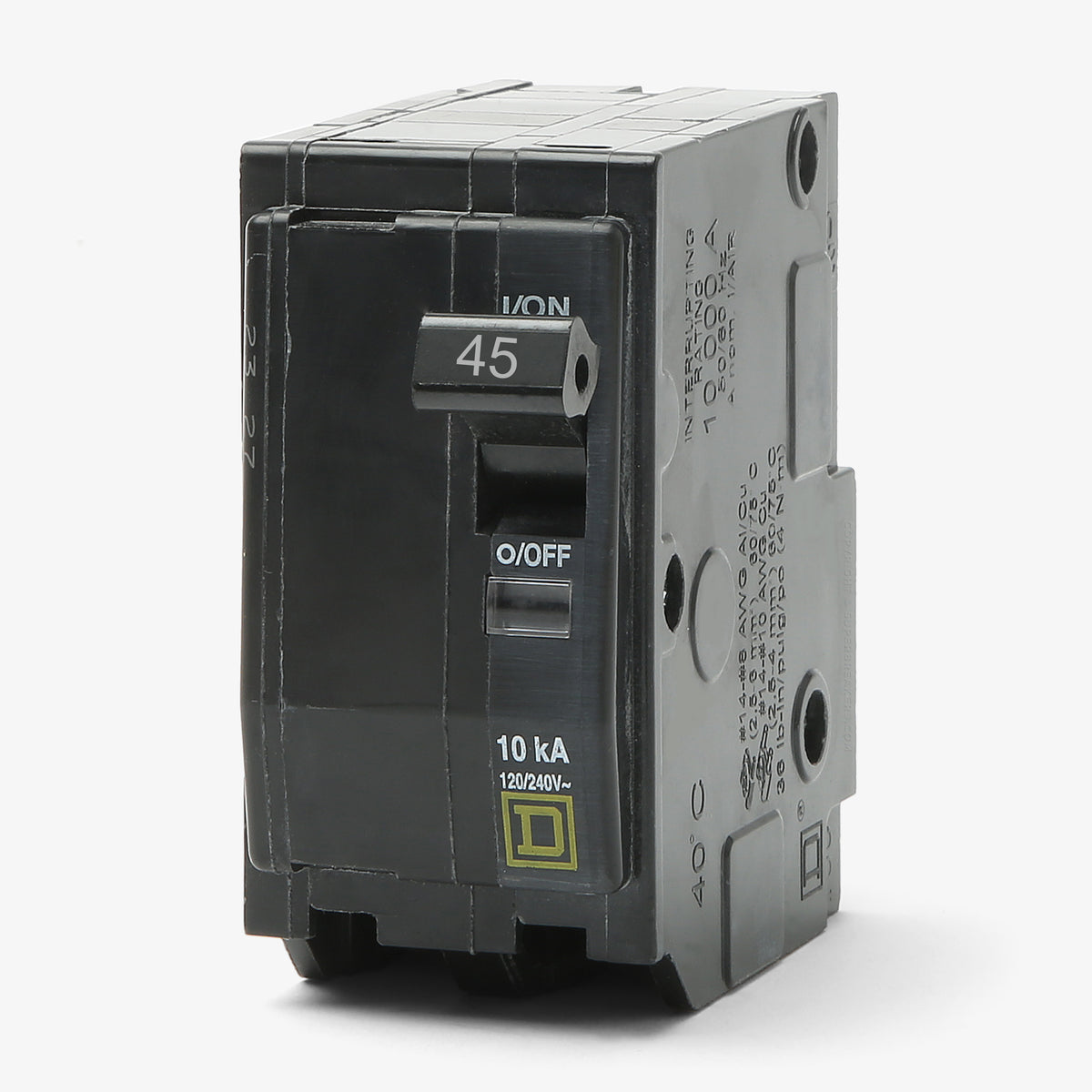

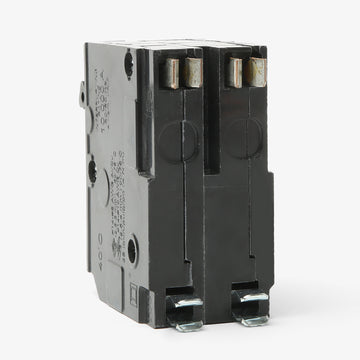

Square D QO245 Miniature Circuit Breaker
- 45A
- 2 Pole
- Plug-On
Square D
QO245
Miniature Circuit Breaker
Brand
Square D
SKU
QO245
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO245 |
| Series | QO |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QO245 - 45A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO245-R |
| Series | QO |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
50A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Providing standard 10kAIC protection, the QO245 is a 45A, two-pole miniature circuit breaker suitable for residential and commercial applications. It utilizes proven thermal-magnetic trip technology to safeguard electrical circuits against overloads and short circuits. Designed for quick installation, this unit plugs into Square D QO load centers, NQ, and NQOD panelboards. It is HACR rated for use with HVAC equipment and includes the Visi-Trip indicator for fast troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO245 |
| Series | QO |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersCan I install this breaker in a Square D Homeline load center?
No. Square D QO circuit breakers feature a 3/4-inch footprint per pole and are not interchangeable with the 1-inch Homeline format. This breaker must be installed in compatible QO load centers, NQ panelboards, or NQOD panelboards.
How many panel spaces does the QO245 require?
This standard two-pole circuit breaker requires two adjacent 3/4-inch spaces in your load center or panelboard.

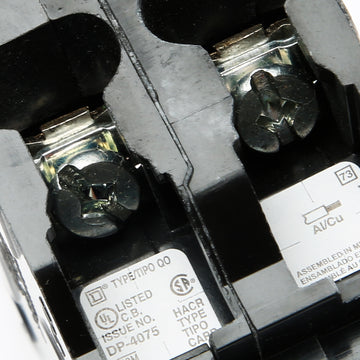

What is the recommended tightening torque for the load terminals?
The box lug terminals on this breaker should be tightened to 44.25 in-lbs (5 N.m) when using the accepted 8 to 2 AWG copper or aluminum wire.
Is there a bolt-on version of this 45-amp breaker available?
Yes. If your commercial panelboard requires a bolt-on connection rather than a plug-in configuration, you will need catalog number QOB245.
Does this breaker feature a tripped indicator?
Yes. It includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent event, the handle snaps to a midpoint position and a highly visible red flag appears in the indicator window, making it easy to quickly identify the faulted circuit.
