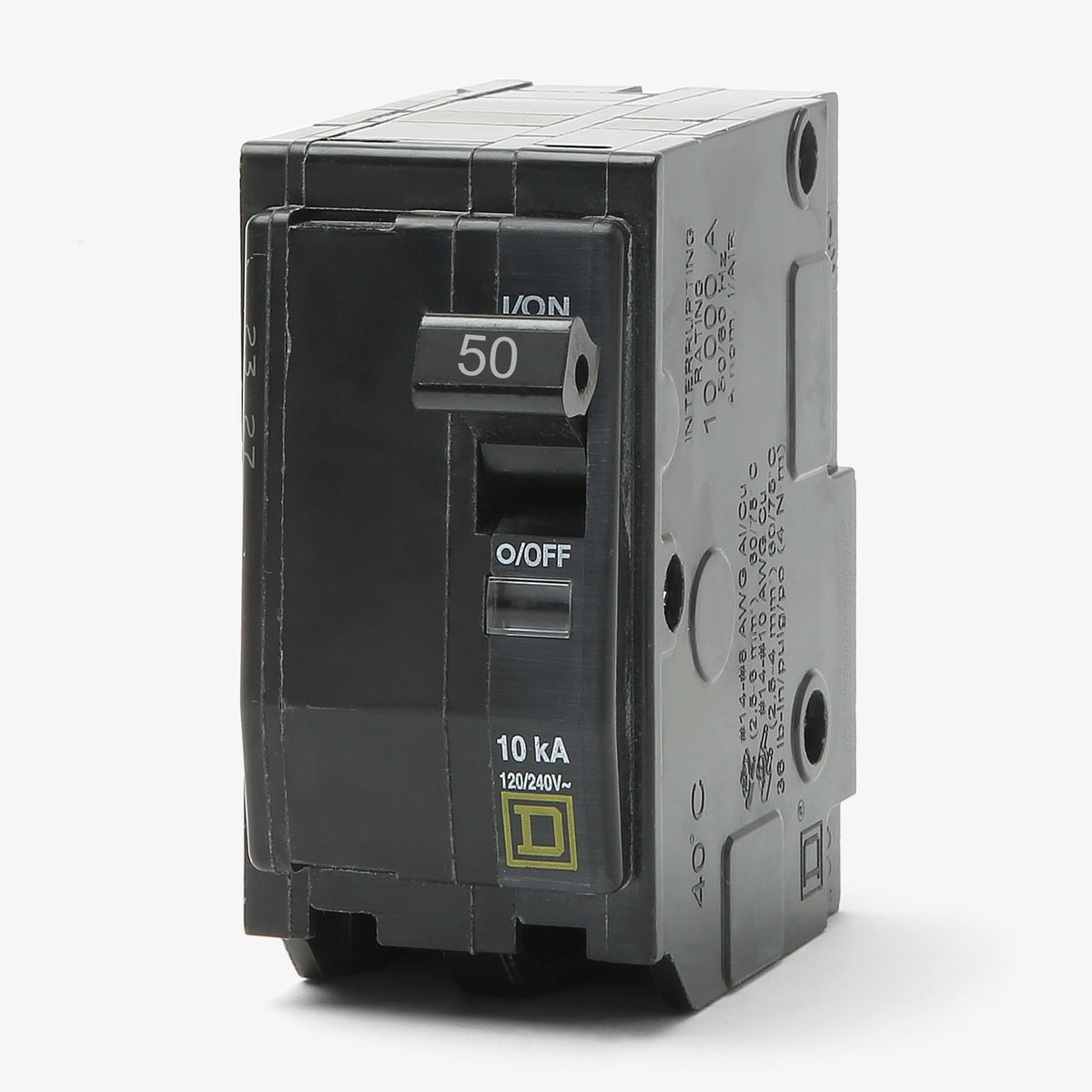

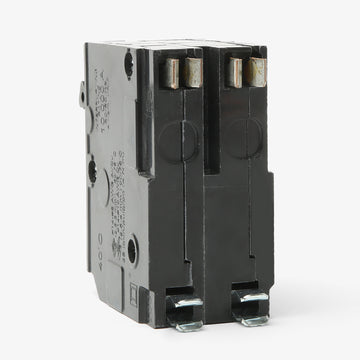

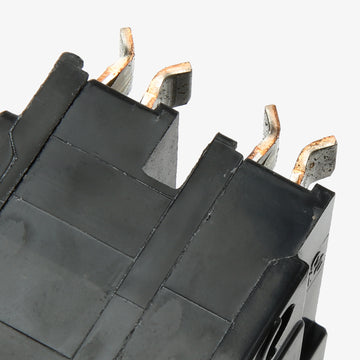

Square D QO250 Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Square D
QO250
Miniature Circuit Breaker
Brand
Square D
SKU
QO250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO250 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO250 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO250 |
| Series | QO |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Sold out
Quantity
Square D QO250 - 50A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO250-R |
| Series | QO |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Similar Items
45A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Built to handle heavier electrical loads, this 50-amp miniature breaker is frequently utilized for residential ranges, HVAC equipment, and subpanels. It fits seamlessly into Square D QO load centers and commercial NQ or NQOD panelboards. Featuring the signature Visi-Trip red indicator flag, users can quickly identify fault conditions without manually testing each switch in the enclosure.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO250 |
| Series | QO |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
6 answersHow many panel spaces does the QO250 breaker require?
This 2-pole breaker requires two standard 3/4-inch spaces in a QO load center or compatible panelboard, occupying a total physical width of 1.5 inches.

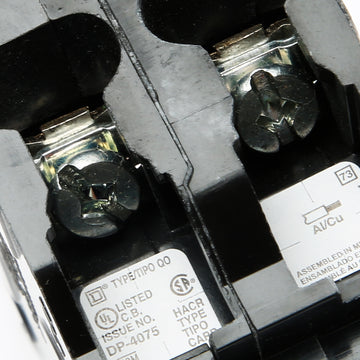

What is the recommended tightening torque for the box lug terminals?
The box lugs on the QO250 should be torqued to 44.3 lb-in (5 N.m) when using 8 AWG to 2 AWG copper or aluminum conductors.
Can I install the QO250 in a Square D Homeline panel?
No. QO series breakers utilize a 3/4-inch width per pole and will not physically fit in Homeline panels, which require 1-inch format HOM breakers. The QO250 is specifically designed for QO load centers, NQ panelboards, and NQOD panelboards.
Is the QO250 HACR rated?
Yes, this unit is HACR rated, making it compliant and suitable for group motor applications like heating, air conditioning, and refrigeration equipment.
Does the QO250 feature a tripped circuit indicator?
Yes, it is equipped with the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, a red flag appears in the indicator window for quick visual identification of the faulted circuit.
What is the difference between the QO250 and the QOB250?
The QO250 is a plug-on circuit breaker. The QOB250 is the bolt-on equivalent, which is utilized when panel specifications require a bolted connection to the bus bar.
