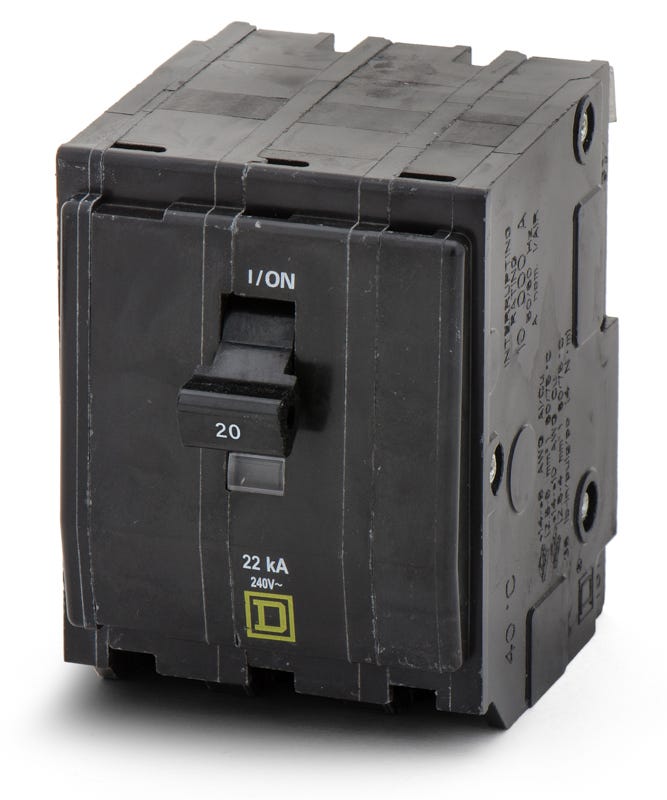

Square D QO320VH Miniature Circuit Breaker
- 20A
- 3 Pole
- Plug-On
Square D
QO320VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO320VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO320VH - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
Description
Built for systems requiring elevated interrupting capacity, this 20-amp component provides reliable thermal-magnetic protection for three-phase commercial and industrial loads. The unit incorporates Square D's signature Visi-Trip indicator to help maintenance personnel quickly spot tripped circuits. Designed for seamless integration, it mounts into standard QO load centers, NQ panelboards, and Speed-D switchboards. Rated at 22kAIC, this VH-series model exceeds standard 10kA limits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO320VH |
| Series | QO |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, Speed-D Switchboard Distribution Panels |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, High Interrupting Capacity |
Product FAQs
5 answersCan I install the QO320VH in a Homeline panel?
No. Square D QO and Homeline breakers are not interchangeable. The QO320VH is designed exclusively for QO load centers, NQ panelboards, and Speed-D switchboards.
Does this breaker require a 3-phase panel?
Yes. As a 3-pole breaker, the QO320VH requires a 3-phase load center or panelboard to properly connect to all three phases.
What does the VH suffix indicate in the QO320VH catalog number?
The VH suffix indicates a Very High interrupting rating. This model provides a 22kAIC rating, which exceeds the 10kAIC rating found on standard QO circuit breakers.
Is there a bolt-on equivalent for the QO320VH?
Yes. If your installation requires bolt-on connections, such as in certain NQ or NQOD panelboards, you will need the QOB320VH instead of this plug-on model.
Does the QO320VH feature a tripped circuit indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips, a highly visible red indicator appears in the window to help you quickly identify the tripped circuit.
