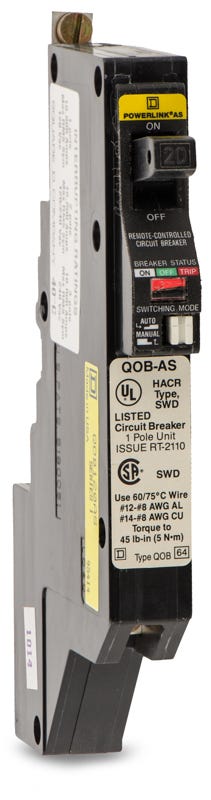

Square D QOB120AS Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Square D
QOB120AS
Miniature Circuit Breaker
Brand
Square D
SKU
QOB120AS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB120AS - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
QOB1201021 - 20A 1 Pole Miniature Circuit Breaker
Description
Integrating automated control into standard power distribution, this 20-amp single-pole device handles remote switching tasks for commercial facilities. It installs seamlessly into Square D Powerlink, NQ, and NQOD panelboards, serving as a functional substitute for the QOB120ASB. Rated for 10kAIC at 120/240VAC, the unit combines standard thermal-magnetic protection with Switching Duty approval and a Visi-Trip flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB120AS |
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards, Powerlink Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Alarm Switch, Handle Padlock Attachment, Shunt Trip |
|---|---|
| Accessories | Auxiliary Switch (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
| Special Features | Remotely Operated |
Product FAQs
7 answersWhich panelboards accept the QOB120AS circuit breaker?
This bolt-on breaker is designed specifically for Square D NQ, NQOD, and Powerlink panelboards. It cannot be installed in standard QO or Homeline plug-on load centers.
What is the difference between QO and QOB circuit breakers?
QO breakers are plug-on devices designed for residential QO load centers, while QOB breakers like the QOB120AS feature a bolt-on connection for secure installation in commercial NQ and NQOD panelboards.
What does the AS suffix indicate on the QOB120AS?
The AS suffix designates this as a Powerlink AS remotely operated circuit breaker. It is engineered for automated control and remote switching applications in commercial facilities.
Is the QOB120AS a direct replacement for the QOB120ASB?
Yes, the QOB120AS serves as a functional substitute for the QOB120ASB when used in compatible Powerlink, NQ, or NQOD panelboards.
How does the QOB120AS indicate a tripped condition?
It features the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, a highly visible red flag appears in the indicator window for rapid identification in a crowded panel.
Does the QOB120AS feature Qwik-Open technology?
Yes, as a 1-pole 20A breaker in the QO and QOB family, it includes Square D's Qwik-Open mechanism. This feature is designed to trip within 1/60th of a second under severe short-circuit conditions.
How does the thermal-magnetic trip mechanism operate on this breaker?
The fixed thermal-magnetic mechanism uses a long-time function to handle mild, prolonged overloads and an instantaneous function to immediately clear severe short circuits.
