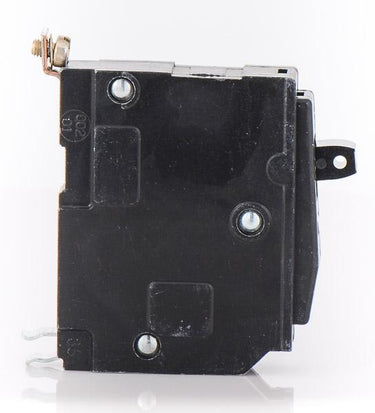

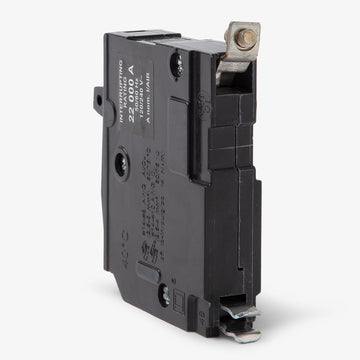

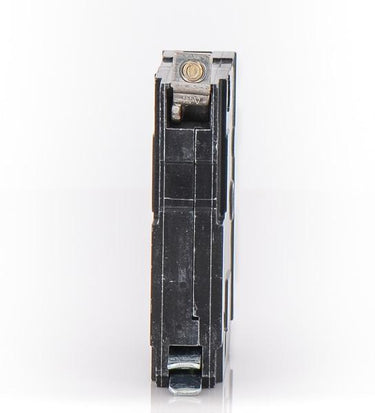

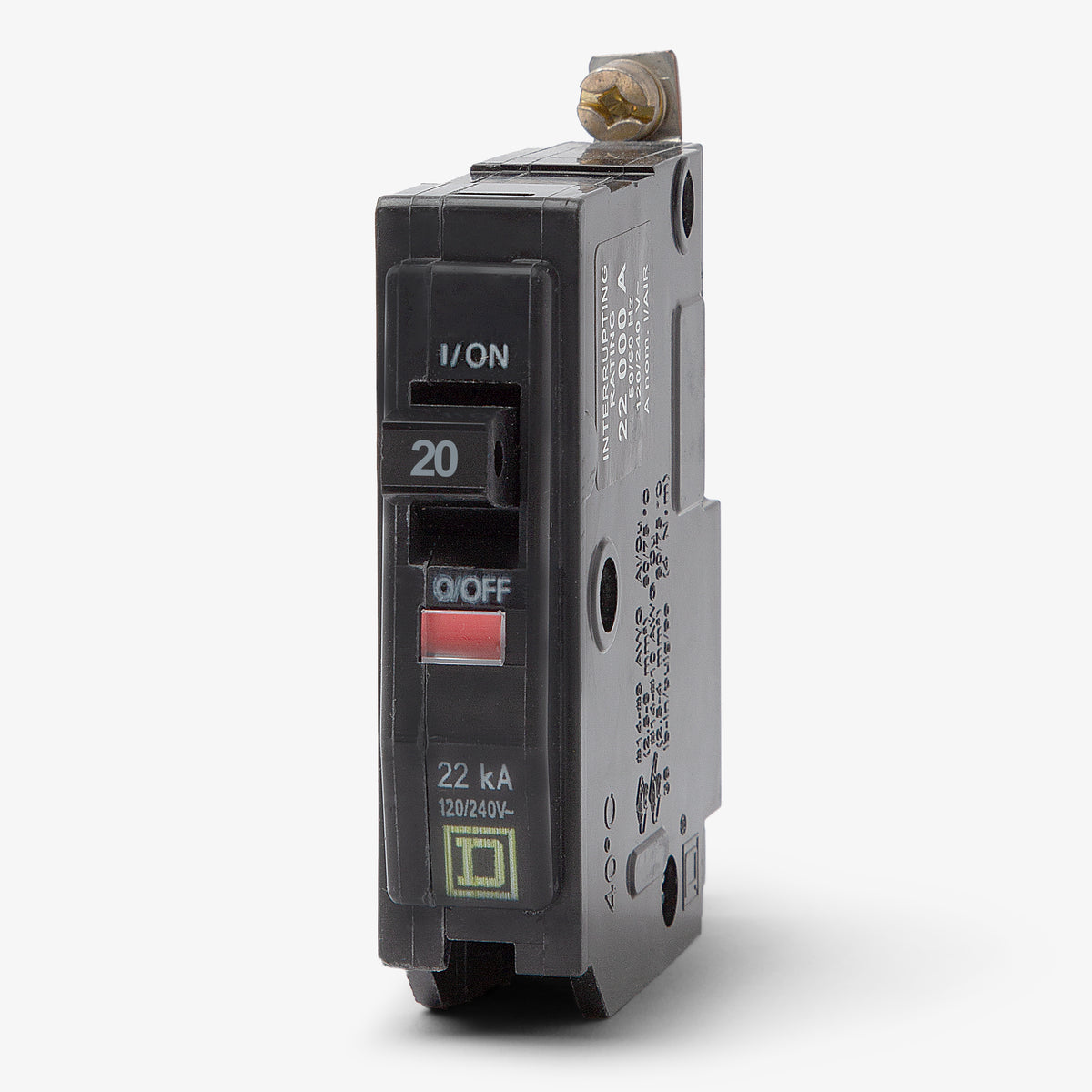

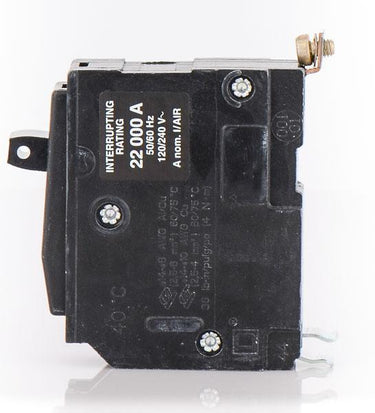

Square D QOB120VH Miniature Circuit Breaker
- 20A
- 1 Pole

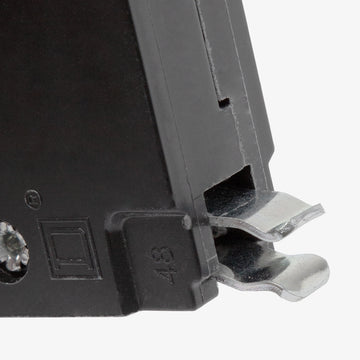

- Bolt-On
Square D
QOB120VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB120VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB120VH - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB120VH - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB120VH |
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, SWD Rated |
Sold out
Quantity
Square D QOB120VH - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB120VH-R |
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, SWD Rated |
Similar Items
15A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
Designed for commercial and industrial applications, this 20A single-pole unit provides essential overcurrent protection. It mounts securely into Square D NQ and legacy NQOD panelboards using a standard bolt-on connection. The 22kAIC interrupt rating at 120/240VAC ensures robust fault clearing, while the signature Visi-Trip indicator allows maintenance personnel to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB120VH |
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, SWD Rated |
Product FAQs
6 answersWill the QOB120VH fit a standard Square D residential load center?
No. Standard residential load centers accept plug-on QO breakers. The QOB120VH features a bolt-on connection designed specifically for commercial NQ and legacy NQOD panelboards.
What is the plug-on equivalent to the QOB120VH?
If your panel requires a plug-on connection rather than a bolt-on mounting, the direct equivalent is the QO120VH.
What does the "VH" suffix indicate on this circuit breaker?
The "VH" designates a very high interrupting rating. While standard QOB models provide a 10kAIC rating, the QOB120VH delivers a 22kAIC interrupting capacity.
Is this breaker rated for switching duties and HVAC equipment?
Yes. It is both SWD (Switching Duty) rated for controlling 120V lighting loads and HACR rated for use with heating, air conditioning, and refrigeration equipment.
What is the terminal tightening torque for the QOB120VH?

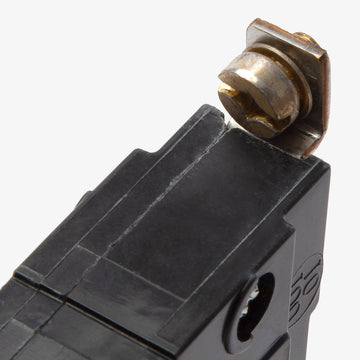

The pressure plate terminal requires a tightening torque of 40.7 lbf-in (4.6 N-m).
Can I terminate two wires on this breaker?
Yes. The pressure plate terminal is rated to accept a single 14 to 8 AWG wire (aluminum or copper), or up to two 14 to 10 AWG copper wires.
