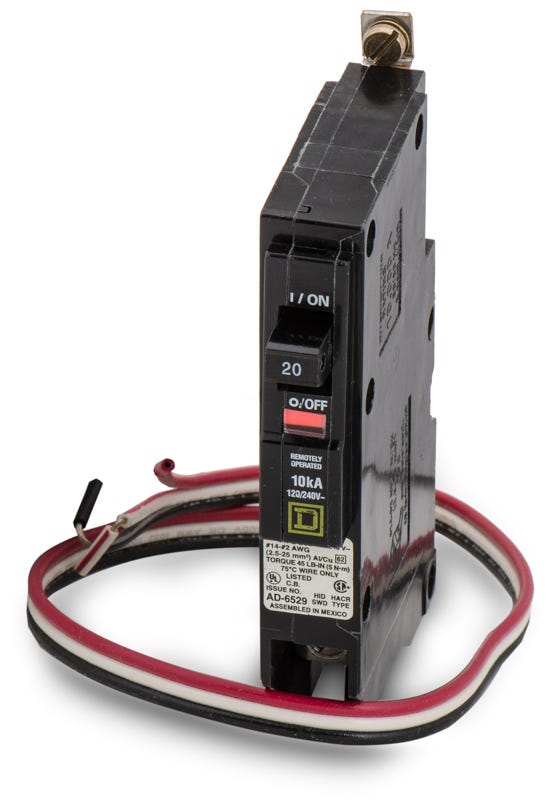

Square D QOB120PL Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Square D
QOB120PL
Miniature Circuit Breaker
Brand
Square D
SKU
QOB120PL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB120PL - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
QOB1201021 - 20A 1 Pole Miniature Circuit Breaker
Description
Integrating remote switching capabilities with standard overcurrent protection, this 20A single-pole breaker is essential for automated facility management. It installs exclusively into Square D Powerlink panelboards, utilizing a secure bolt-on connection for commercial environments. The internal mechanism allows facility managers to program and control lighting zones remotely, while the traditional thermal-magnetic elements provide reliable safety.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB120PL |
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Powerlink Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, RoHS |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Powerlink (Remotely Operated), Visual Trip Indicator |
Product FAQs
4 answersWhat does the PL suffix indicate on the QOB120PL circuit breaker?
The PL designation means this is a Powerlink remotely operated breaker. It integrates an internal motor mechanism for automated switching of lighting zones, typically controlled by a facility management system.
Which panelboards accept the QOB120PL breaker?
This bolt-on breaker is designed exclusively for Square D Powerlink lighting control panels and compatible NQOD panelboards.
Is the QOB120PL rated for HVAC equipment?
Yes, this breaker carries an HACR rating, approving it for use with heating, air conditioning, and refrigeration applications.
Does the remote switching feature override the thermal-magnetic protection?
No. The remote operation is strictly for automated control. The breaker retains its fixed thermal-magnetic elements to provide reliable long-time and instantaneous trip protection during overloads or short circuits.
