Square D QOB125-1021 QOB1251021 - 25A 1 Pole Miniature Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Square D
QOB125-1021
QOB1251021 - 25A 1 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB125-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB1251021 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QOB1201021 - 20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description

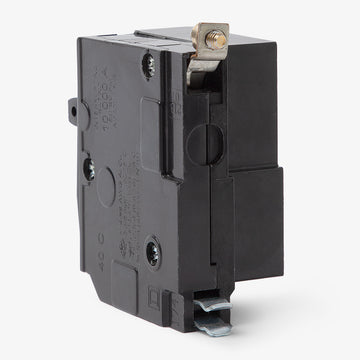

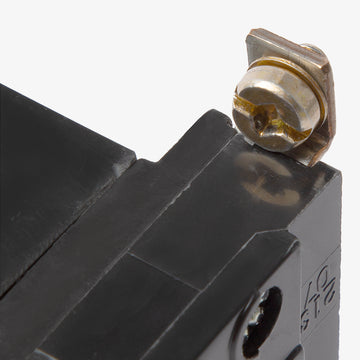

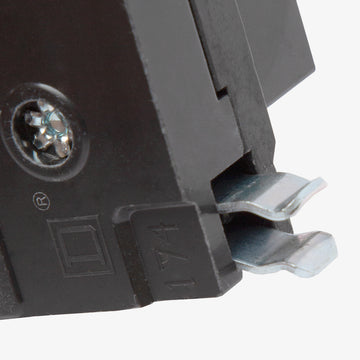

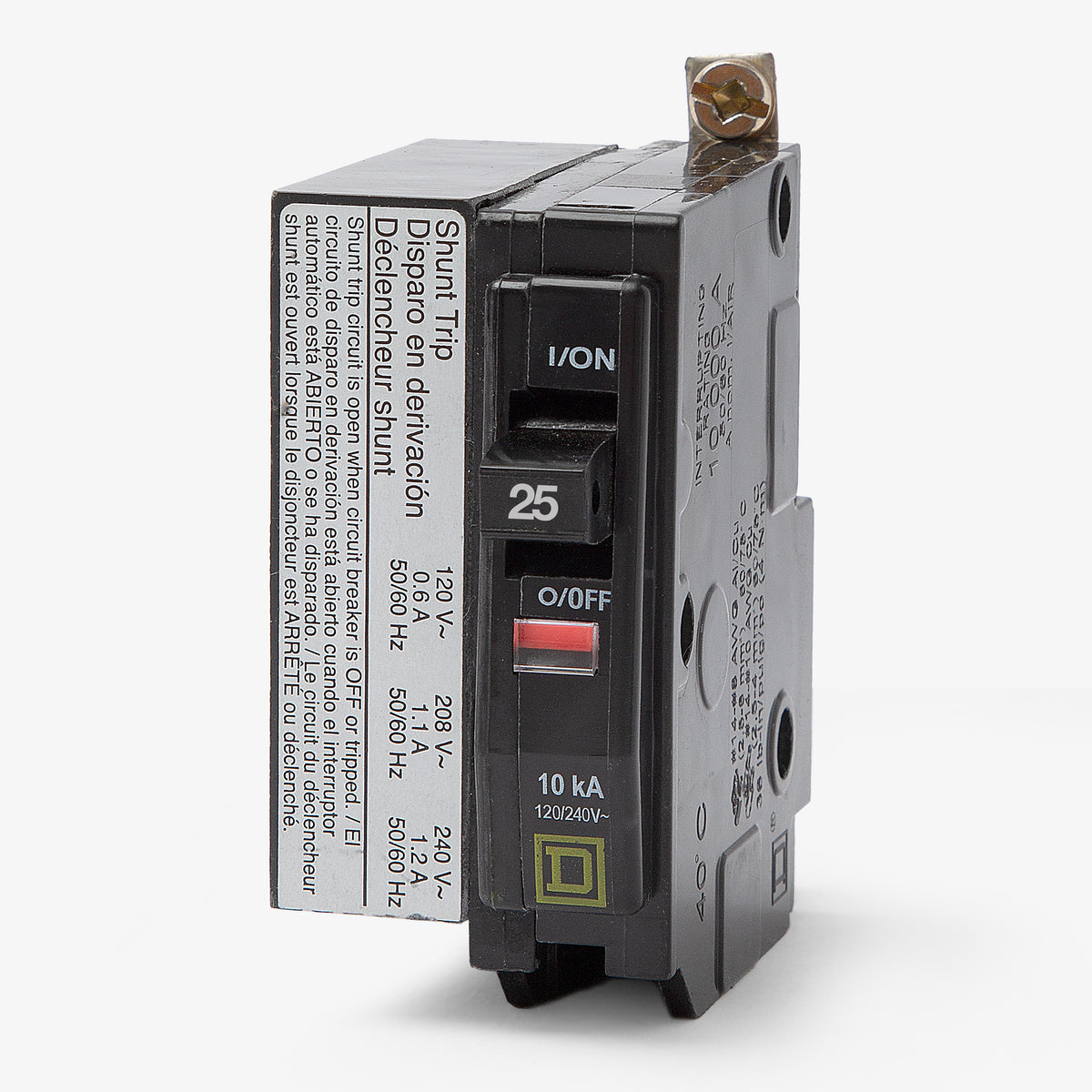

A versatile solution for commercial systems, the Square D QOB125-1021 is a single-pole, 25-amp miniature circuit breaker. It provides thermal-magnetic overload and short-circuit protection. This unit is designed to install into Square D NQ and NQOD panelboards via a sturdy bolt-on connection. It accepts 14-8 AWG wire sizes. Rated for 10kAIC at 120/240VAC, this breaker features a factory-installed shunt trip for remote operation and a Visi-Trip indicator for fast fault identification.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the -1021 suffix indicate on the QOB125-1021?
The -1021 suffix denotes a factory-installed shunt trip accessory. This allows the breaker to be tripped remotely via a control signal operating at 120V to 240V AC.
How many panel spaces are required to mount the QOB125-1021?
This unit requires two panel spaces. The single-pole breaker occupies one space, and the attached shunt trip module requires an adjacent space.
Can the QOB125-1021 be installed in a standard QO residential load center?
No. The QOB series utilizes a bolt-on mounting mechanism designed specifically for commercial NQ and NQOD panelboards. Standard QO load centers require plug-on breakers.
How do I wire the shunt trip module on this breaker?
The shunt trip module has two dedicated terminals. To enable remote tripping, connect a 120V to 240V AC control voltage circuit to these terminals. When energized, the module will mechanically trip the breaker.
How can I quickly identify if the QOB125-1021 has tripped?
This breaker features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent event or a remote shunt trip signal, a highly visible red indicator appears in the breaker window.
What is the plug-on equivalent of the QOB125-1021?
For applications requiring a plug-on connection, such as standard QO load centers, the equivalent breaker is the Square D QO125-1021.
