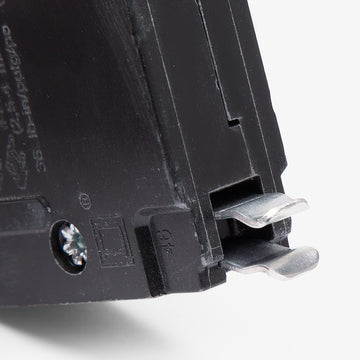

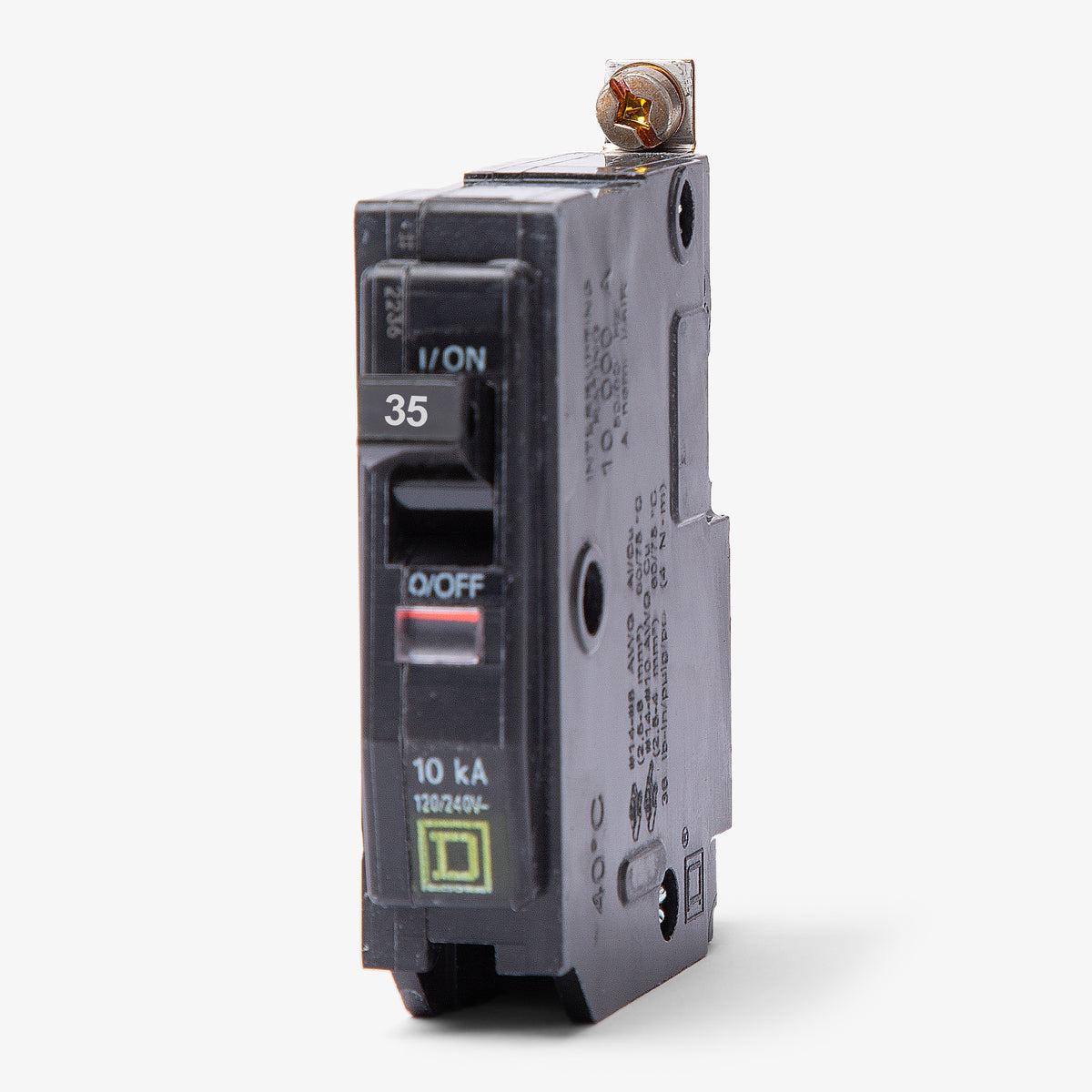

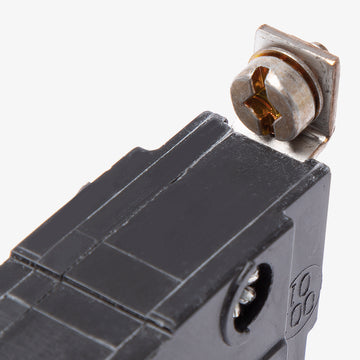

Square D QOB135 Miniature Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Square D
QOB135
Miniature Circuit Breaker
Brand
Square D
SKU
QOB135
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB135 - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
A dependable choice for commercial electrical distribution, the QOB135 offers 35 amps of thermal-magnetic overcurrent protection. This single-pole miniature circuit breaker utilizes a bolt-on mounting style to provide a secure, vibration-resistant connection. It is fully compatible with Square D NQ and NQOD panelboards. Rated for 10kAIC at 120/240VAC and 5kA at 48VDC, the unit handles standard fault currents while featuring the highly visible Visi-Trip indicator for rapid troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB135 |
| Series | QOB |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
4 answersCan I install the QOB135 in a standard Square D QO load center?
No. The QOB135 features a bolt-on connection designed specifically for NQ and NQOD panelboards. For a standard QO load center, you will need the plug-on equivalent, catalog number QO135.
What is the difference between the QOB135 and the QO135?
Both are 35A, single-pole breakers with identical electrical ratings and thermal-magnetic trip functions. The difference is the mounting style: the QOB135 is a bolt-on breaker for commercial NQ and NQOD panelboards, while the QO135 is a plug-on breaker for residential and commercial QO load centers.
Is the QOB135 suitable for HVAC applications?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires HACR-rated overcurrent protection.
How can I easily identify if the QOB135 has tripped?
This breaker is equipped with Square D's Visi-Trip technology. When a fault or overload causes the breaker to trip, the handle snaps to a center position and a bright red indicator appears, making it easy to spot in a fully populated NQ or NQOD panelboard.
