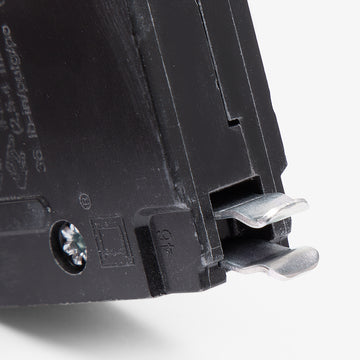

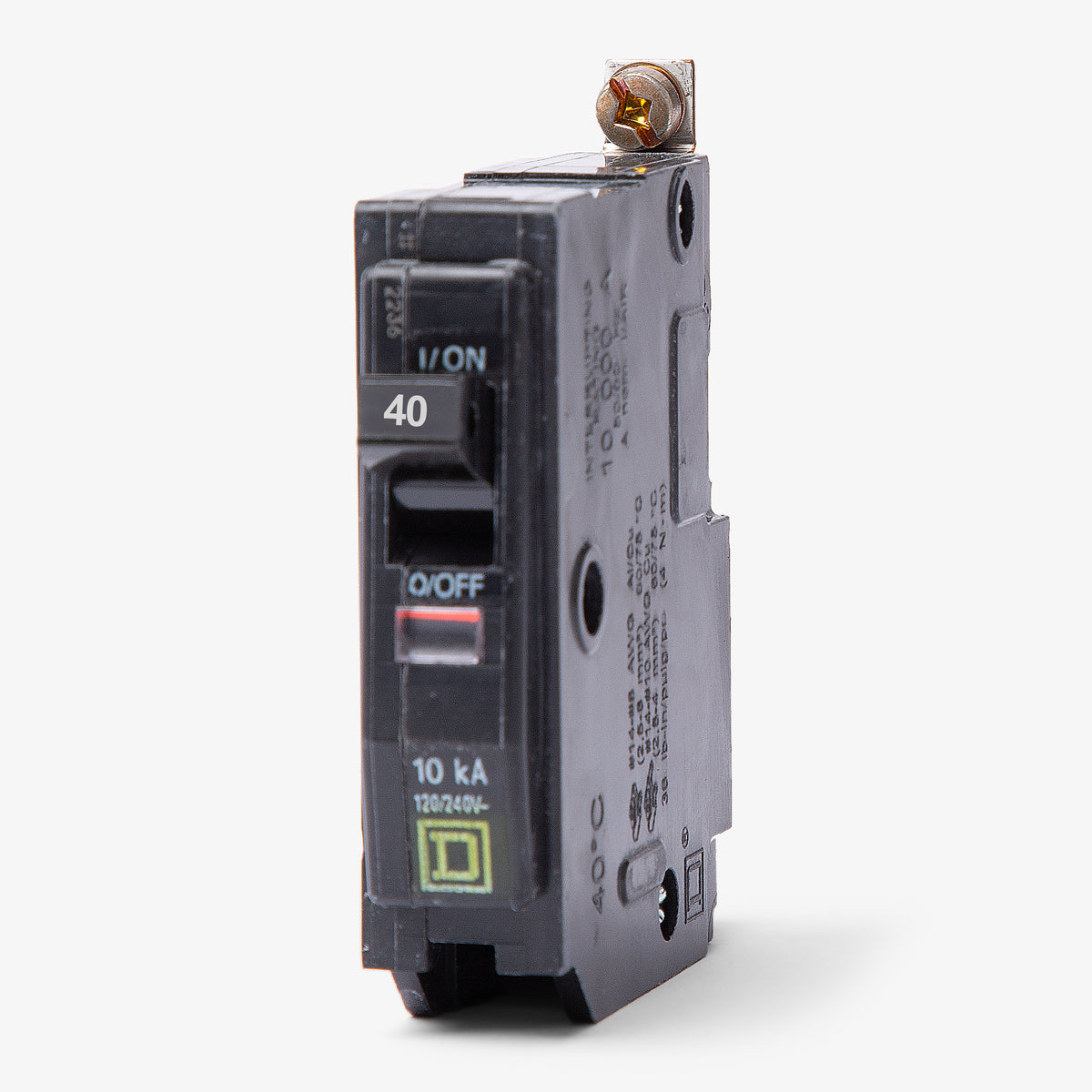

Square D QOB140 Miniature Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Square D
QOB140
Miniature Circuit Breaker
Brand
Square D
SKU
QOB140
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB140 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB140 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB140 |
| Series | QOB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Sold out
Quantity
Square D QOB140 - 40A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB140-R |
| Series | QOB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Similar Items
35A 1 Pole Miniature Circuit Breaker
50A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
The QOB140 is a single-pole, 40A miniature circuit breaker from Square D. Built for commercial and industrial systems, it delivers dependable thermal-magnetic protection for branch circuits. This unit features a secure bolt-on mounting style, ensuring a stable connection. It is designed to install into Square D NQ and NQOD panelboards, accepting 8-2 AWG wiring. Rated at 10 kAIC at 120/240VAC, it includes the exclusive Visi-Trip indicator for clear visual identification of tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB140 |
| Series | QOB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
7 answersCan I install the QOB140 in a standard Square D QO load center?
No. The QOB140 features a bolt-on connection designed specifically for Square D NQ and NQOD panelboards. It will not fit in standard QO load centers, which require plug-on circuit breakers.
What is the recommended tightening torque for the terminals on the QOB140?

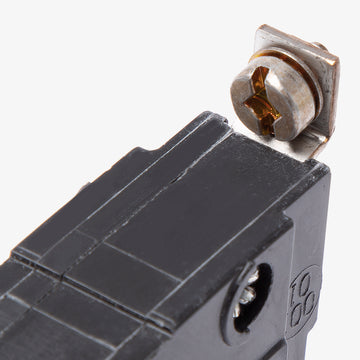

The box lugs on this breaker should be torqued to 44.3 lb-in (5 N.m) when securing 8-2 AWG copper or aluminum wire.
Is the QOB140 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific circuit protection designation.
Are there direct alternatives to the QOB140 with higher interrupting ratings?
Yes. If your panel requires a higher fault current rating, you can substitute the QOB140VH, which provides 22kAIC, or the QHB140, which is rated for 65kAIC at 120/240VAC.
How can I easily identify if the QOB140 has tripped in a crowded panel?
This breaker features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle snaps to a center position and a highly visible red indicator flag appears.
Can the QOB140 be used for switching fluorescent lighting loads?
No. SWD (Switching Duty) ratings are only applied to 15A and 20A circuit breakers. A 40A breaker like the QOB140 is not SWD rated and should not be used as a switch for fluorescent lighting circuits.
Does this breaker support direct current (DC) applications?
Yes, alongside its AC ratings, the QOB140 is rated for 48VDC with a 5kA interrupting capacity, making it suitable for compatible low-voltage DC control and distribution circuits.
