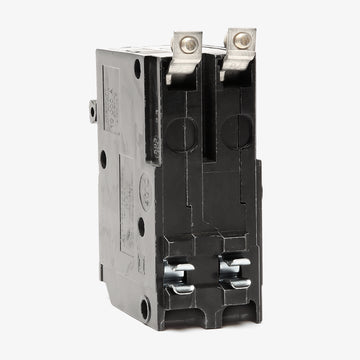

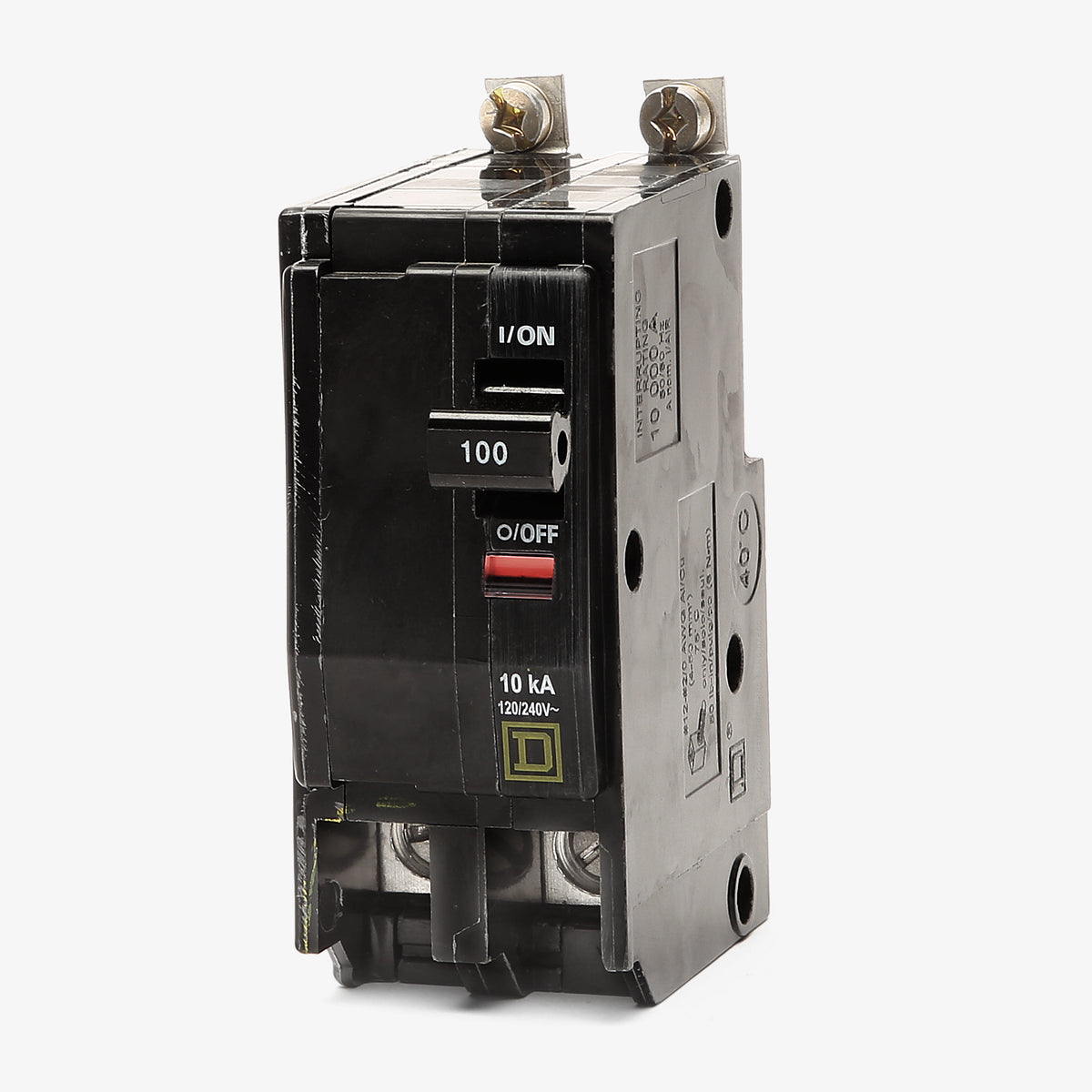

Square D QOB2100 Miniature Circuit Breaker
- 100A
- 2 Pole

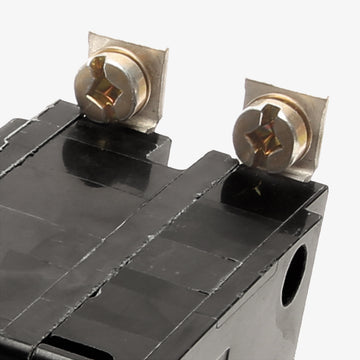

- Bolt-On
Square D
QOB2100
Miniature Circuit Breaker
Brand
Square D
SKU
QOB2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB2100 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB2100 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB2100 |
| Series | QOB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | QOB2100-R |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Sold out
Quantity
Square D QOB2100 - 100A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB2100 |
| Series | QOB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | QOB2100-R |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Similar Items
QOB21001021 - 100A 2 Pole Miniature Circuit Breaker
QOB21001042 - 100A 2 Pole Miniature Circuit Breaker
110A 2 Pole Miniature Circuit Breaker
Description
Built for heavy-duty commercial applications, the Square D QOB2100 delivers 100A of thermal-magnetic protection in a two-pole configuration. It features a common trip mechanism and the highly visible Visi-Trip red indicator, which helps facility managers quickly locate tripped circuits. The breaker installs into NQ and NQOD panelboards via a secure bolt-on mounting system. Its box lug terminals accept 4 to 2/0 AWG wire. Rated at 10kAIC for 120/240VAC systems, it is fully HACR certified.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB2100 |
| Series | QOB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |

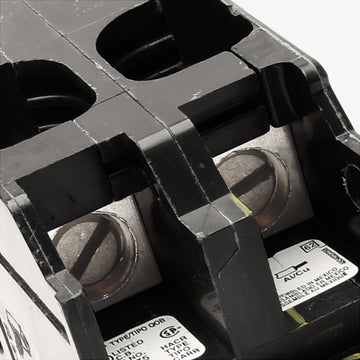

| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | QOB2100-R |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
5 answersWhat panelboards are compatible with the QOB2100?
This bolt-on circuit breaker is designed specifically for Square D NQ and NQOD panelboards. It cannot be installed in standard QO residential load centers, which require plug-on mounting.
What is the difference between the QOB2100 and the QO2100?
The QOB2100 uses a bolt-on mounting mechanism for commercial NQ and NQOD panelboards. The QO2100 is the plug-on equivalent designed for residential Square D QO load centers.
How many panel spaces does the QOB2100 require?
As a 100-amp, 2-pole miniature circuit breaker, it occupies two standard spaces in your panelboard bus.
Is the QOB2100 breaker HACR rated?
Yes, it is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific certification.
Does the QOB2100 feature a Visi-Trip indicator?
Yes, this breaker includes the Square D Visi-Trip red indicator, which provides clear visual confirmation of a tripped circuit to help you quickly identify faults.
