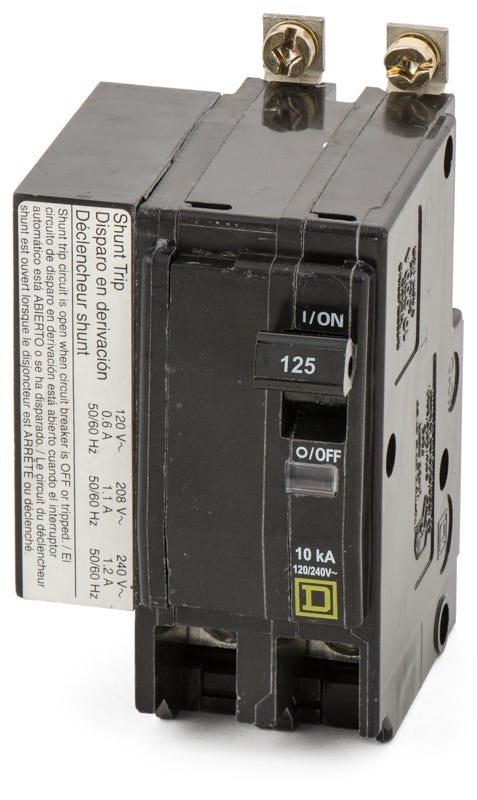

Square D QOB2125-1021 QOB21251021 - 125A 2 Pole Miniature Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Square D
QOB2125-1021
QOB21251021 - 125A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB2125-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB21251021 - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
Description
Delivering 125A of thermal-magnetic protection, the Square D QOB2125-1021 is built for commercial distribution. This two-pole breaker is rated for 120/240VAC and provides a 10kAIC interrupting capacity. It installs into Square D NQ and NQOD panelboards, utilizing a bolt-on mounting style for a secure connection. The unit accepts 4 AWG to 2/0 AWG wiring via box lugs. A factory-installed shunt trip allows the breaker to be opened remotely, making it ideal for emergency stop applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB2125-1021 |
| Series | QOB |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the -1021 suffix indicate on the QOB2125-1021?
The -1021 suffix means this breaker includes a factory-installed 120/240V AC shunt trip. This accessory allows the breaker to be opened remotely via a control signal from a push-button or pilot device.
How many panel spaces does this breaker occupy?
Although it is a 2-pole breaker, the QOB2125-1021 requires 3 panel spaces. The factory-installed shunt trip occupies the additional space.
Which panelboards accept the QOB2125-1021?
This bolt-on breaker is compatible with Square D NQ and NQOD panelboards. It is not compatible with standard QO load centers, which require plug-on connections.
What wire sizes are compatible with the terminals on this breaker?
The box lugs on this breaker accept 4 AWG to 2/0 AWG copper or aluminum conductors.
Is the QOB2125-1021 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
How can I tell if this breaker has tripped?
It features the Square D Visi-Trip indicator, which displays a highly visible red flag in the window when the breaker has tripped, making it easy to identify in a crowded panelboard.
Are the trip settings adjustable on this breaker?
No, the QOB2125-1021 features fixed thermal-magnetic trip settings for both long-time and instantaneous functions.
