Square D QOB225EPD GFEP Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Square D
QOB225EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QOB225EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

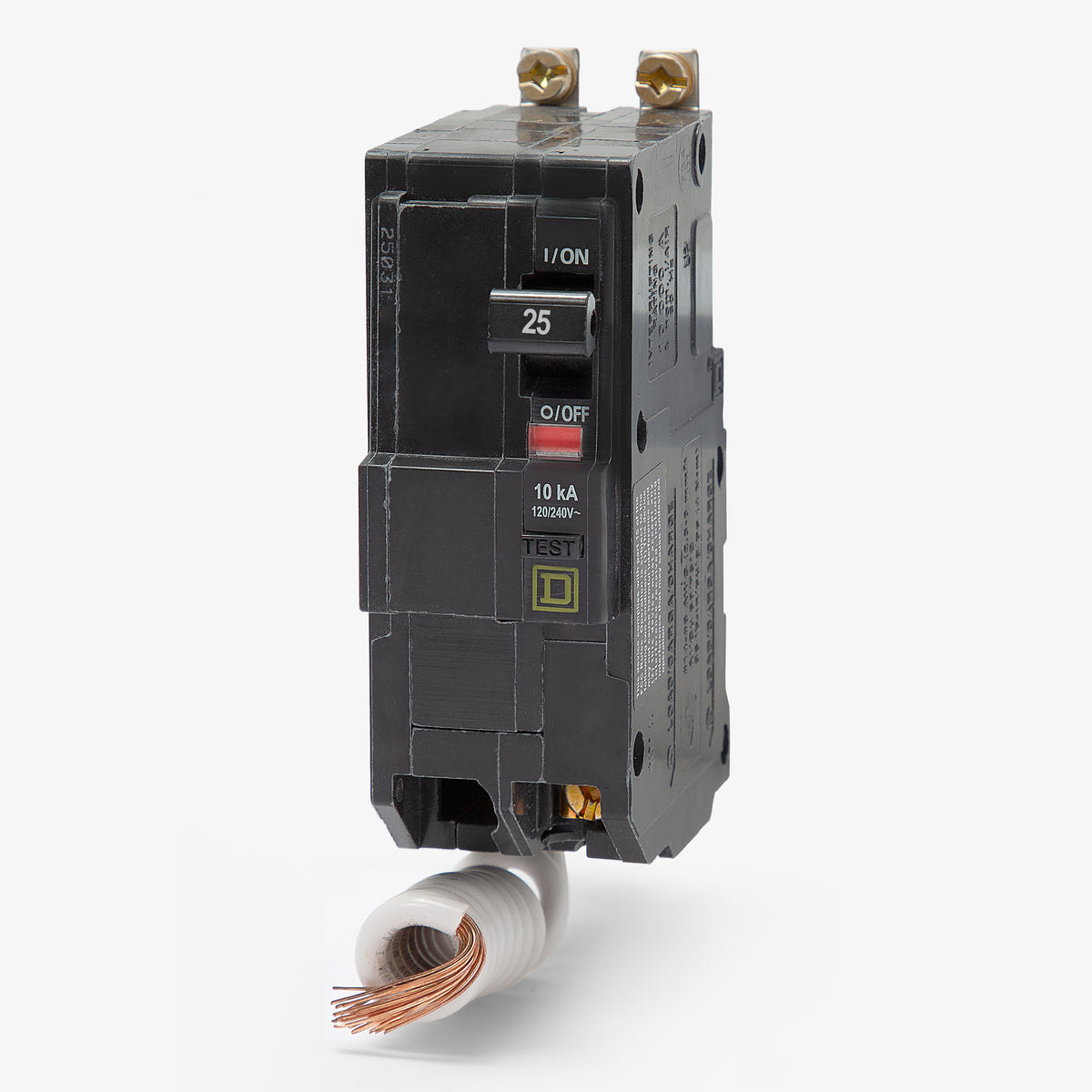

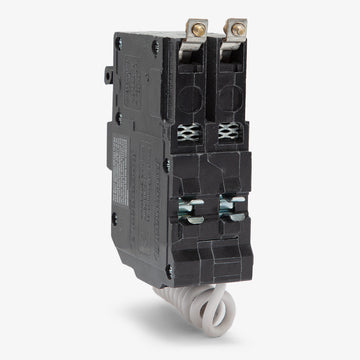

Square D QOB225EPD - 25A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
40A GFEP Miniature Circuit Breaker
Description
Rated for 25 amps, the Square D QOB225EPD is a 2-pole equipment protection device. It utilizes a 30mA ground fault threshold to protect machinery in commercial facilities. This unit mounts securely into Square D NQ and NQOD panelboards via a reliable bolt-on connection. Pressure plate terminals accept 14-8 AWG aluminum or copper wiring. Operating at 120/240VAC with a 10kAIC capacity, it combines long-time and instantaneous trip functions. The Visi-Trip indicator simplifies maintenance.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB225EPD |
| Series | QOB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|

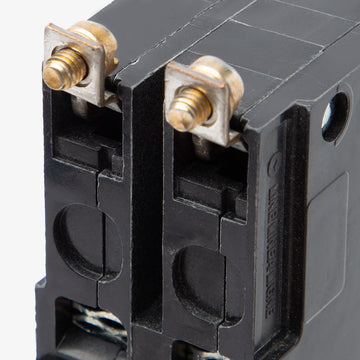

| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Product FAQs
6 answersCan I install the QOB225EPD in a standard Square D QO load center?
No. The QOB225EPD is a bolt-on circuit breaker designed specifically for Square D NQ and NQOD panelboards. Standard QO load centers require plug-on QO breakers.
What does EPD mean, and how does it differ from a standard GFCI breaker?
EPD stands for Equipment Protection Device. The QOB225EPD has a 30mA ground fault trip threshold designed to protect equipment, such as heat trace cables or well pumps, from damage. It is not designed for personnel protection, which requires a 5mA Class A GFCI breaker.
What is the recommended terminal torque for the QOB225EPD?
The wire binding screws on this 25A QOB breaker should be torqued to 36 lb-in (4 N.m) for both aluminum and copper wiring.

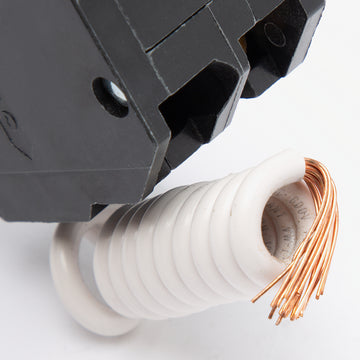

How is the pigtail neutral on the QOB225EPD connected?
The white pigtail wire must be connected directly to the panelboard neutral bar. This connection is required to power the breaker internal ground fault sensing circuitry.
How can I tell if the QOB225EPD has tripped due to a fault?
This breaker features the Square D Visi-Trip indicator. When the breaker trips, the handle moves to the center position and a highly visible red flag appears in the indicator window.
Does the QOB225EPD include a push-to-test feature?
Yes, this equipment protection device includes a built-in test button. Pressing the button simulates a ground fault to verify the 30mA sensing circuitry and mechanical trip mechanism are functioning properly.
