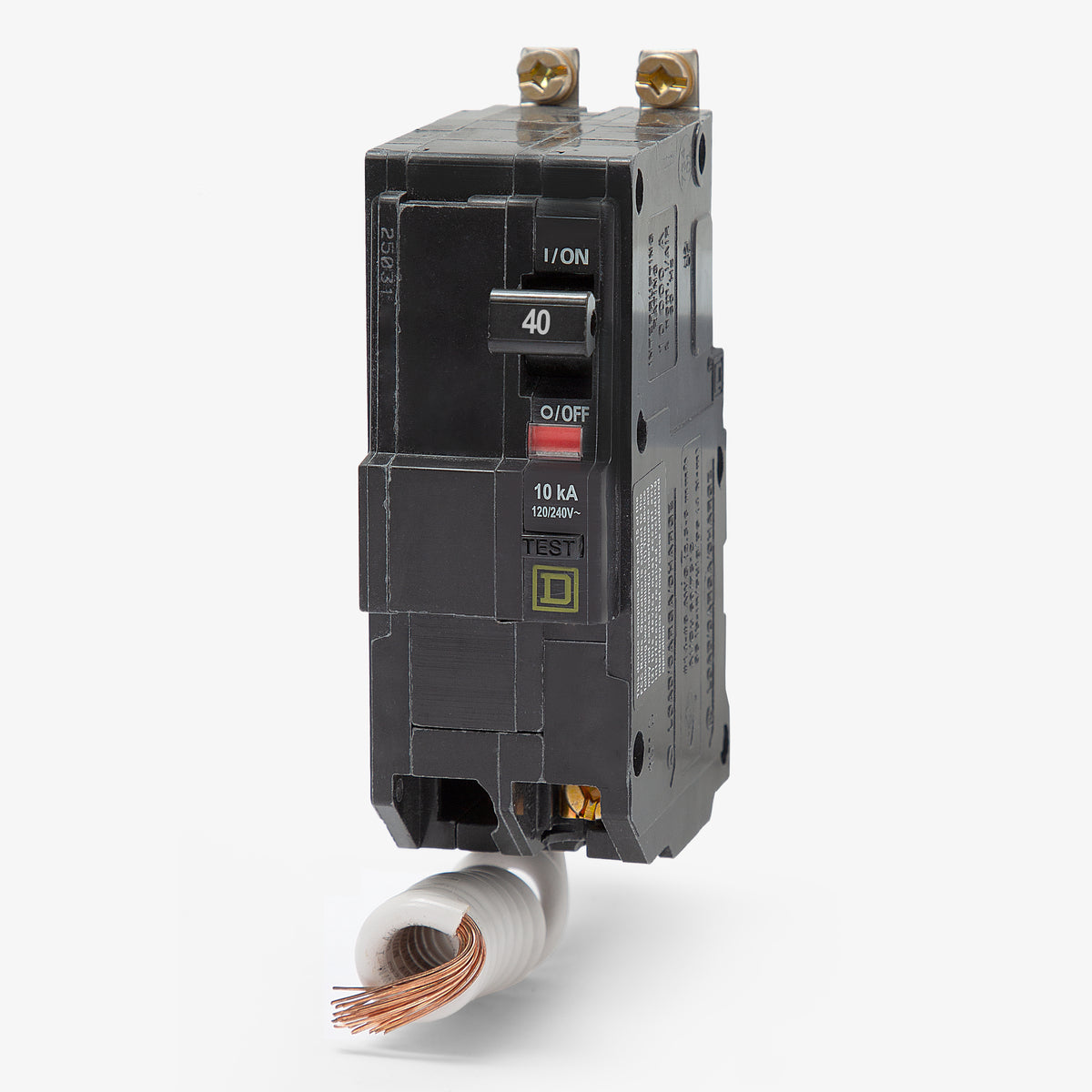

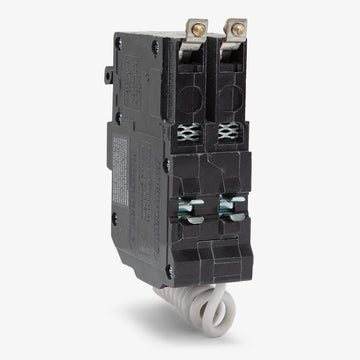

Square D QOB240EPD GFEP Miniature Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Square D
QOB240EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QOB240EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB240EPD - 40A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFEP Miniature Circuit Breaker
25A GFEP Miniature Circuit Breaker
60A GFEP Miniature Circuit Breaker
Description
Rated at 10 kAIC at 120/240VAC, the Square D QOB240EPD delivers two-pole, 40-amp thermal-magnetic protection equipped with a 30mA Class B ground-fault trip. It is specifically designed to protect equipment from damaging low-level ground faults, distinguishing it from standard 5mA personnel devices. The breaker mounts into Square D NQ and NQOD panelboards using a secure bolt-on connection. This 40A version utilizes box lug terminals that accept 14-6 AWG copper wire and includes Visi-Trip.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|

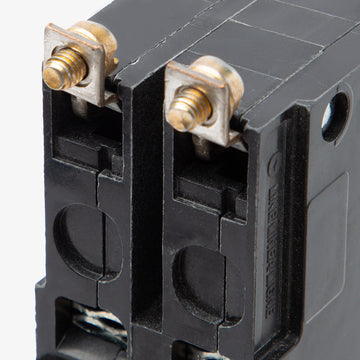

| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersWhich panelboards accept the QOB240EPD circuit breaker?
This bolt-on breaker is specifically designed for installation in Square D NQ and NQOD panelboards. Because it uses a bolt-on connection, it cannot be installed in standard QO load centers that require plug-on breakers.
What is the difference between this EPD breaker and a standard GFCI?
The QOB240EPD is an Equipment Protection Device (EPD) with a 30mA Class B ground-fault trip threshold, designed to protect machinery and equipment from low-level faults without nuisance tripping. Standard GFCI breakers have a highly sensitive 5mA Class A threshold intended for personnel protection.
How much space does the QOB240EPD take up in a panelboard?
This two-pole breaker requires two standard 3/4-inch pole spaces in a compatible NQ or NQOD panelboard.
How is the neutral connected on the QOB240EPD?

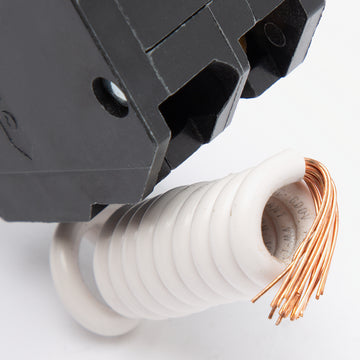

This breaker features a pigtail neutral connection. The attached white pigtail wire must be routed and secured to the neutral bus bar in the panelboard to enable the ground-fault equipment protection circuitry.
Does the QOB240EPD feature a visual trip indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or ground fault, a highly visible red indicator appears to help you quickly identify the tripped breaker in the panel.
