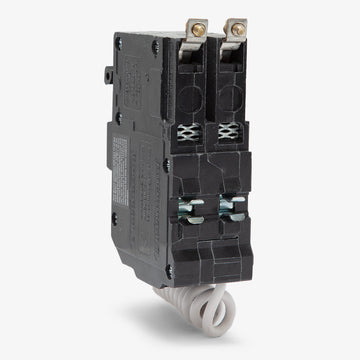

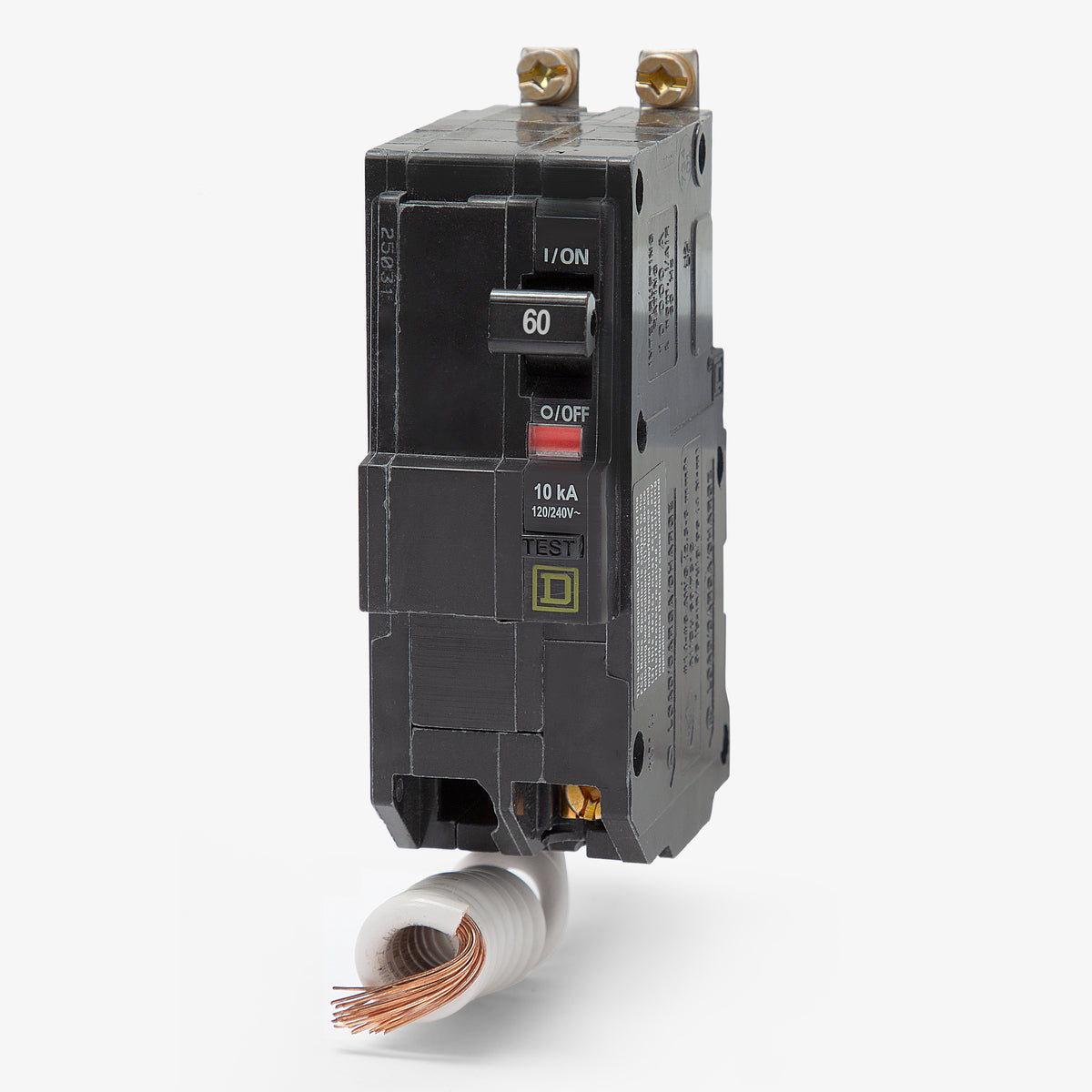

Square D QOB260EPD GFEP Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Square D
QOB260EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QOB260EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB260EPD - 60A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFEP Miniature Circuit Breaker
30A GFEP Miniature Circuit Breaker
25A GFEP Miniature Circuit Breaker
Description
Rated 10 kAIC at 120/240VAC, this 60-amp two-pole breaker provides a 30mA equipment protection threshold. Unlike 5mA personnel GFCIs, this GFEP device prevents nuisance tripping on commercial equipment with inherent minor leakage currents. Manufactured specifically for Square D NQ and NQOD panelboards, the bolt-on mounting ensures a rigid, vibration-resistant connection to the busbar. It features HACR certification for HVAC applications and includes the signature Visi-Trip red indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB260EPD |
| Series | QOB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|

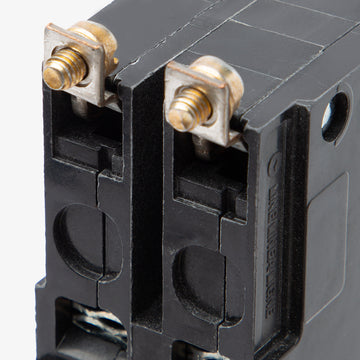

| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 12-4 AWG (Al), 14-6 AWG (Cu) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
5 answersIs the QOB260EPD compatible with standard QO load centers?
No. The QOB260EPD features a bolt-on mounting design intended specifically for Square D NQ and NQOD panelboards. It will not fit in a standard QO load center, which requires plug-on breakers.
What does the EPD designation mean on this circuit breaker?
EPD stands for Equipment Protection Device. It provides a 30mA ground fault trip threshold, also known as Class B protection. This protects commercial equipment from low-level faults without causing nuisance tripping from minor inherent leakage currents.
Can the QOB260EPD be used for personnel ground fault protection?
No. The QOB260EPD is a 30mA Equipment Protection Device designed strictly to protect machinery and equipment. For personnel protection, a 5mA Class A GFCI breaker is required by code.
How is the neutral connection handled on the QOB260EPD?

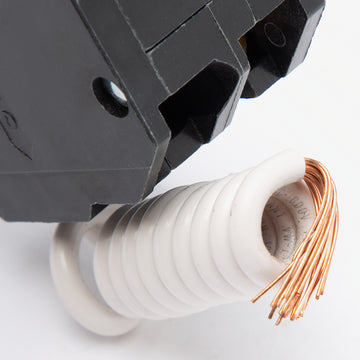

This breaker features a pigtail neutral wire. The pigtail must be connected directly to the neutral bar in your panelboard to power the internal circuitry and ensure proper ground fault monitoring.
What is the plug-on equivalent for the QOB260EPD?
The plug-on equivalent is the Square D QO260EPD. It provides the same 60A capacity and 30mA equipment protection but features a plug-on mounting design for QO load centers.
