Square D QOB310 Miniature Circuit Breaker
- 10A
- 3 Pole
- Bolt-On
Square D
QOB310
Miniature Circuit Breaker
Brand
Square D
SKU
QOB310
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

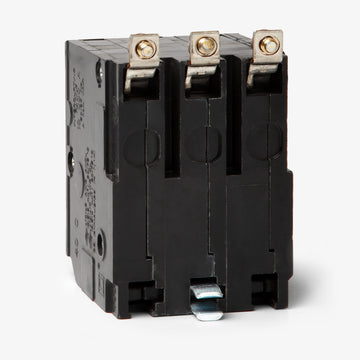

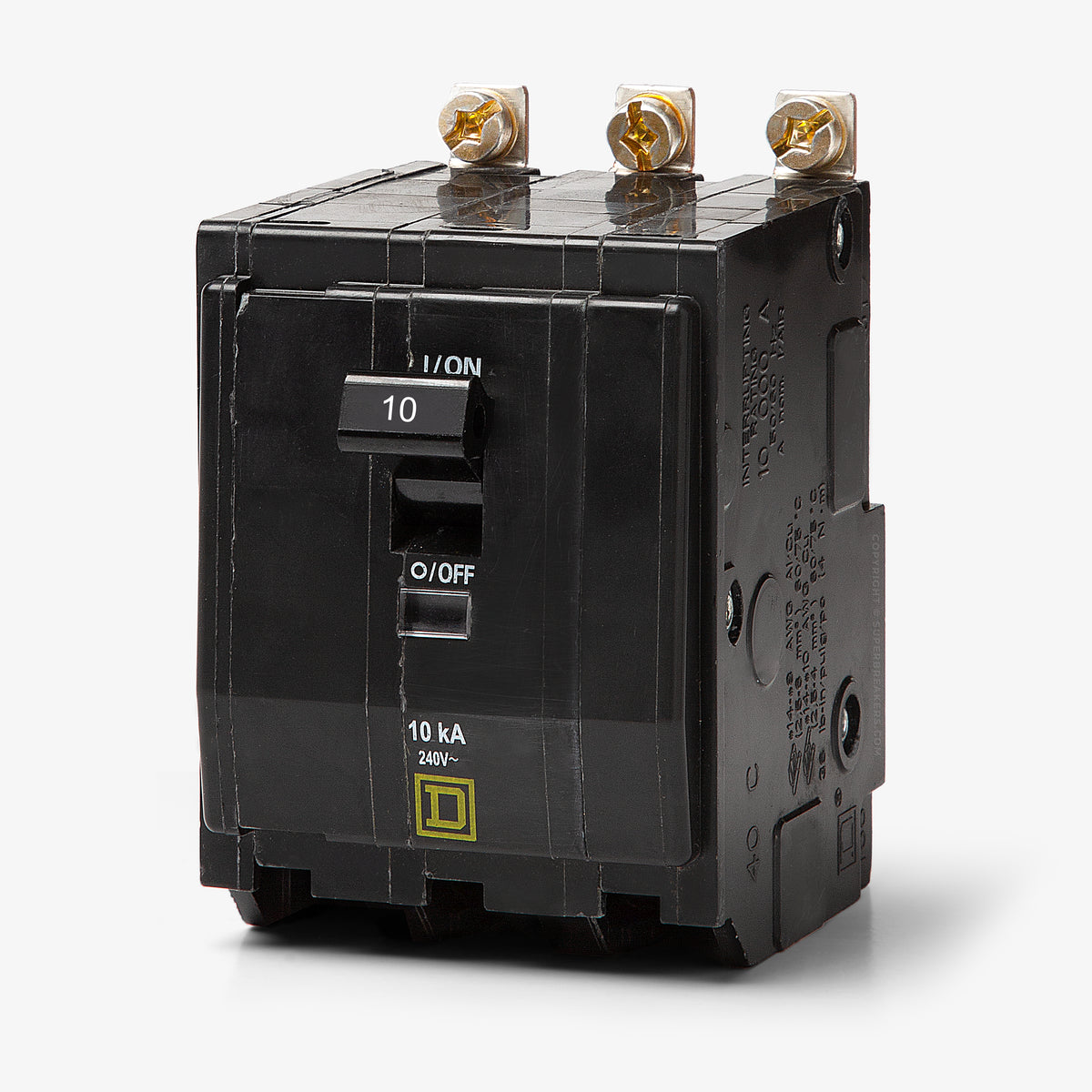

Square D QOB310 - 10A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Engineered for three-phase commercial applications, this 10A miniature circuit breaker provides dependable thermal-magnetic protection against overloads and short circuits. It installs securely into Square D NQ and NQOD panelboards, utilizing a bolt-on mounting configuration to ensure a stable connection under load. Rated for 10kA interrupting capacity at 240V, the unit incorporates the signature Visi-Trip red indicator flag to help facility managers quickly locate tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|

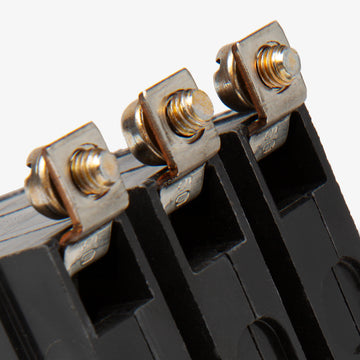

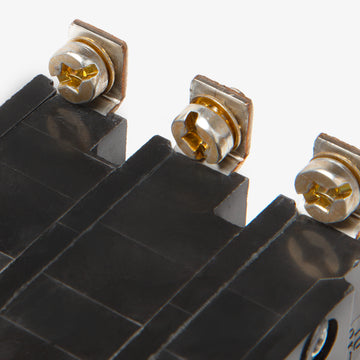

| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, RoHS, UL 489 |
| Approval | ANCE, CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Mercury Free, RoHS Compliant |
Product FAQs
6 answersAre QO and QOB circuit breakers interchangeable?
No. The QOB310 is a bolt-on breaker designed specifically for Square D NQ and NQOD panelboards. Standard QO breakers use a plug-on mounting style for residential and commercial load centers. They cannot be swapped.
Is the QOB310 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection designation.
What is the DC interrupting rating for the QOB310?
When applied on a 48VDC system, this thermal-magnetic circuit breaker has an interrupting rating of 5kAIC.
How can I visually identify if the QOB310 has tripped?
This breaker features Square D Visi-Trip technology. A bright red indicator flag appears in the breaker window when it trips due to an overload or short circuit, allowing for rapid identification in a crowded panelboard.
What type of trip mechanism does the QOB310 use?
It utilizes a fixed thermal-magnetic trip mechanism. The thermal component provides long-time delay protection against overloads, while the magnetic component provides instantaneous protection against short circuits.
Does the QOB310 provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic circuit breaker providing only overload and short-circuit protection. It does not include ground-fault or arc-fault circuit interruption capabilities.
