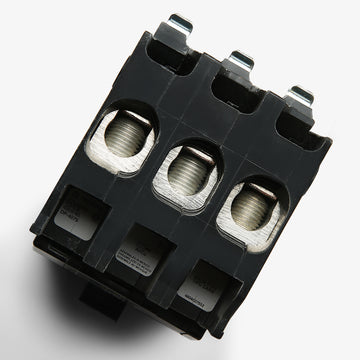

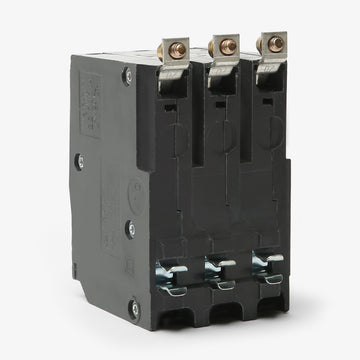

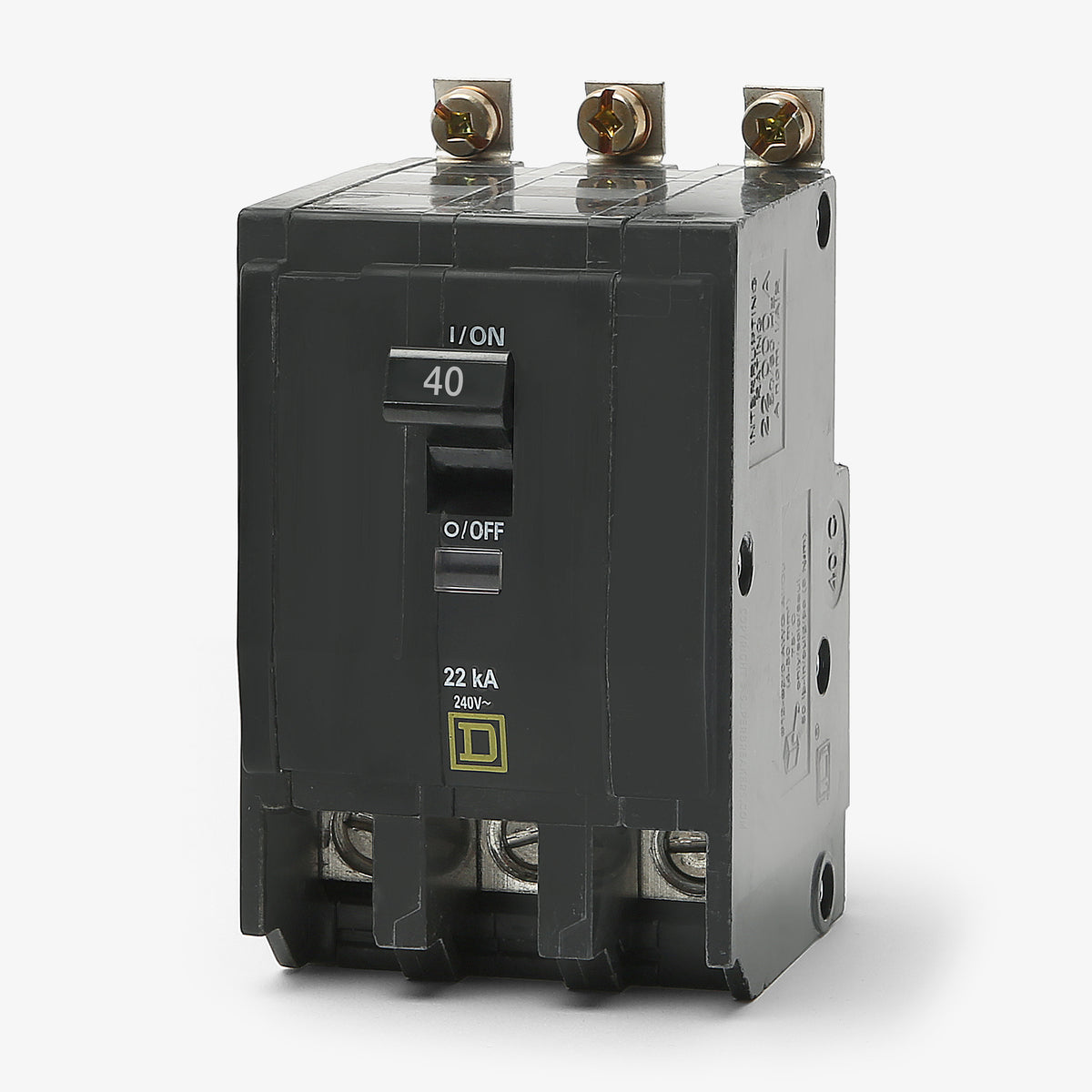

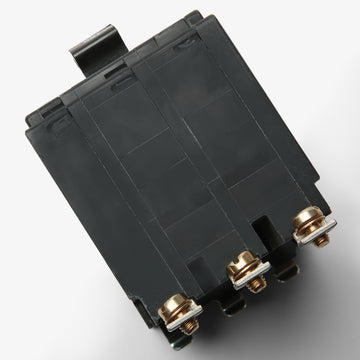

Square D QOB340VH Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Square D
QOB340VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB340VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB340VH - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB340VH - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB340VH |
| Series | QOB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, High Interrupting Capacity |
Quantity
Square D QOB340VH - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB340VH-R |
| Series | QOB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, High Interrupting Capacity |
Similar Items
50A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
Description
Designed for elevated fault current applications, the Square D QOB340VH delivers a high interrupting capacity of 22kAIC at 120/240VAC. This three-pole, 40-amp miniature circuit breaker utilizes thermal-magnetic trip technology to protect commercial and industrial branch circuits. It bolts into Square D NQ and NQOD panelboards, providing a secure connection that resists mechanical vibration.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB340VH |
| Series | QOB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, High Interrupting Capacity |
Product FAQs
5 answersWhat panelboards is the QOB340VH compatible with?
While this bolt-on breaker is compatible with Square D NQ and NQOD panelboards, it cannot be installed in standard QO residential load centers which require plug-on breakers.
What does the VH suffix in the QOB340VH part number indicate?
The VH suffix denotes a Very High interrupting rating. While a standard QOB340 breaker provides a 10 kAIC rating, the QOB340VH is rated for 22 kAIC at 120/240VAC.
How much panel space does this 3-pole breaker require?
Square D QOB circuit breakers feature a compact 0.75-inch width per pole. This 3-pole breaker requires exactly 2.25 inches of continuous mounting space across three slots in your panelboard.
Does this breaker include a tripped-state indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a highly visible red flag appears in the window to help you quickly identify the tripped circuit.
What is the plug-on equivalent for this bolt-on circuit breaker?
If you need a plug-on version of this 40 Amp, 3-pole, 22 kAIC breaker for a standard QO load center, you should use catalog number QO340VH.
