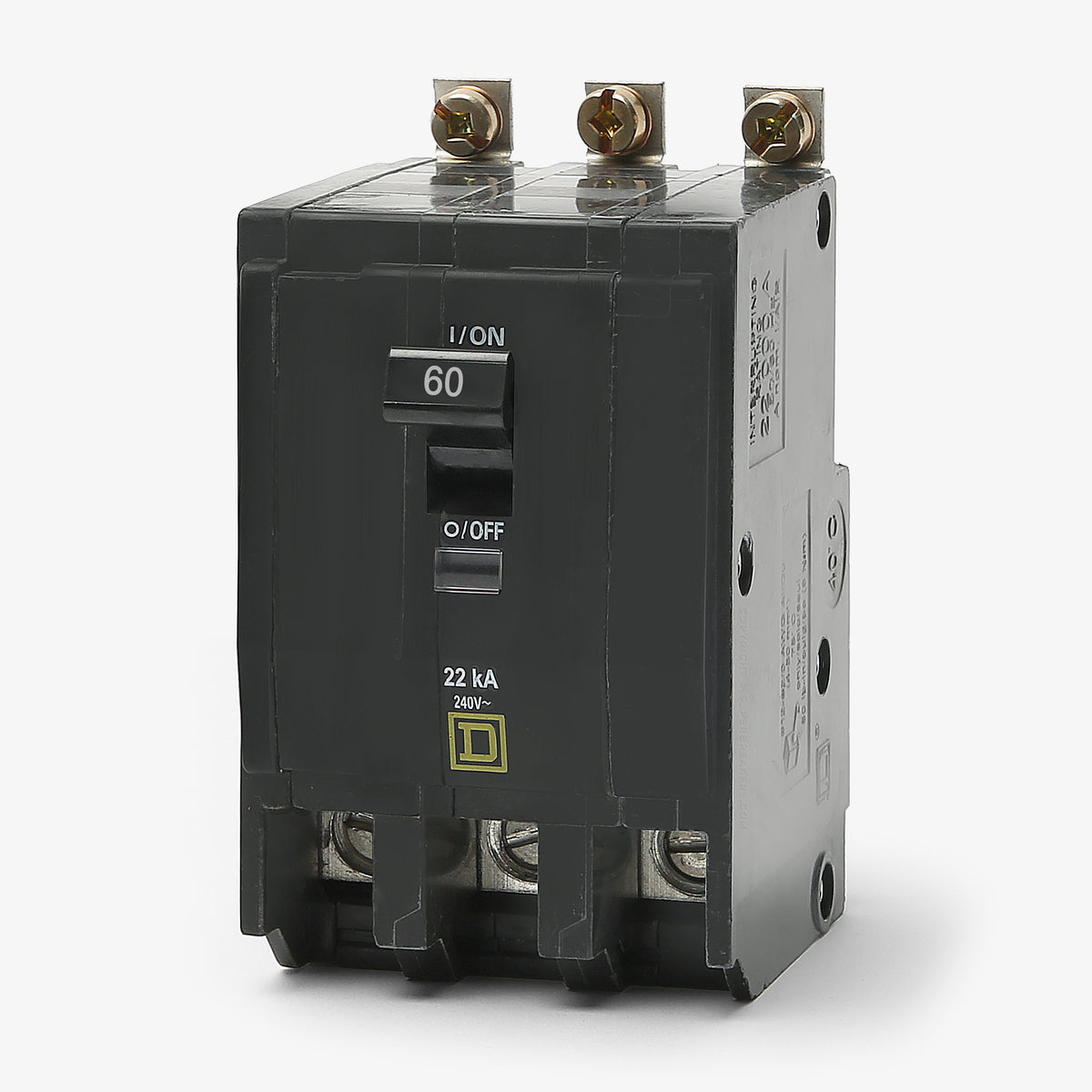

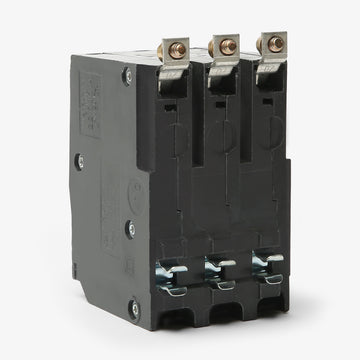

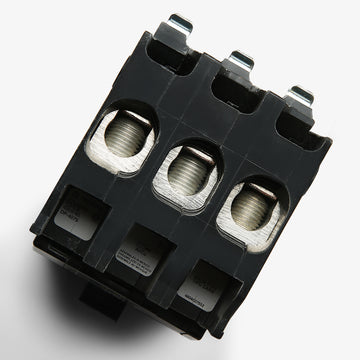

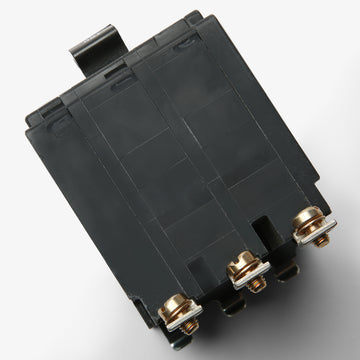

Square D QOB360VH Miniature Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Square D
QOB360VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB360VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB360VH - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB360VH - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB360VH |
| Series | QOB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Mercury Free, RoHS Compliant |
Quantity
Square D QOB360VH - 60A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB360VH-R |
| Series | QOB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Mercury Free, RoHS Compliant |
Similar Items
50A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
Description
Rated for higher fault currents, this 22kAIC miniature circuit breaker provides robust overcurrent protection for commercial and industrial distribution systems. The bolt-on design ensures a rigid, vibration-resistant connection within Square D NQ and NQOD panelboards. Alongside its elevated interrupting capacity, the unit includes a Visi-Trip red indicator flag to help facility managers quickly locate tripped circuits during power outages.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB360VH |
| Series | QOB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Mercury Free, RoHS Compliant |
Product FAQs
5 answersWhich panelboards are compatible with the QOB360VH circuit breaker?
This bolt-on circuit breaker is specifically designed for use in Square D NQ and NQOD series panelboards. It is not compatible with standard QO residential load centers, which require plug-on circuit breakers.
What does the "VH" signify in the QOB360VH catalog number?
The "VH" suffix indicates a high interrupting rating. Standard QO and QOB breakers typically have a 10kAIC rating, whereas the QOB360VH is rated for 22kAIC at 120/240VAC. This provides enhanced short-circuit protection for demanding commercial and industrial systems.
What is the recommended wire lug torque for the QOB360VH?
The box lugs on the QOB360VH accept 8 to 2 AWG aluminum or copper conductors and should be tightened to 50 lb-in (5.6 N-m). Always verify the manufacturer torque label directly on the circuit breaker before finalizing the installation.
What is the difference between the QO360VH and QOB360VH?
Both circuit breakers share the same 60A rating, 3-pole configuration, and 22kAIC interrupting capacity, but they feature different mounting styles. The QO360VH is a plug-on breaker for standard load centers. The QOB360VH is a bolt-on breaker that uses screws to secure the unit directly to the busbar in commercial NQ and NQOD panelboards.
How does the thermal-magnetic trip unit function on this circuit breaker?
The QOB360VH utilizes fixed long-time and instantaneous (LI) trip functions. The thermal component reacts to sustained overloads by heating a bimetallic strip to break the circuit, while the magnetic component responds immediately to high-level short circuits. It also includes the Visi-Trip visual indicator to help electricians quickly identify a tripped breaker in the panel.
