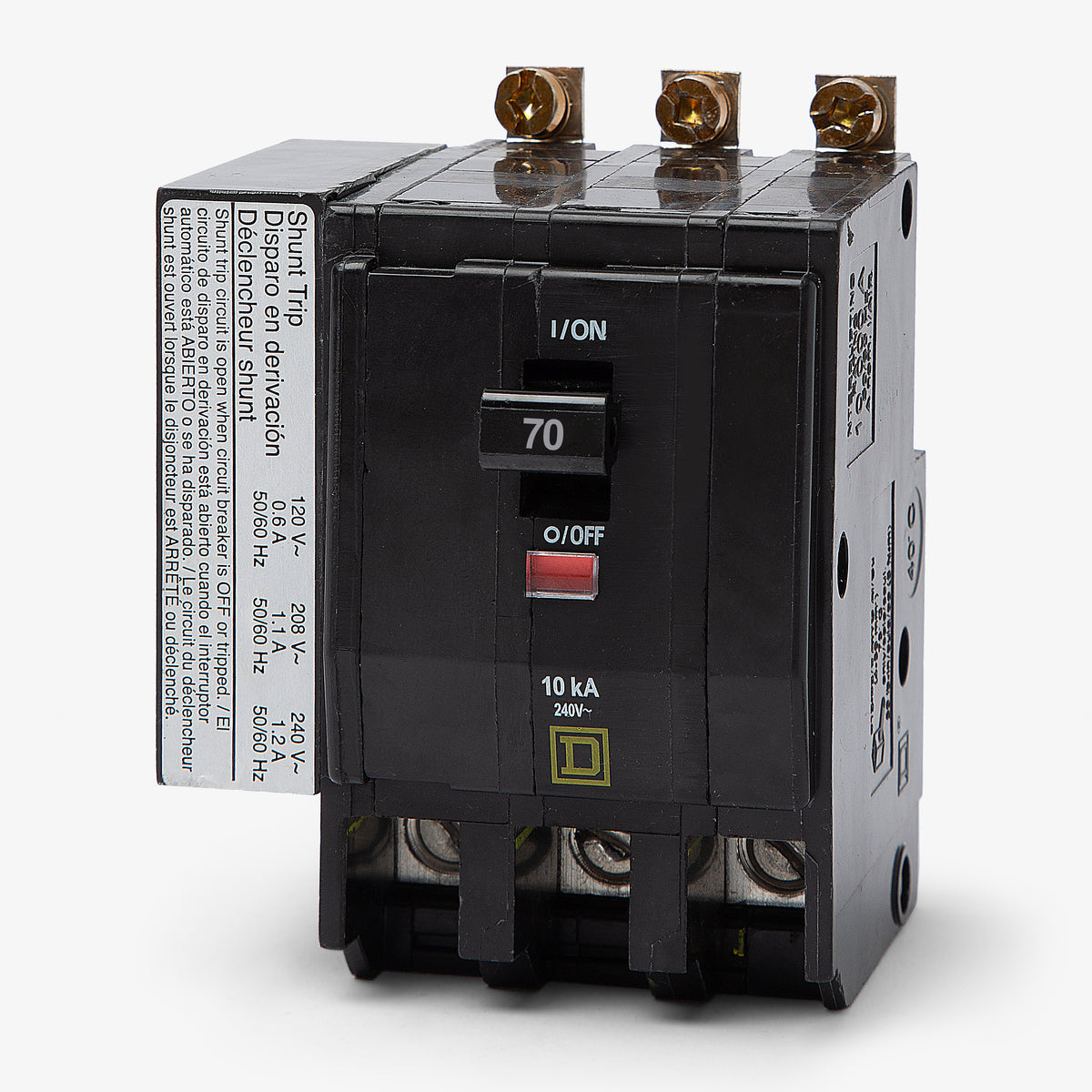

Square D QOB3701021 Miniature Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Square D
QOB3701021
Miniature Circuit Breaker
Brand
Square D
SKU
QOB3701021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3701021 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
Description
Providing advanced control for commercial facilities, this 70A thermal-magnetic breaker includes a factory-installed shunt trip. This permits remote tripping when voltage is applied. Designed for robust power distribution, the device fastens firmly into Square D NQ and NQOD panelboards. The bolt-on design guarantees a secure connection that resists vibration. A highly visible red Visi-Trip indicator simplifies troubleshooting by highlighting faults instantly. It is also HACR certified.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
5 answersCan the QOB3701021 be installed in a standard Square D QO load center?
No. The QOB3701021 features a bolt-on connection designed exclusively for Square D NQ and NQOD panelboards. Standard QO load centers require plug-on breakers.
What does the 1021 suffix indicate on this Square D breaker?
The 1021 suffix means this breaker includes a factory-installed 120/208/240V AC shunt trip accessory. This allows the breaker to be tripped from a remote location using a separate voltage signal.
What control voltage is required to operate the shunt trip on the QOB3701021?
The factory-installed shunt trip requires a control voltage of 120V, 208V, or 240V AC. Applying this voltage to the accessory leads will remotely open the breaker contacts.
Does the QOB3701021 feature a visual trip indicator?
Yes, it includes the signature Square D Visi-Trip indicator. When the breaker trips, a highly visible red flag appears in the window to help you quickly identify the faulted circuit.
Is the QOB3701021 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific certification.
