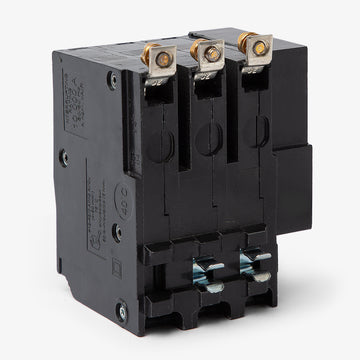

Square D QOB3901021 Miniature Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Square D
QOB3901021
Miniature Circuit Breaker
Brand
Square D
SKU
QOB3901021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3901021 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
Description

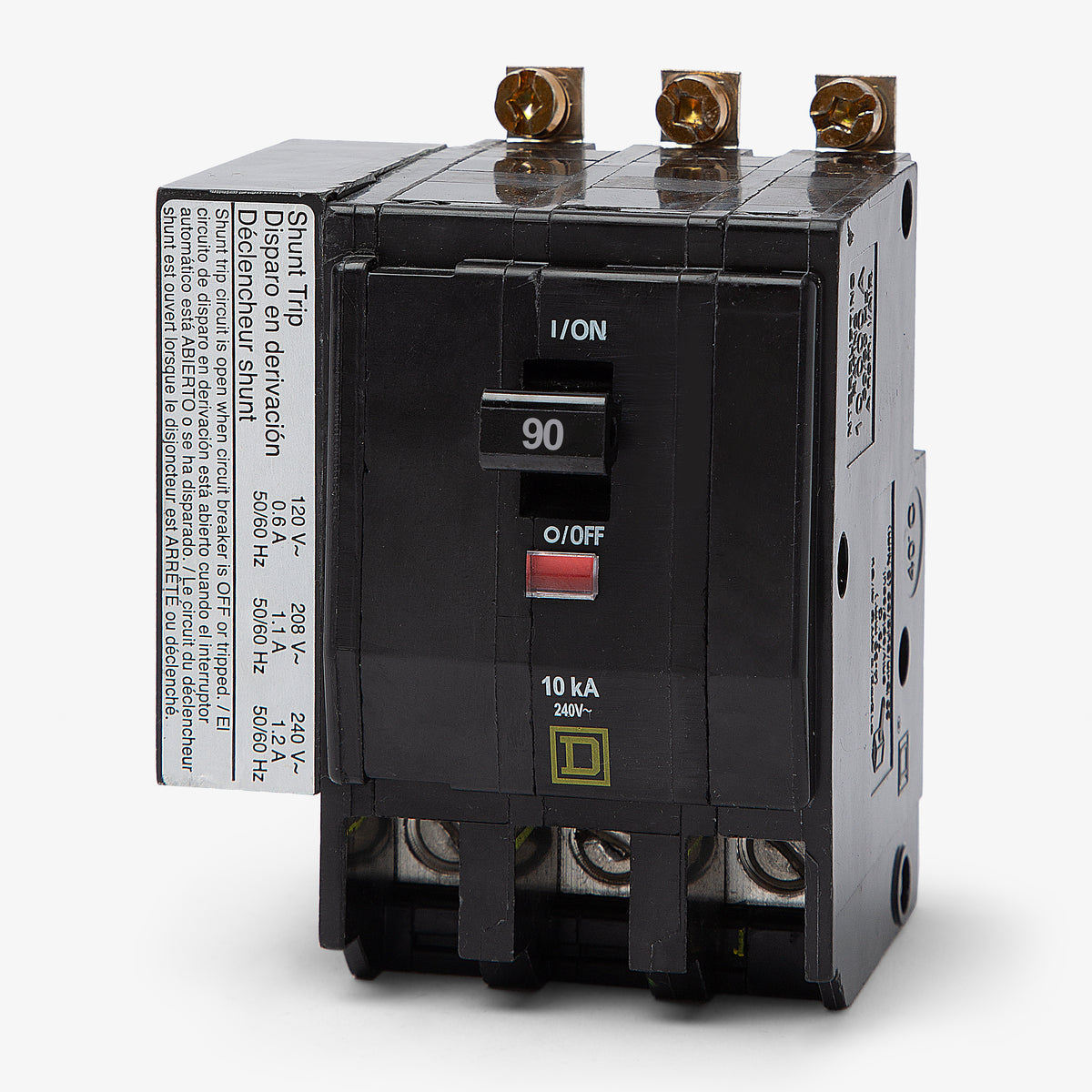

Built for commercial distribution, the Square D QOB3901021 delivers reliable overcurrent protection with remote tripping capabilities. This 3-pole, 90A miniature circuit breaker features a thermal-magnetic trip mechanism and a 10kAIC rating at 240V. Designed for secure installation, it bolts into Square D NQ and NQOD panelboards. The 1021 suffix indicates a factory-installed 120/240VAC shunt trip, allowing the breaker to be opened remotely. It also includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
4 answersWhat does the 1021 suffix mean on the QOB3901021 catalog number?
The 1021 suffix indicates that this breaker includes a factory-installed 120/240VAC shunt trip accessory. This allows the breaker to be tripped remotely using an external control signal.
Which panelboards are compatible with the QOB3901021 circuit breaker?
This bolt-on circuit breaker is designed specifically for use in Square D NQ and NQOD series panelboards. It is not compatible with standard QO load centers, which require plug-on breakers.

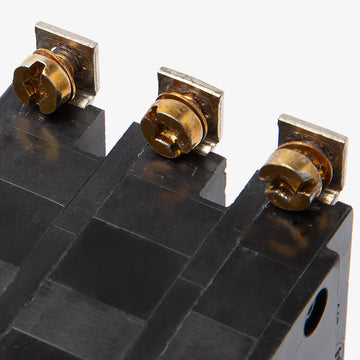

How does the QOB3901021 mount into the panelboard?
It features a bolt-on connection, which secures directly to the bus bar of NQ or NQOD panelboards using screws. This provides a highly reliable connection for commercial and industrial applications.
Does this breaker feature a Visi-Trip indicator?
Yes, it includes the Square D Visi-Trip visual indicator, which displays a highly visible red flag when the breaker has tripped. This makes it easy to identify a faulted circuit in a crowded panel.
