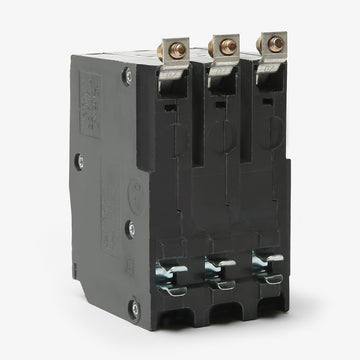

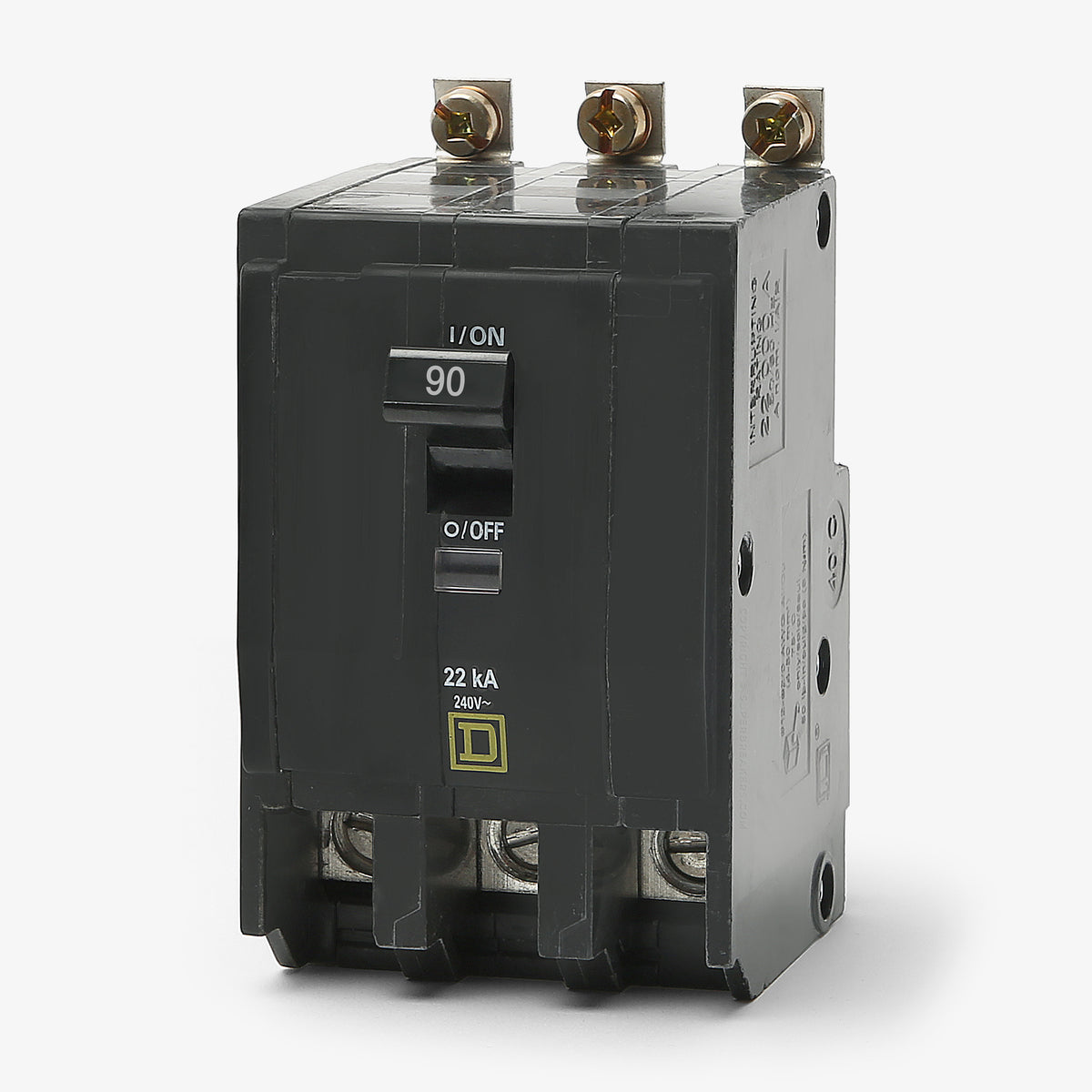

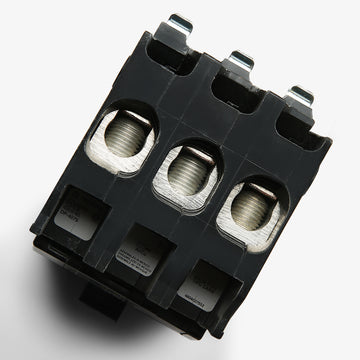

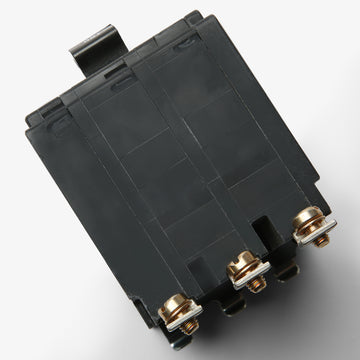

Square D QOB390VH Miniature Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Square D
QOB390VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB390VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB390VH - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB390VH - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB390VH-R |
| Series | QOB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Sold out
Quantity
Square D QOB390VH - 90A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB390VH-R |
| Series | QOB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
80A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
Description
Part of the QO family, the Square D QOB390VH is a 3-pole, 90A miniature circuit breaker engineered for commercial and industrial applications. It utilizes thermal-magnetic trip technology to provide dependable overload and short-circuit protection. This unit bolts firmly into Square D NQ and NQOD panelboards, ensuring a secure connection that resists vibration. The "VH" designation signifies a high interrupting rating of 22kAIC at 240V. It also features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB390VH-R |
| Series | QOB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panelboards are compatible with the QOB390VH?
This bolt-on breaker is designed for use in Square D NQ and NQOD panelboards. It is not compatible with standard QO load centers, which require plug-on breakers.
What does the VH stand for in the QOB390VH catalog number?
The VH indicates a Very High interrupting rating. This breaker provides a 22kA interrupting capacity at 240V, compared to the standard 10kA rating found on standard non-VH models.
Is the Square D QOB390VH HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
What is the recommended tightening torque for the box lugs on the QOB390VH?
The recommended tightening torque for the box lugs is 49.6 lb-in (5.6 N.m). Always verify torque specifications on the breaker label before installation.
How many panel spaces does the QOB390VH require?
As a 3-pole miniature circuit breaker in the QO family, it requires three standard 3/4-inch spaces in the panelboard.
What is the plug-on equivalent to the QOB390VH?
The plug-on equivalent for use in standard QO load centers is the QO390VH.
