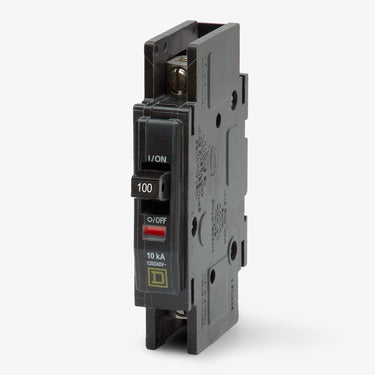

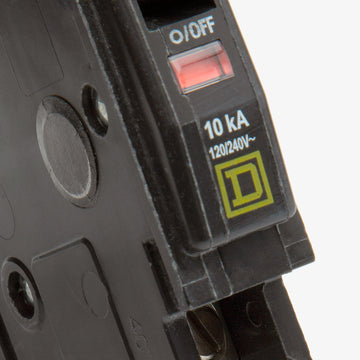

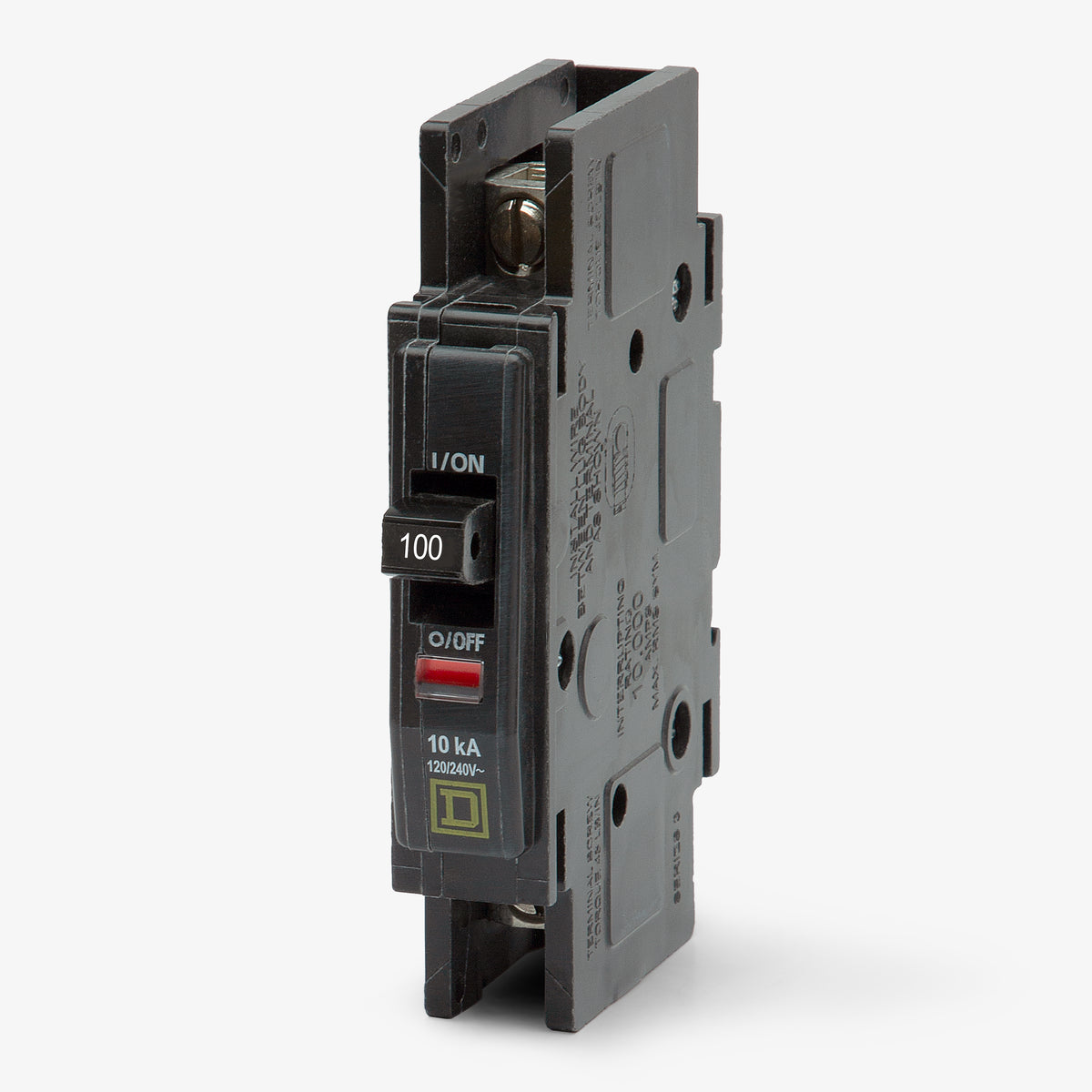

Square D QOU1100 Miniature Circuit Breaker
- 100A
- 1 Pole
- Unit Mount
Square D
QOU1100
Miniature Circuit Breaker
Brand
Square D
SKU
QOU1100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU1100 - 100A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
Rated for 100A, this high-capacity 1-pole miniature circuit breaker provides robust thermal-magnetic protection for demanding commercial and industrial environments. It installs into DIN rail systems, OEM panels, and enclosures using a flexible unit mount configuration. With a 10kAIC rating at 120/240VAC and reversible feed capability, it offers excellent versatility for custom power distribution. The breaker is HACR rated and features a visual trip indicator for easy maintenance.Specifications
| Brand | Square D |
|---|---|
| Series | QOU |
| Amperage | 100A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 60VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 60VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Control Panels, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reversible Feed |
Product FAQs
5 answersCan I install the QOU1100 in a standard QO load center?
No. The QOU1100 is a unit-mount circuit breaker designed for surface or DIN rail mounting. It does not plug into standard QO or QOB busbars and is intended for OEM panels, control panels, and enclosures.
How do I mount the QOU1100 to a DIN rail?
The QOU1100 can be mounted to a standard 35mm DIN rail using a compatible Square D DIN rail mounting adapter. It can also be surface-mounted directly to a backpan using its built-in mounting feet.

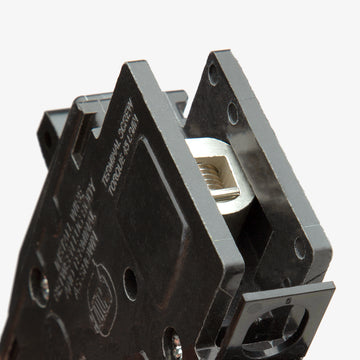

What is the recommended tightening torque for the box lugs on the QOU1100?
The slotted box lugs on the QOU1100 should be torqued to 45 lb-in for 12 AWG to 2/0 AWG aluminum or copper wire.
Can the QOU1100 be reverse-fed?
Yes. Standard QOU circuit breakers, including the QOU1100, do not have line and load markings and are suitable for reverse feeding or back-feeding applications.
Is the QOU1100 HACR rated?
Yes. The QOU1100 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires HACR-type circuit breakers.
