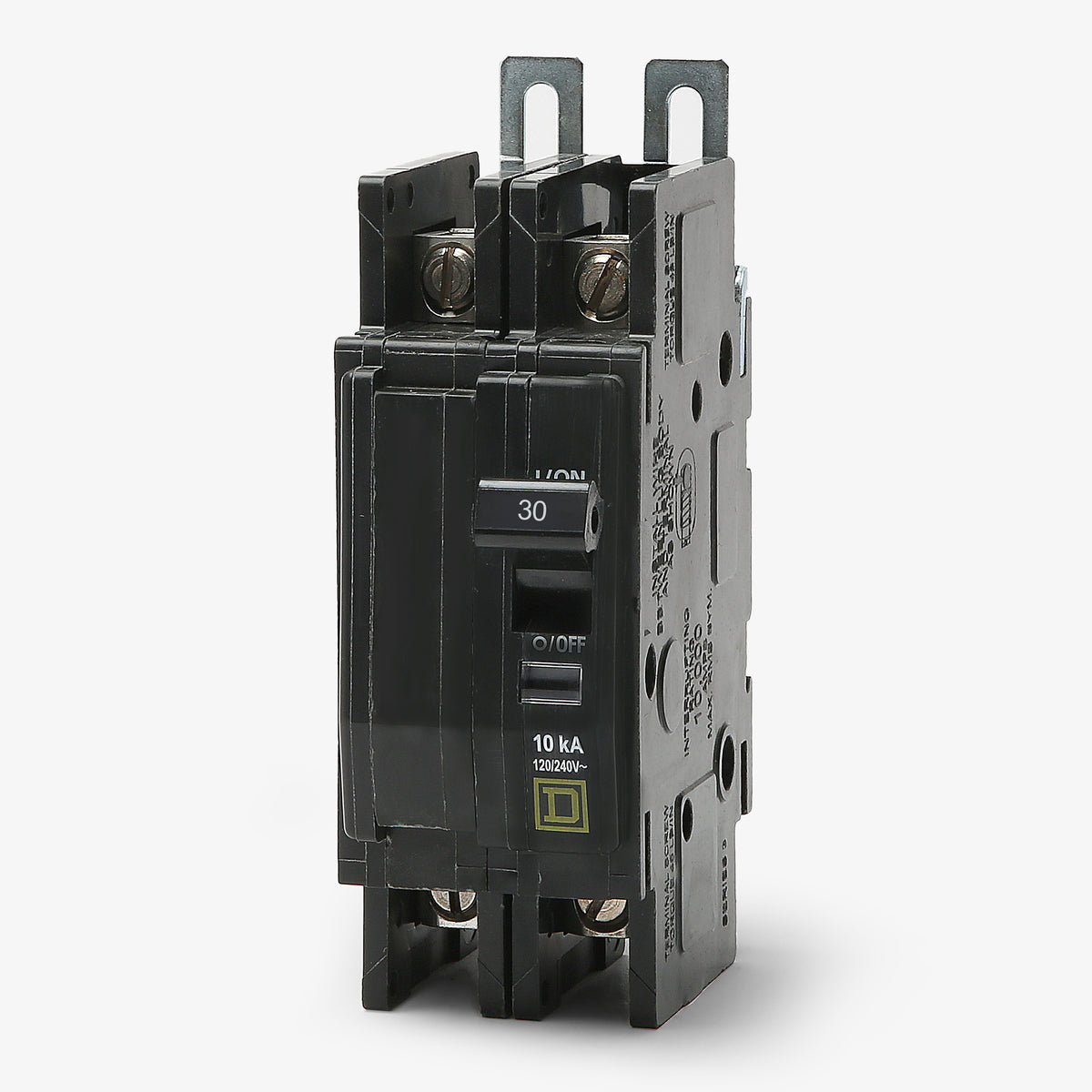

Square D QOU230 Miniature Circuit Breaker
- 30A
- 2 Pole
- Unit Mount
Square D
QOU230
Miniature Circuit Breaker
Brand
Square D
SKU
QOU230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOU230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU230 |
| Series | QOU |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Sold out
Quantity
Square D QOU230 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU230-R |
| Series | QOU |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Similar Items
35A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Engineered for surface or DIN rail mounting, the QOU230 delivers 30 amps of thermal-magnetic protection for residential, commercial, and industrial applications. It installs into OEM enclosures and control panels using standard box lug terminals. Rated for 10kAIC at 120/240VAC, this two-pole unit includes Square D's signature Visi-Trip indicator for rapid fault identification and carries a HACR rating for HVAC equipment compatibility.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU230 |
| Series | QOU |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersCan I install the QOU230 in a standard QO load center?
No. While it is part of the QO family, this is a unit mount breaker intended for control panels, enclosures, and DIN rail applications. It lacks the mounting clips required to plug into a standard residential or commercial load center.

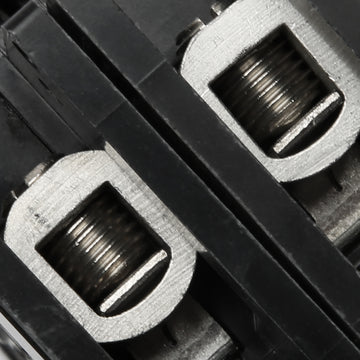

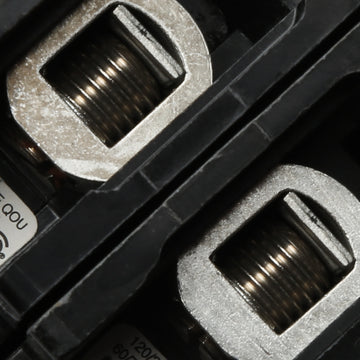

What is the recommended terminal torque for the lug connections?
The slotted box lugs on both the line and load sides require a tightening torque of 45 lb-in. Ensure your 14-2 AWG copper or aluminum wiring is properly torqued to prevent terminal overheating.
Is this circuit breaker ready for DIN rail mounting out of the box?
It is compatible with standard 35mm DIN rails, but you will need to purchase a separate mounting foot bracket. For a two-pole breaker like this model, the correct Square D mounting bracket is catalog number QOUMF2.
Can the QOU230 be back-fed in an OEM panel?
Yes. The internal mechanism and unit mount design allow it to be safely reverse-fed without requiring any special modifications or factory changes.
Is this breaker approved for use with HVAC equipment?
Yes. It carries an HACR rating, certifying it for use as group motor protection in heating, air conditioning, and refrigeration systems.
Does this model include a visual trip indicator?
Yes. It features the Square D Visi-Trip system. If the breaker trips during a fault condition, a bright red flag drops into the handle window to help you quickly identify the tripped circuit in a crowded control panel.
