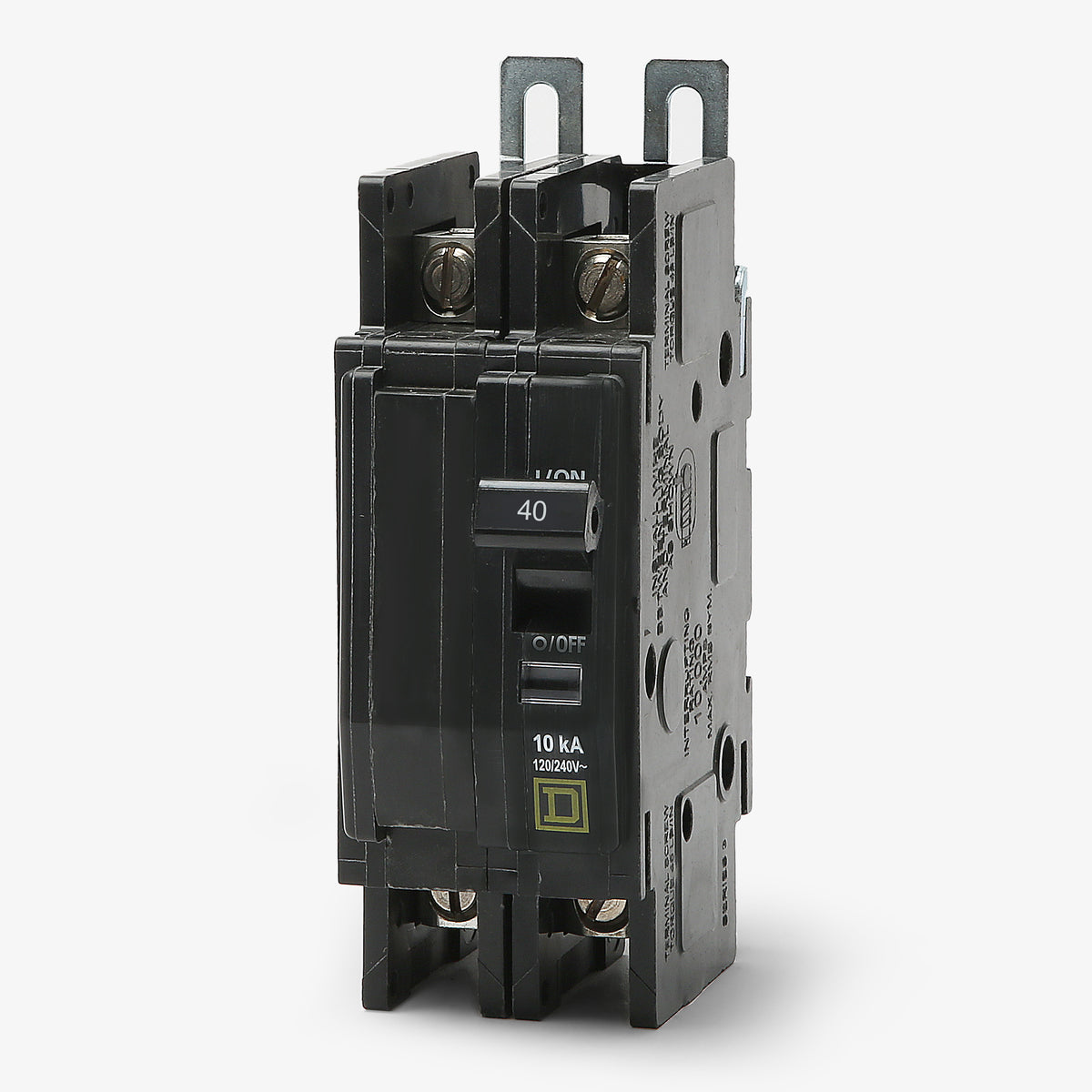

Square D QOU240 Miniature Circuit Breaker
- 40A
- 2 Pole
- Unit Mount
Square D
QOU240
Miniature Circuit Breaker
Brand
Square D
SKU
QOU240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOU240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU240 |
| Series | QOU |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|

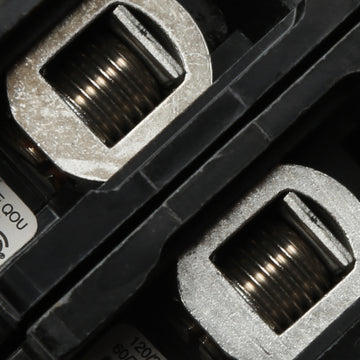

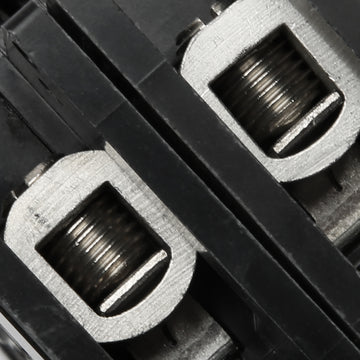

| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Sold out
Quantity
Square D QOU240 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU240-R |
| Series | QOU |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Similar Items
35A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Built for versatile applications, this 40A, two-pole miniature circuit breaker delivers reliable thermal-magnetic protection. It is HACR rated for HVAC equipment. The unit-mount design allows for seamless installation into OEM panels, enclosures, and DIN rail systems. Reversible box lugs accept 14-2 AWG wiring. With a 10kAIC rating at 120/240VAC, it safely interrupts faults. The Visi-Trip window shows a red indicator when tripped, helping users quickly restore power.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU240 |
| Series | QOU |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
5 answersCan I install the QOU240 in a standard Square D QO load center?
No. While it is part of the QO family, this is a unit-mount circuit breaker built for OEM panels, DIN rails, and standalone enclosures. Standard QO load centers require plug-on style breakers.
How do you mount this miniature circuit breaker?
It can be surface or flush mounted directly to a backpan using its built-in mounting feet, or it can be snapped onto a standard 35mm DIN rail using compatible DIN rail adapter clips.
What is the required tightening torque for the terminals?
The manufacturer specifies a tightening torque of 45 lb-in (5.08 N.m) for both the line and load side box lugs when using 14-2 AWG aluminum or copper wire.
Is the QOU240 approved for use with HVAC equipment?
Yes, it is HACR rated, meaning it is specifically approved for the demands of heating, air conditioning, and refrigeration equipment. It also carries a Switching Duty (SWD) rating.
Does this breaker provide a visual tripped indication?
Yes, it features the Square D Visi-Trip indicator. A bright red flag appears in the breaker window when it trips, allowing personnel to rapidly identify the faulted circuit.
