Square D QO230VH Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Square D
QO230VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO230VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

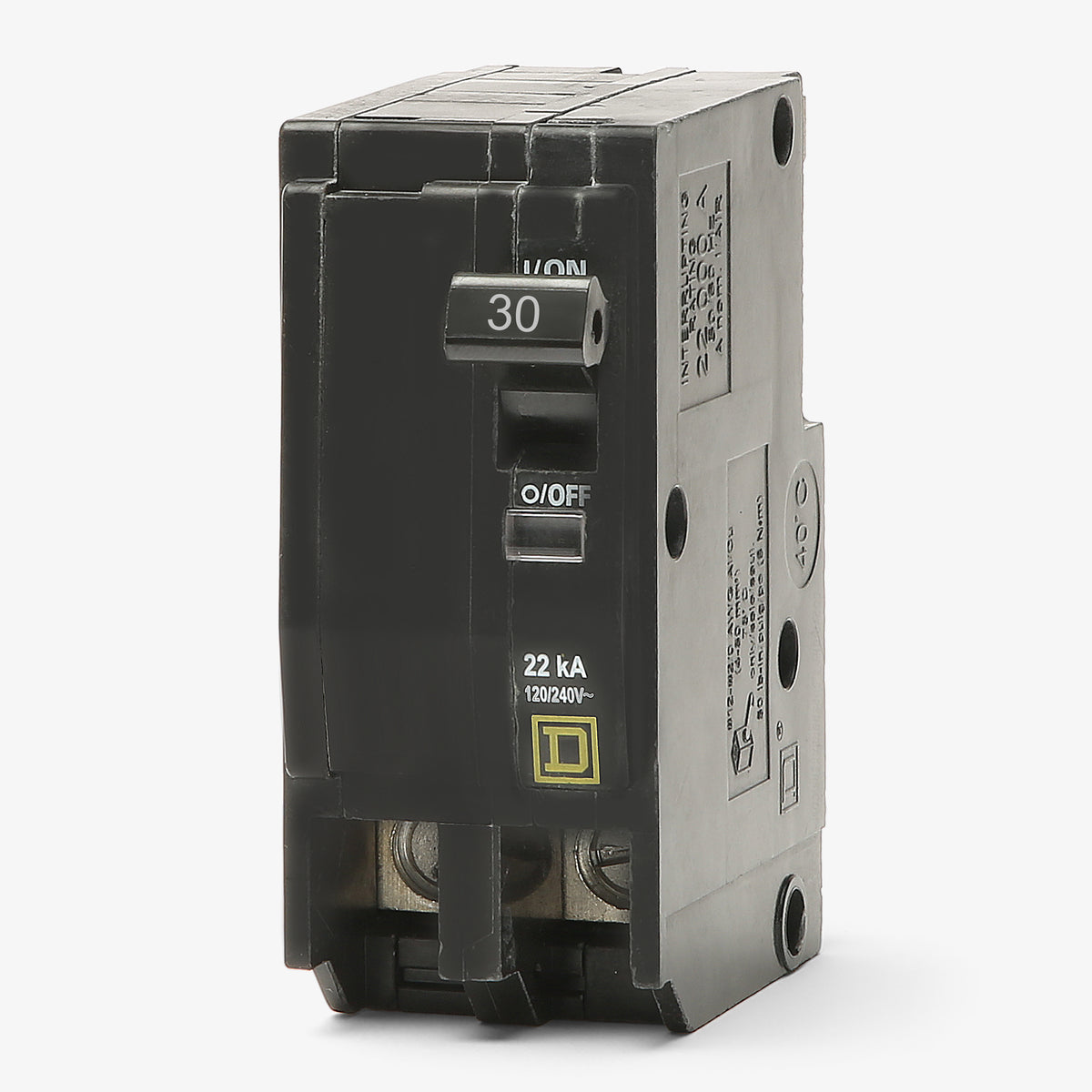

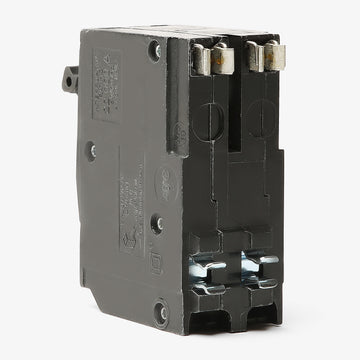

Square D QO230VH - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
Description
Engineered for elevated fault current environments, this 30-ampere thermal-magnetic device delivers reliable overcurrent protection. It installs into standard Square D QO load centers and NQ commercial panelboards without requiring specialized hardware. The integrated Visi-Trip indicator provides immediate visual confirmation during a tripped state, while the 22kAIC rating ensures compliance with stricter commercial specifications and demanding residential applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO230VH |
| Series | QO |
| Amperage | 30A |
| Poles | 2 |

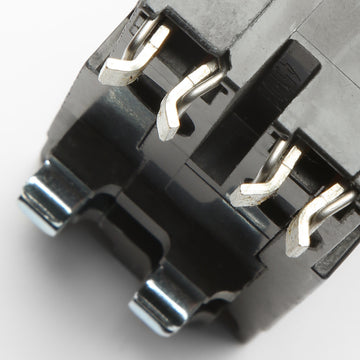

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|

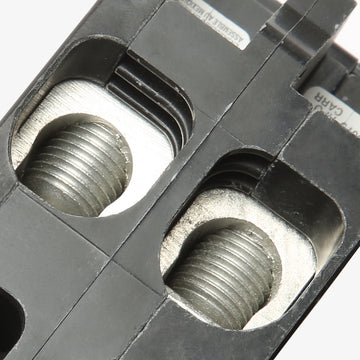

| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
5 answersCan I install the QO230VH in a Square D Homeline panel?
No. QO series breakers are not interchangeable with Homeline panels. This breaker is designed exclusively for compatible QO load centers and NQ panelboards.
What does the VH designation mean in the QO230VH part number?
The VH indicates a very high interrupting rating. While a standard QO230 has a 10kA rating, the QO230VH is rated for 22kA at 120/240VAC, making it suitable for environments with higher available fault currents.
Can the QO230VH replace a standard QO230 circuit breaker?
Yes. The QO230VH shares the exact physical dimensions and plug-on mounting style as the standard QO230. It can be used as a direct replacement or upgrade when a 22kA interrupting rating is required.
Is the QO230VH breaker HACR rated?
Yes, this breaker is HACR rated. It is approved for branch circuit protection of heating, air conditioning, and refrigeration equipment.
Does the QO230VH include a visual trip indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a red flag appears in the indicator window to help quickly identify the tripped breaker in the panel.
