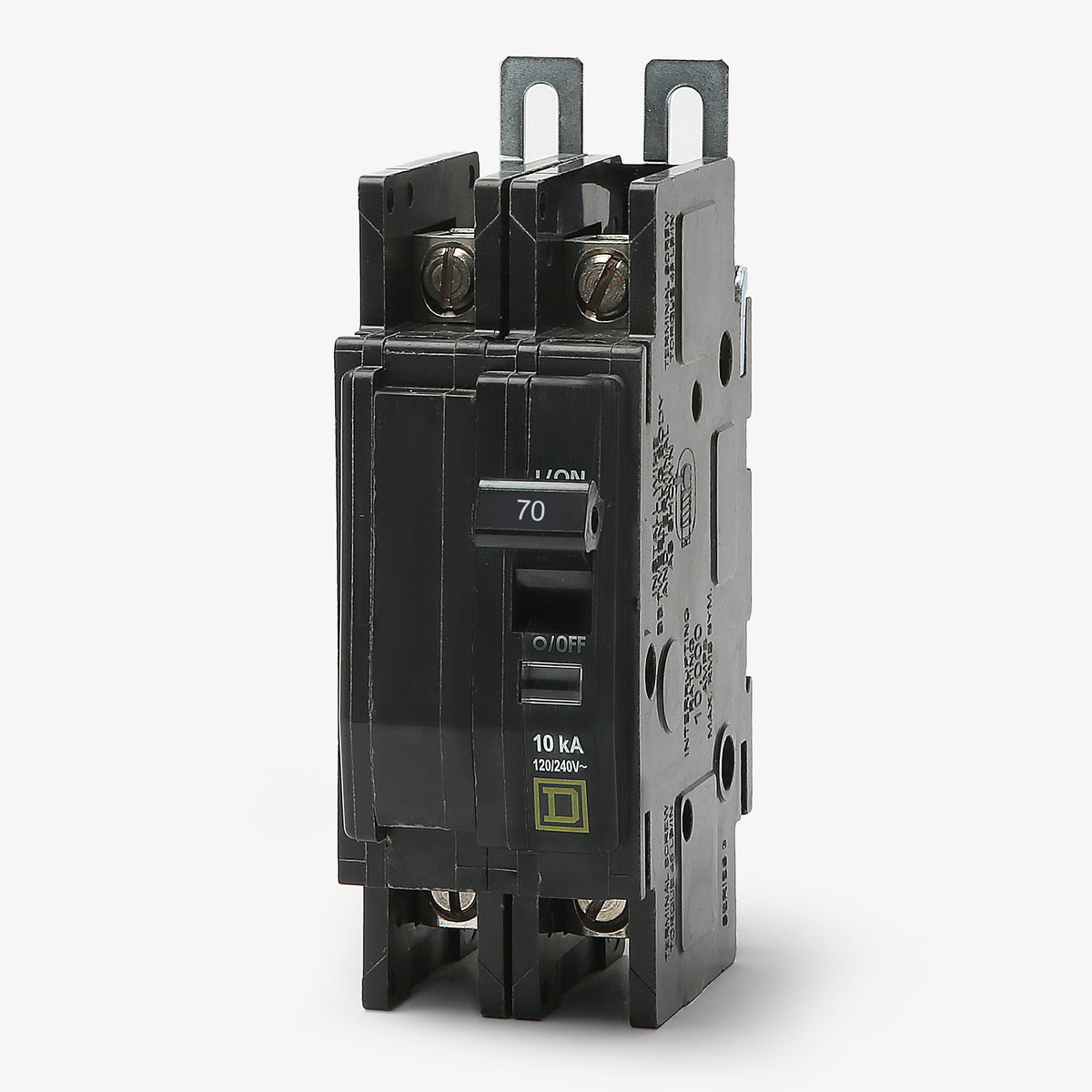

Square D QOU270 Miniature Circuit Breaker
- 70A
- 2 Pole
- Unit Mount
Square D
QOU270
Miniature Circuit Breaker
Brand
Square D
SKU
QOU270
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOU270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU270 |
| Series | QOU |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Sold out
Quantity
Square D QOU270 - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU270-R |
| Series | QOU |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Similar Items
60A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
Description
Part of the QOU series by Square D, this 70A, two-pole miniature circuit breaker is designed for residential, commercial, and industrial applications. It provides robust thermal-magnetic protection for branch circuits and equipment. The unit-mount design allows it to install onto standard 35mm DIN rails, surface mounts, or OEM panels. It accepts 14-2 AWG aluminum or copper wiring via standard box lugs. Featuring a 10kAIC rating at 120/240VAC, it includes the signature Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU270 |
| Series | QOU |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
8 answersIs this breaker suitable for reverse feeding?

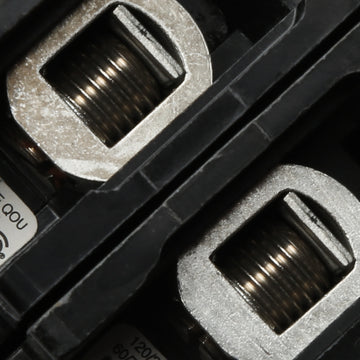

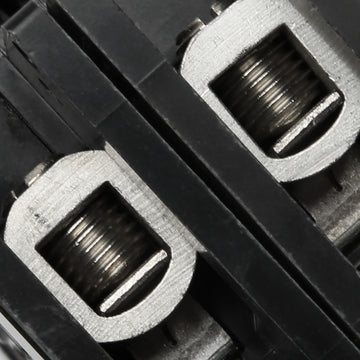

Yes, the Square D QOU270 features field-reversible line and load box lugs, making it suitable for reverse-feed and back-feed applications in OEM and control panels.
What is the recommended tightening torque for the wire terminals?
The slotted box lugs on both the line and load sides should be torqued to 45 lb-in when using 14-2 AWG copper or aluminum wire.
Will the QOU270 install in a standard Square D QO load center?
No. While they share similar internal mechanisms, QOU breakers are independent unit-mount devices designed for OEM panels and enclosures. They do not snap onto QO busbars or bolt onto QOB panelboards.
How does a QOU breaker mount inside an enclosure?
QOU breakers are versatile unit-mount devices. They can be surface-mounted, flush-mounted, or secured to a symmetrical 35mm DIN rail using the correct mounting hardware.
What accessory is needed to mount this 2-pole breaker on a DIN rail?
To mount a 2-pole QOU breaker like the QOU270 onto a standard 35mm DIN rail system, you will need a QOUMF2 mounting foot bracket.
How can I visually identify if the QOU270 has tripped?
This model features the built-in Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a highly visible red flag appears in the indicator window.
Does this breaker feature a high magnetic trip curve?
No, the standard QOU270 features a standard fixed thermal-magnetic trip curve. Applications requiring high initial inrush tolerances require breakers with an HM catalog suffix.
Can the QOU270 be used in DC applications?
Yes. In addition to its standard AC ratings, this breaker is UL Listed for use in 48VDC control and power systems with a 5 kAIC interrupting capacity.
