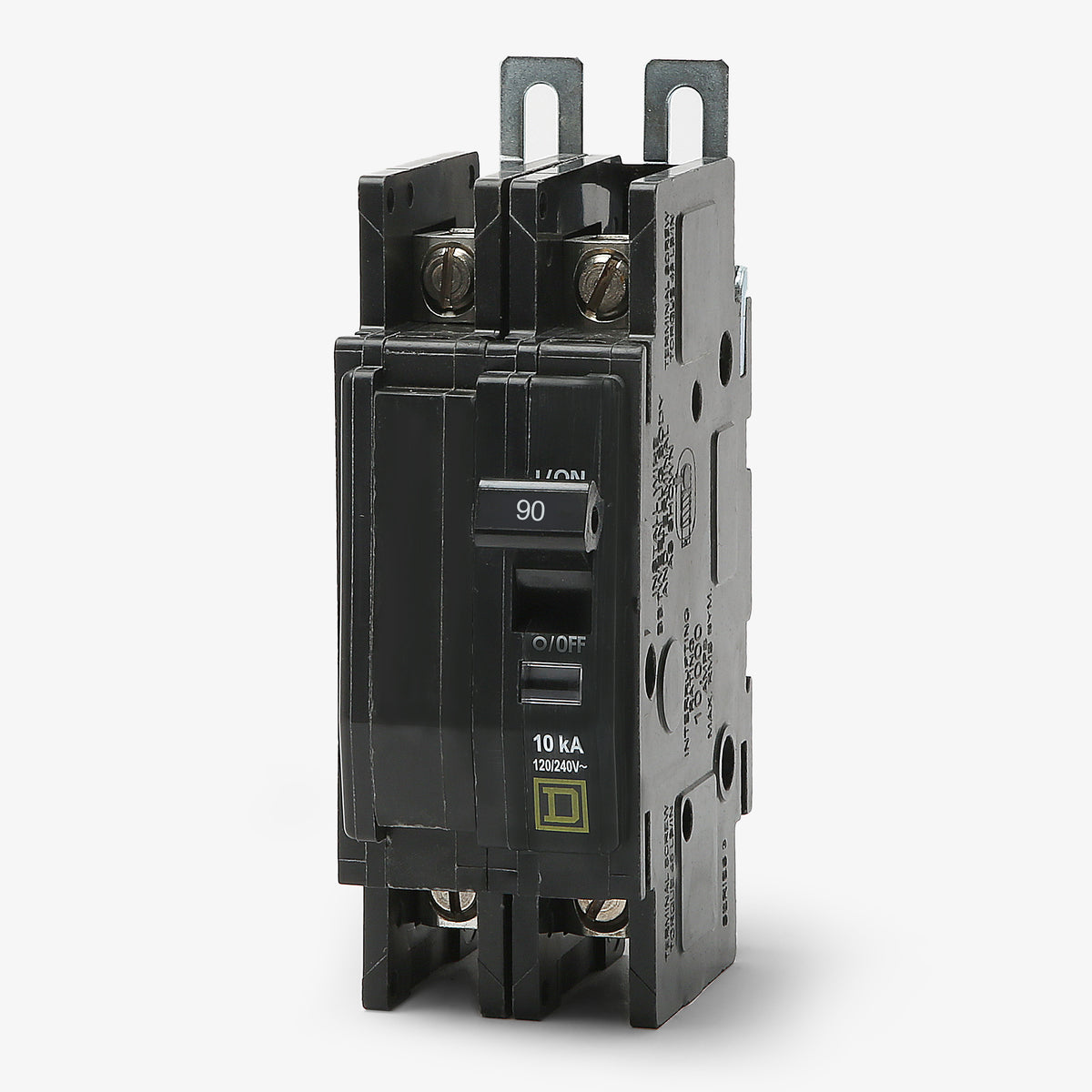

Square D QOU290 Miniature Circuit Breaker
- 90A
- 2 Pole
- Unit Mount
Square D
QOU290
Miniature Circuit Breaker
Brand
Square D
SKU
QOU290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOU290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU290 |
| Series | QOU |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 60VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 60VDC |
| Frame Type | QOU |
|---|---|

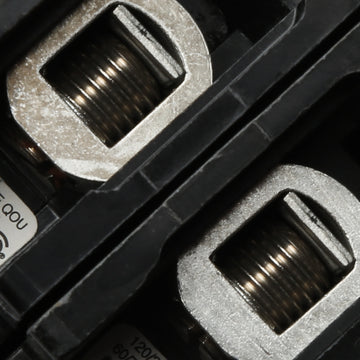

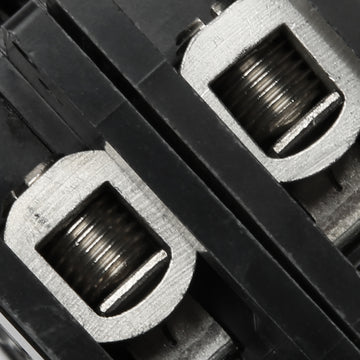

| Terminal Type | Box Lugs |
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, RoHS, UL |
| Temp Rating | 40C |
Sold out
Quantity
Square D QOU290 - 90A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU290-R |
| Series | QOU |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 60VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 60VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, RoHS, UL |
| Temp Rating | 40C |
Similar Items
80A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Manufactured by Square D, the QOU290 unit-mount miniature circuit breaker provides dependable overcurrent protection. This 90A device is commonly utilized in OEM equipment and custom control panels. Designed for adaptability, it mounts onto standard DIN rails or surface brackets. The breaker features reversible box lugs accepting 12-2/0 AWG wiring, allowing feed-through connections. Rated 10 kAIC at 120/240VAC, it includes a Visi-Trip indicator for easy diagnostics.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU290 |
| Series | QOU |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 60VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 60VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, RoHS, UL |
| Temp Rating | 40C |
Product FAQs
5 answersCan the QOU290 be mounted on a standard DIN rail?
Yes, QOU series breakers can be DIN rail-mounted using a standard 35mm symmetrical DIN rail. They can also be surface-mounted or flush-mounted depending on your enclosure requirements.
Are the line and load lugs on the QOU290 reversible?
No. Unlike lower-amperage QOU breakers, the 80A to 125A models (including the 90A QOU290) feature non-reversible line and load lugs. The breaker must be wired with the correct line and load orientation.
Is the QOU290 suitable for HVAC equipment?
Yes, this breaker is UL Listed as HACR type, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Is there a 22kAIC version of this 90A QOU breaker?
Yes, if your application requires a higher interrupting rating, you can use the QOU290VH. The VH version provides 22kAIC at 120/240VAC compared to the standard 10kAIC of the QOU290.
Can I add a shunt trip to the QOU290?
Yes, QOU circuit breakers accept factory-installed electrical accessories like shunt trips and auxiliary switches. Note that adding these accessories will require an additional pole space in your panel or enclosure.
